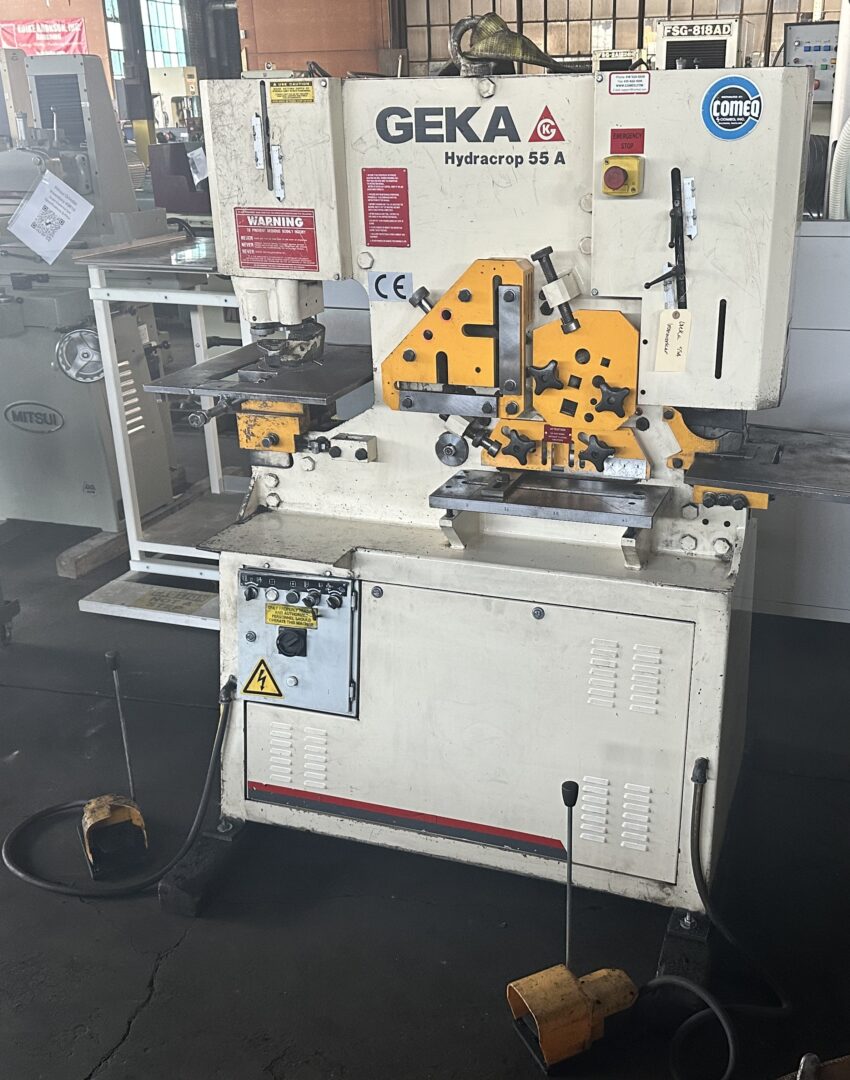

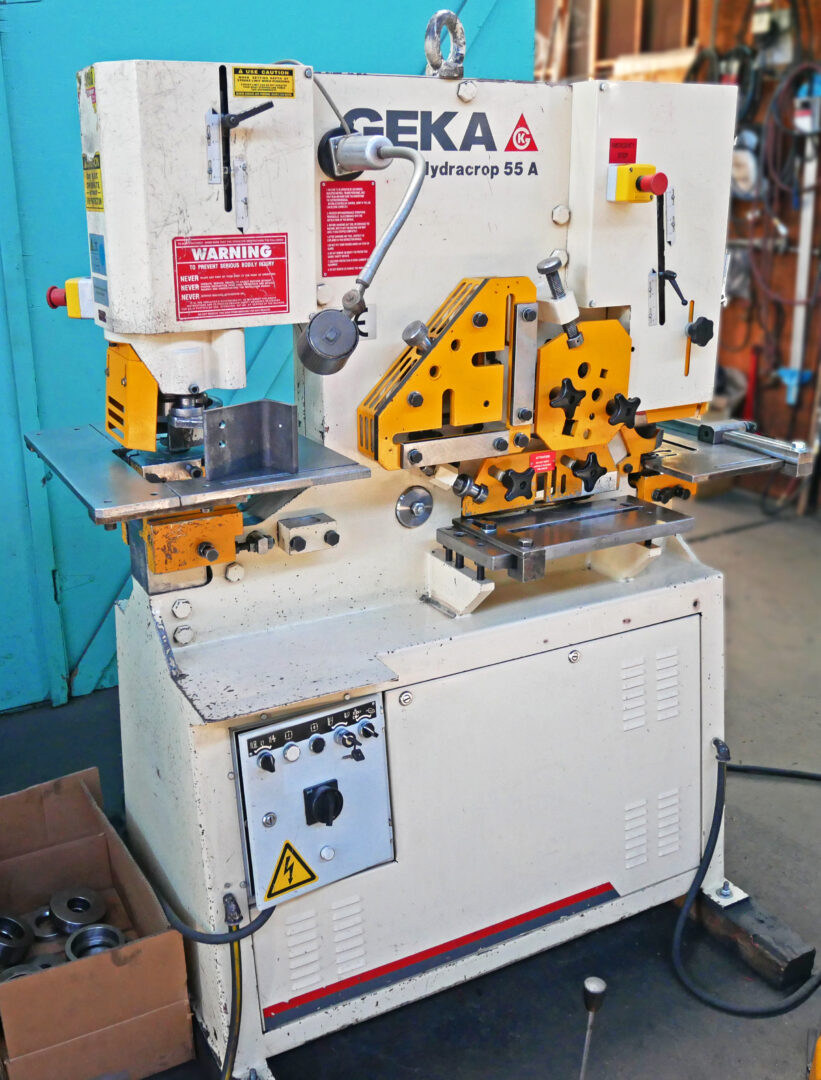

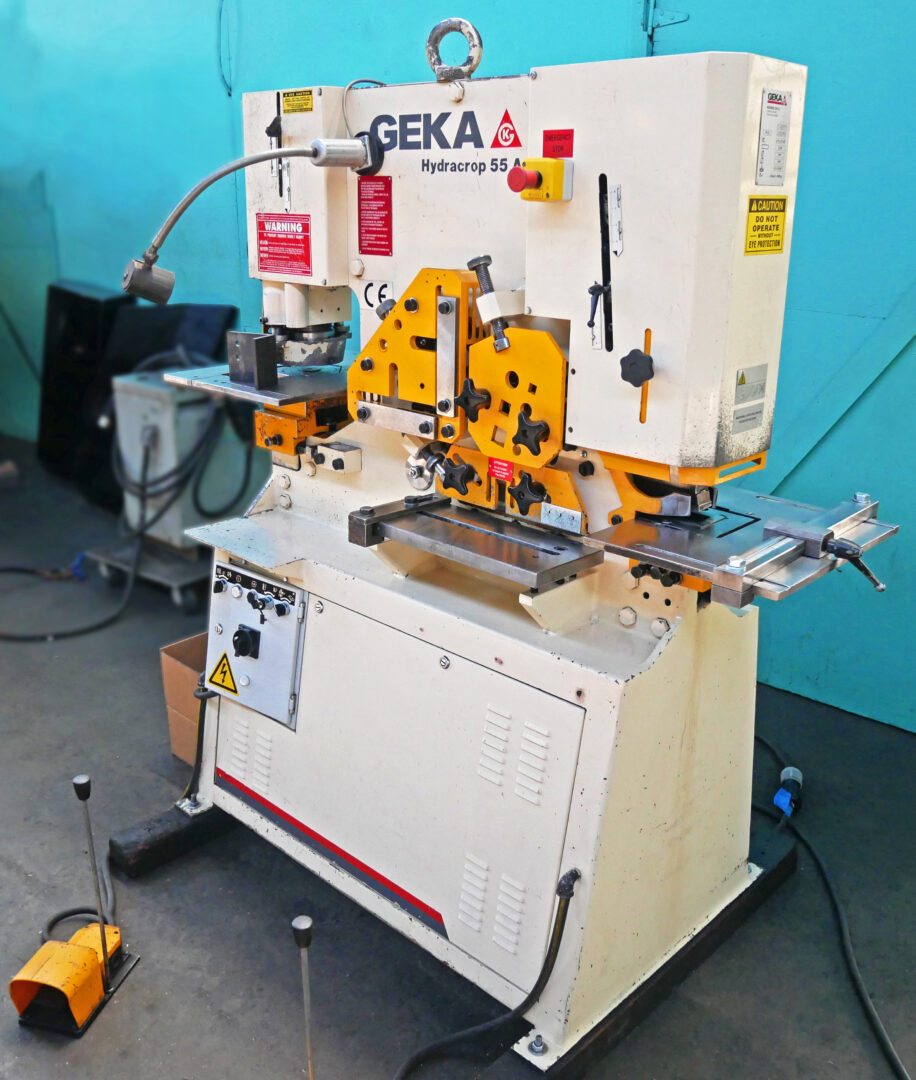

Geka 55 Ton Hydraulic Ironworker, Hydracrop 55 A
Inventory # 10104
Model: Hydracrop 55 A

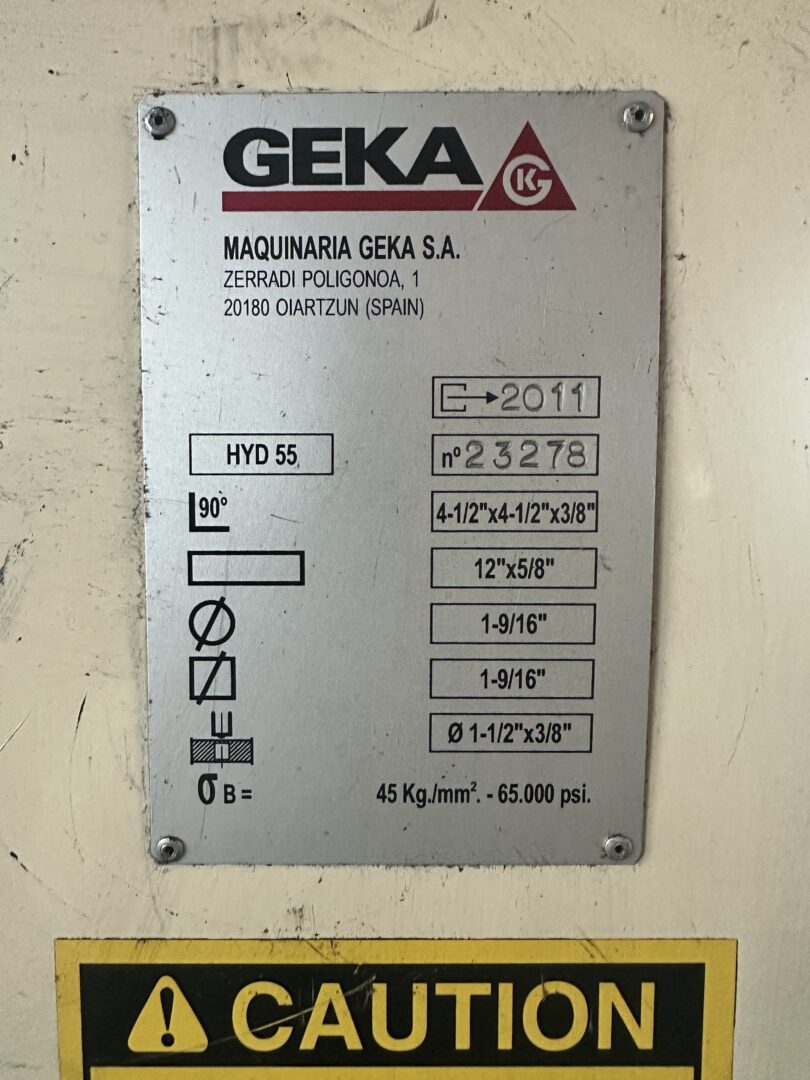

S/N: 23278 “2011”
Specifications:
Punching Power: 55 Tons
Max. Punching Capacity: Ø 1 1/2″ x 3/8″
Angle Shearing Capacity: 4 1/2″ x 4 1/2″ x 3/8″
Flats Shearing Capacity: 12″ x 5/8″
Square/Round Bars Shearing Capacity: 1 9/16″
Rectangular Notching Capacity: 1 1/2″ x 3/8″
Motor: 220v / 3ph
Standard Features:

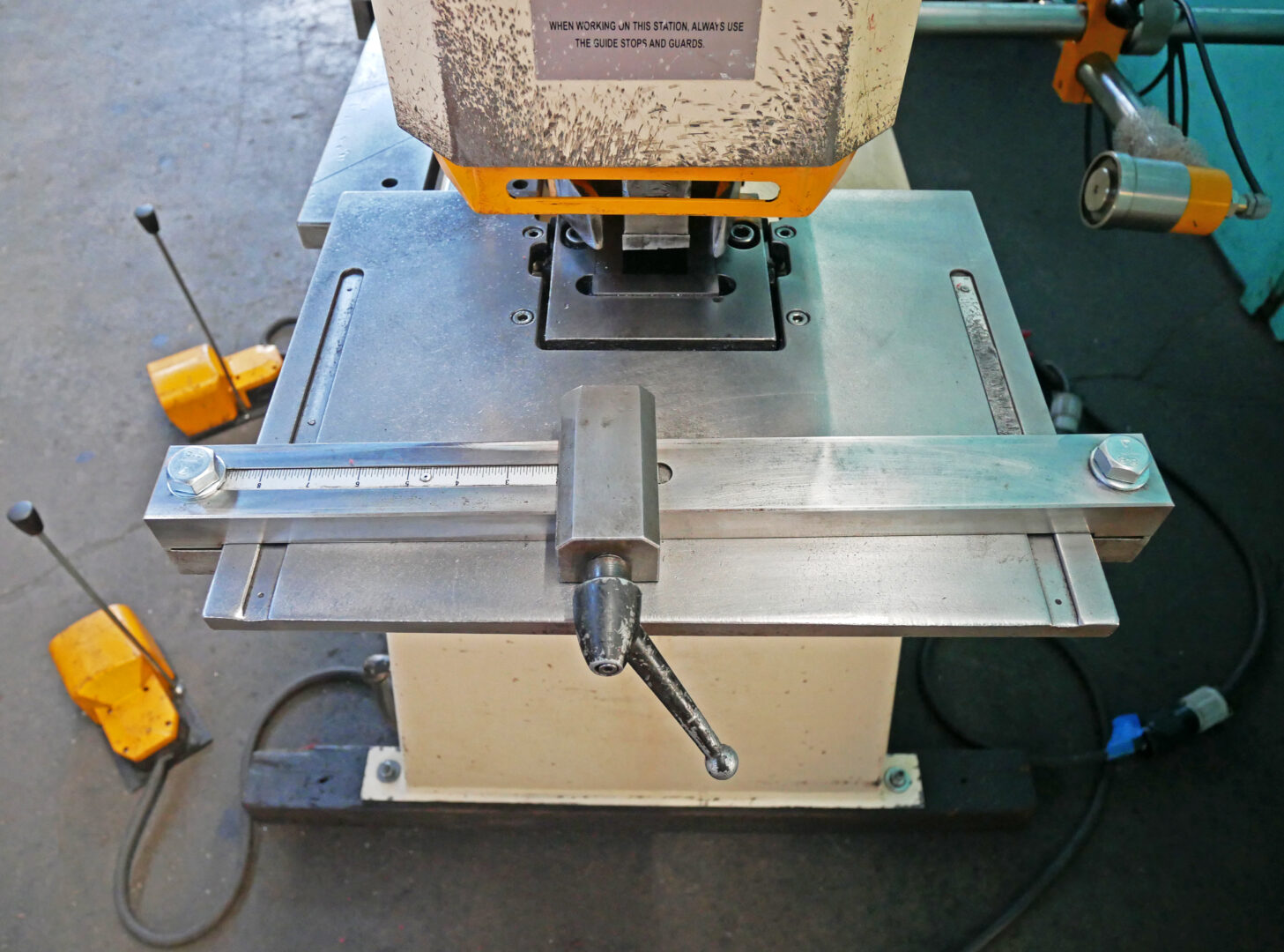

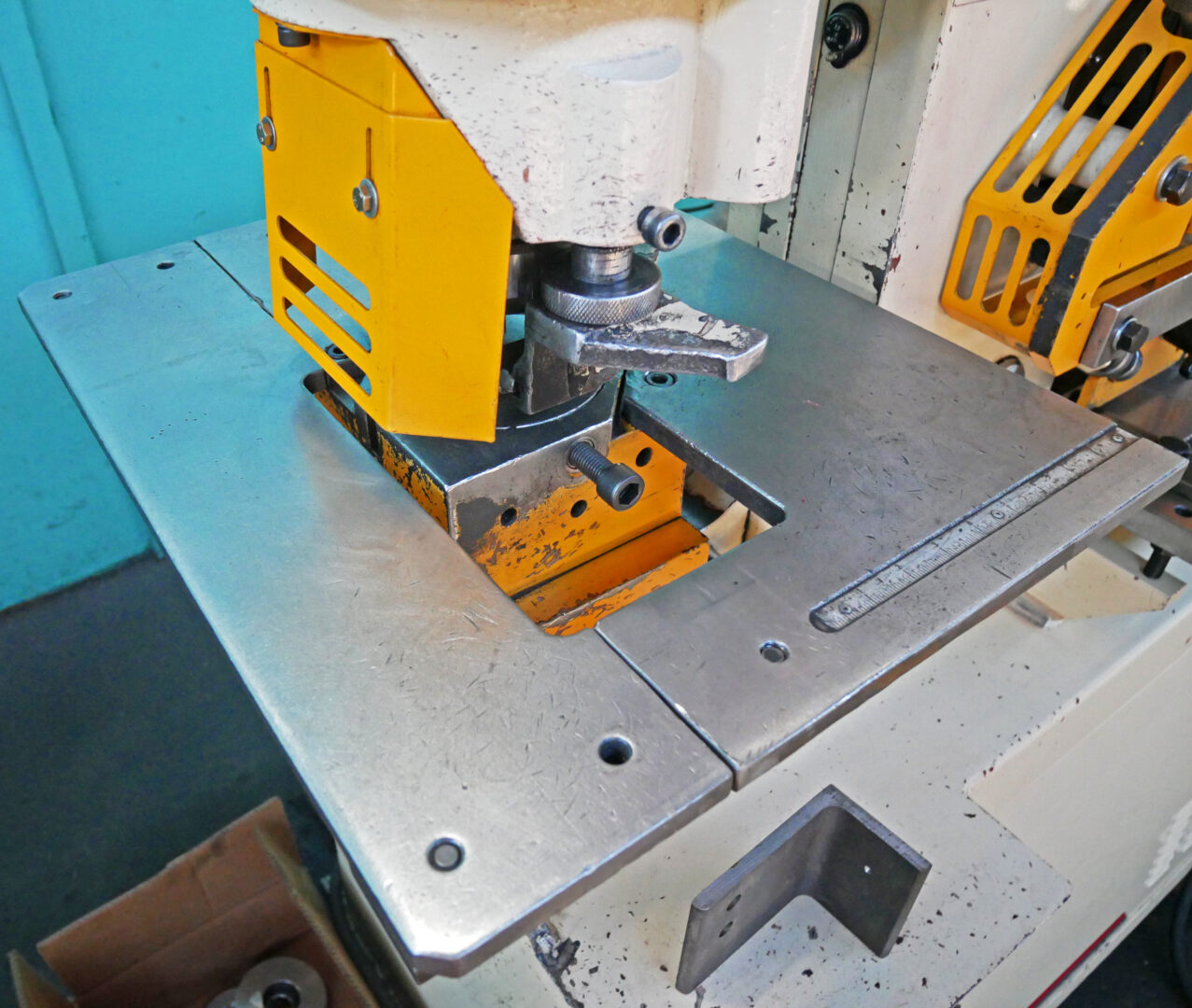

Punching Station: Independent guided punching cylinder with anti-rotation mechanism and room for optional or customized tools to be installed

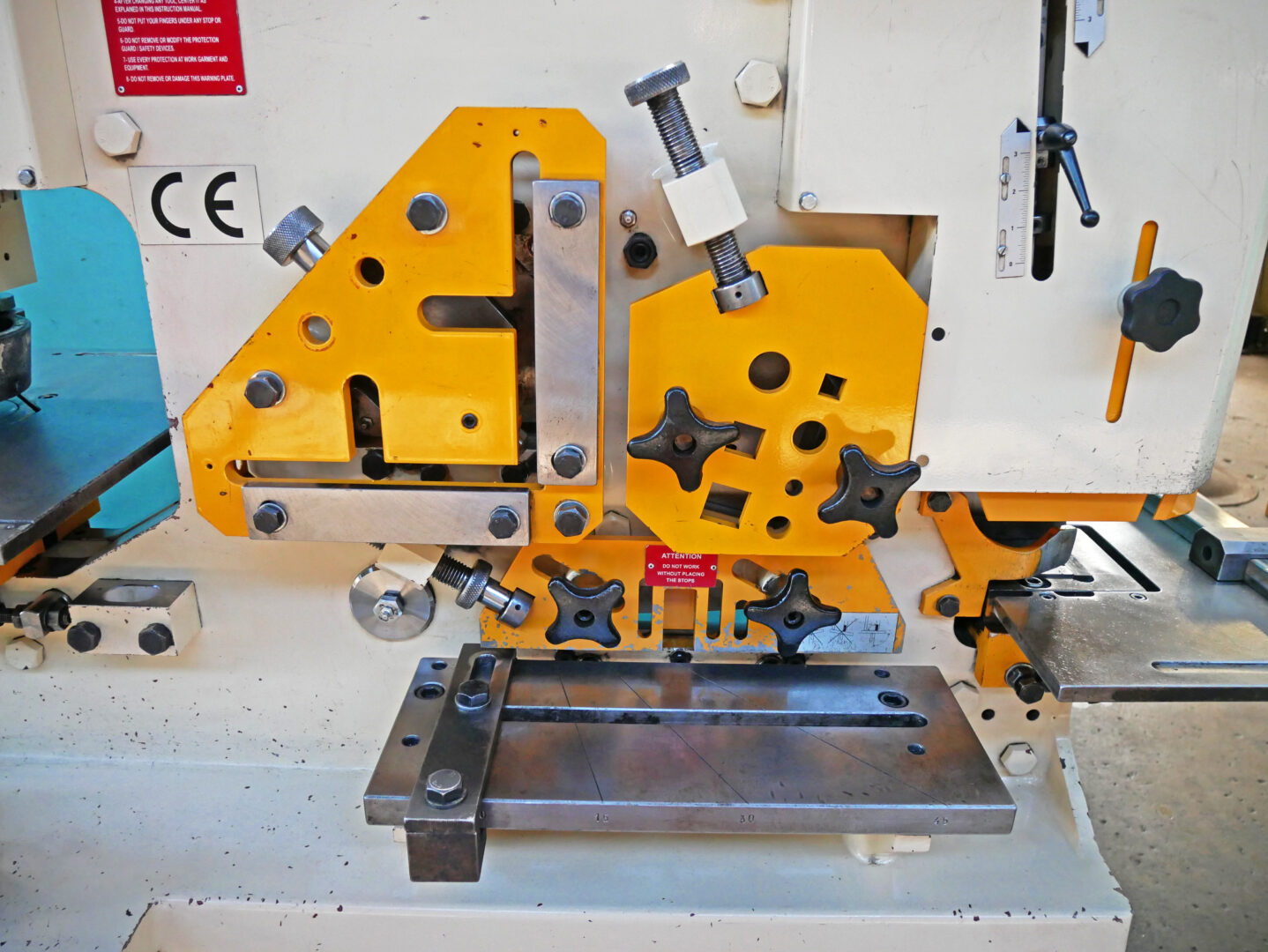

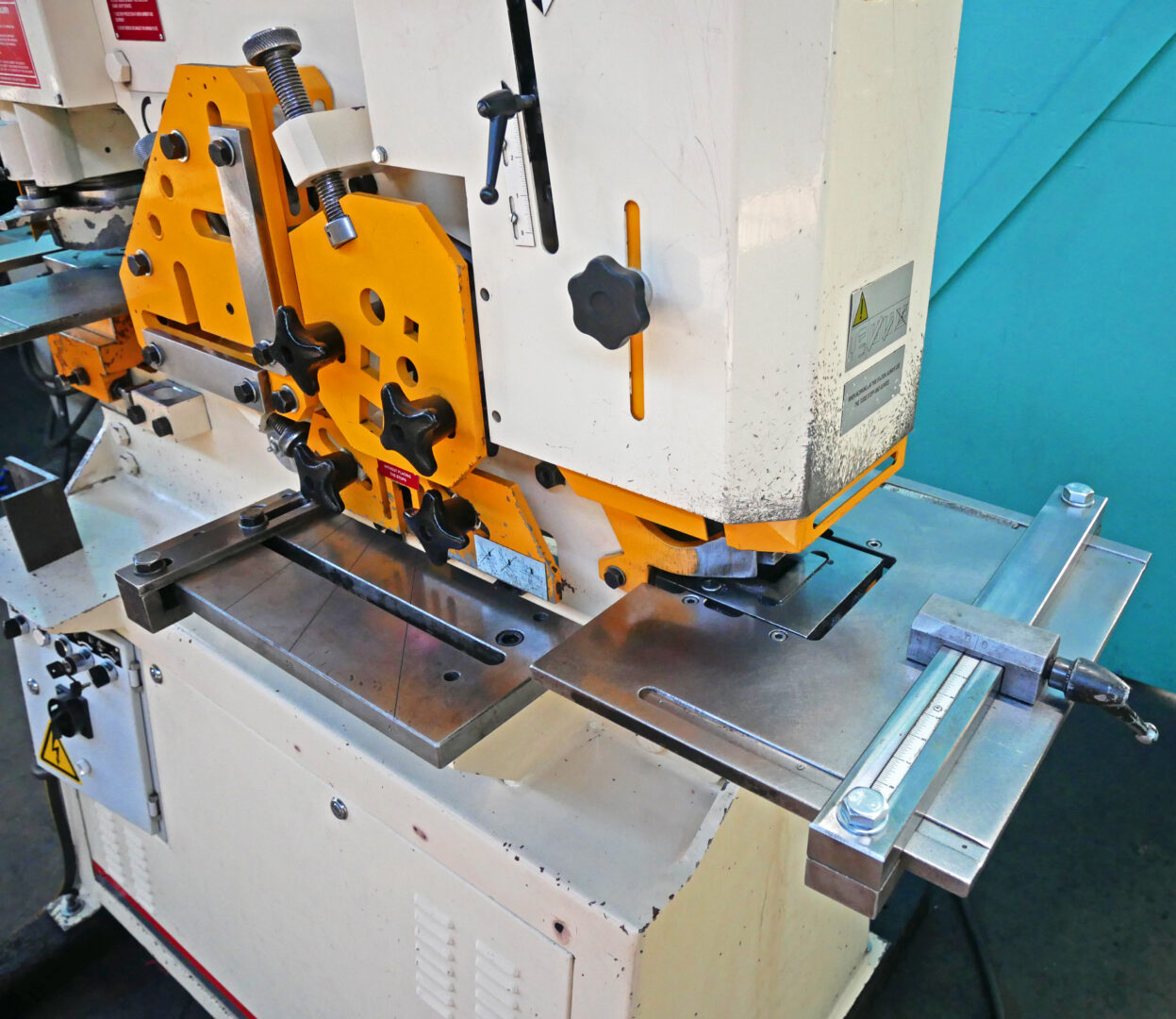

Flat Bars Shearing Station: Cutting in a progressive manner with minimal distortion. Cutting angles in flat bars station is possible
Bars Cutting Station: Shearing of solid round and square bars and a variety of profiles, such as UPN, UPE, IPN, and IPE
Notching Station: Rectangular notching station with notching of tubes or triangles as an option
Angle Shearing Station: Cutting angles without deformation or material loss with a patented rectilinear motion system
Equipment Included:

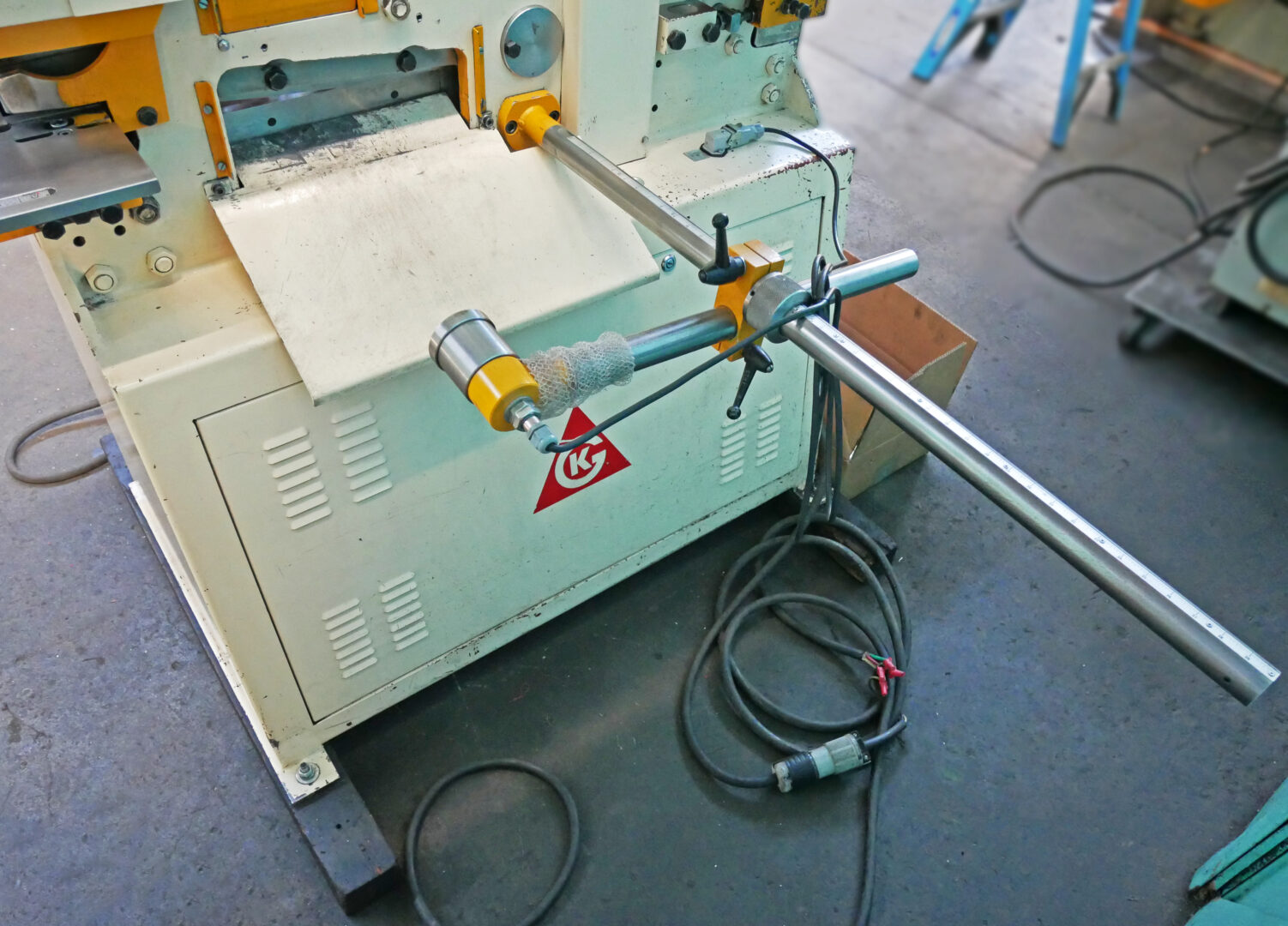

Auto-Shearing Back Stop
Mechanical Specifications:
Shipping Dimensions: 60″ x 48″ x 72″ H
Shipping Weight: approx. 3,500 lbs.
FOB Our Baltimore, MD Warehouse
