Description

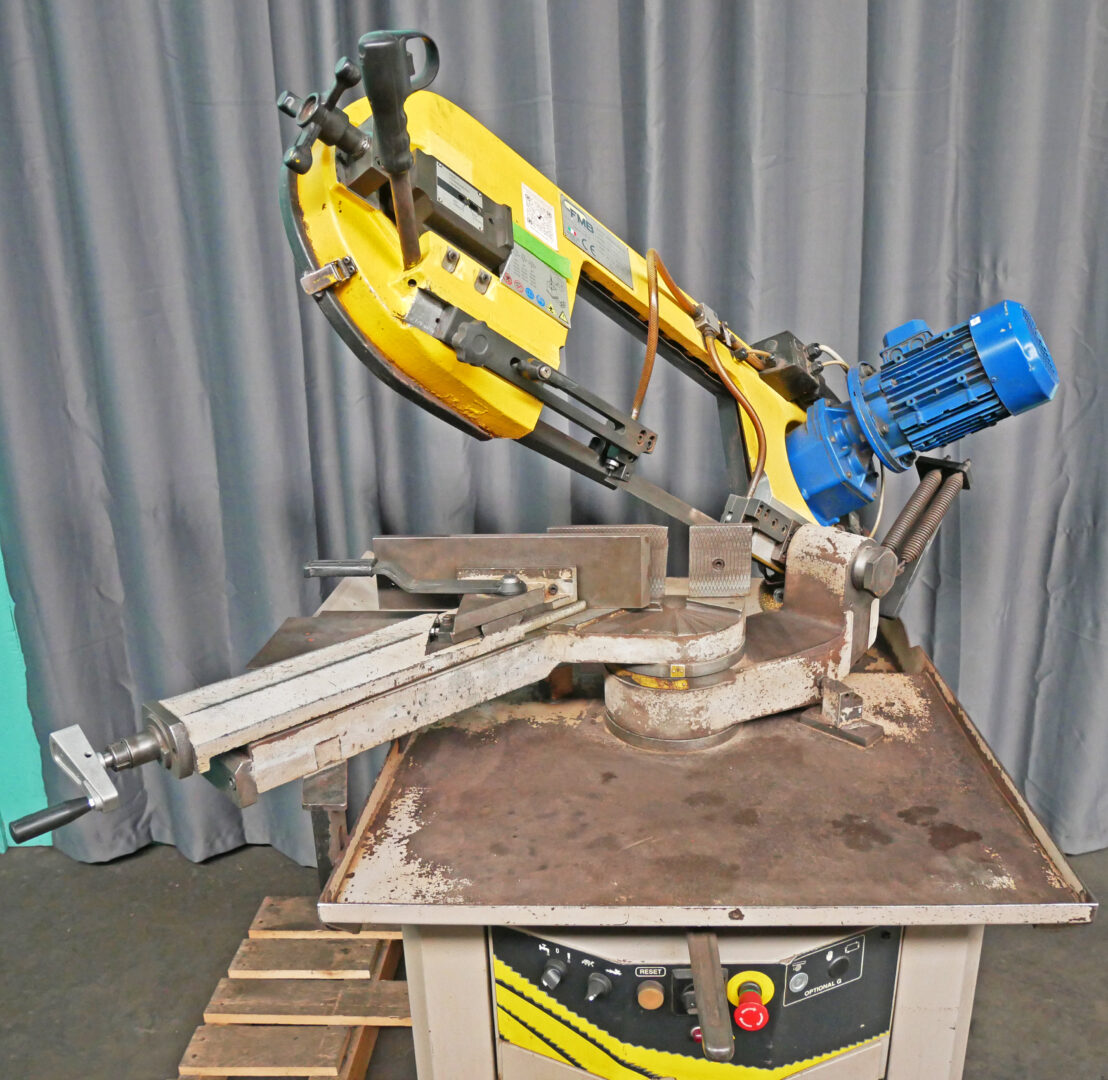

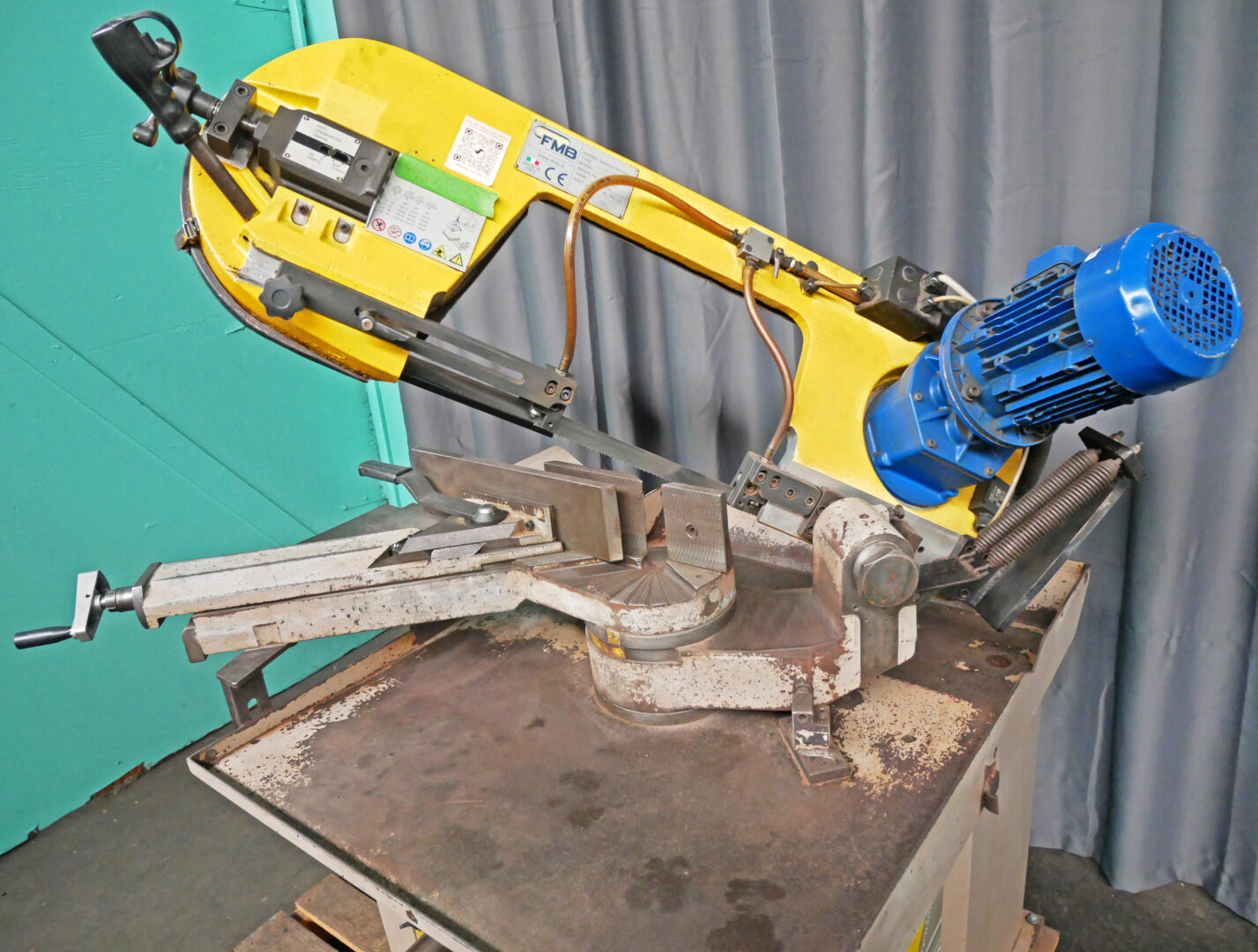

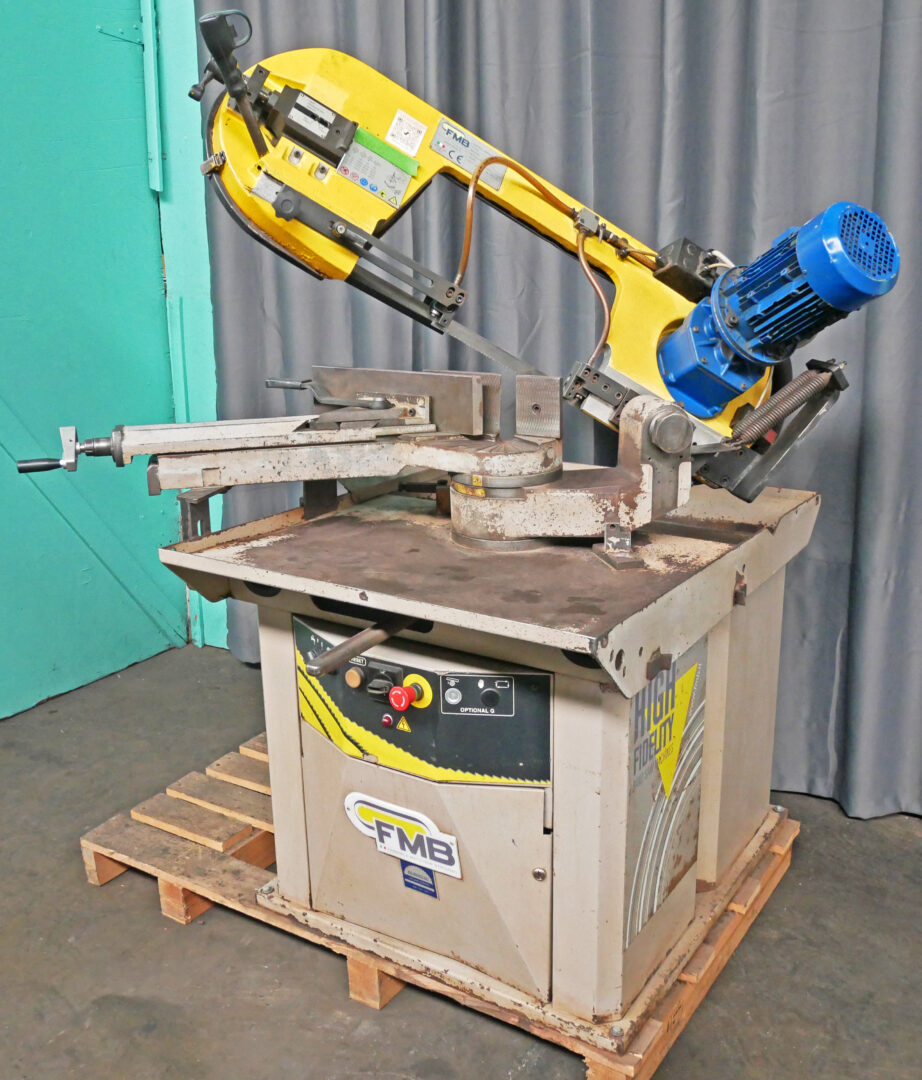

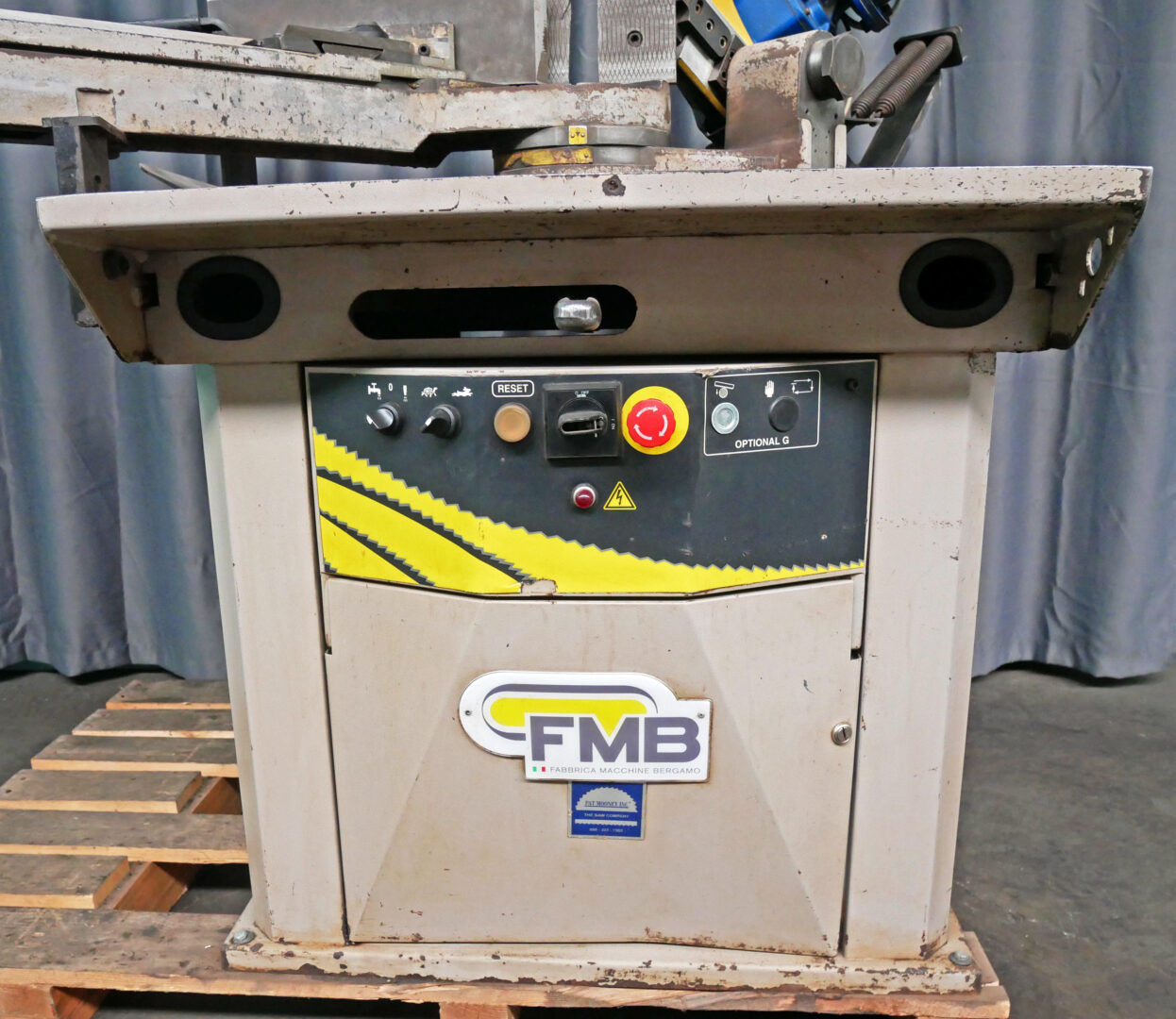

FMB Antares 7 7/8″ Manual Pull Down Double Miter Band Saw
Inventory # 9779

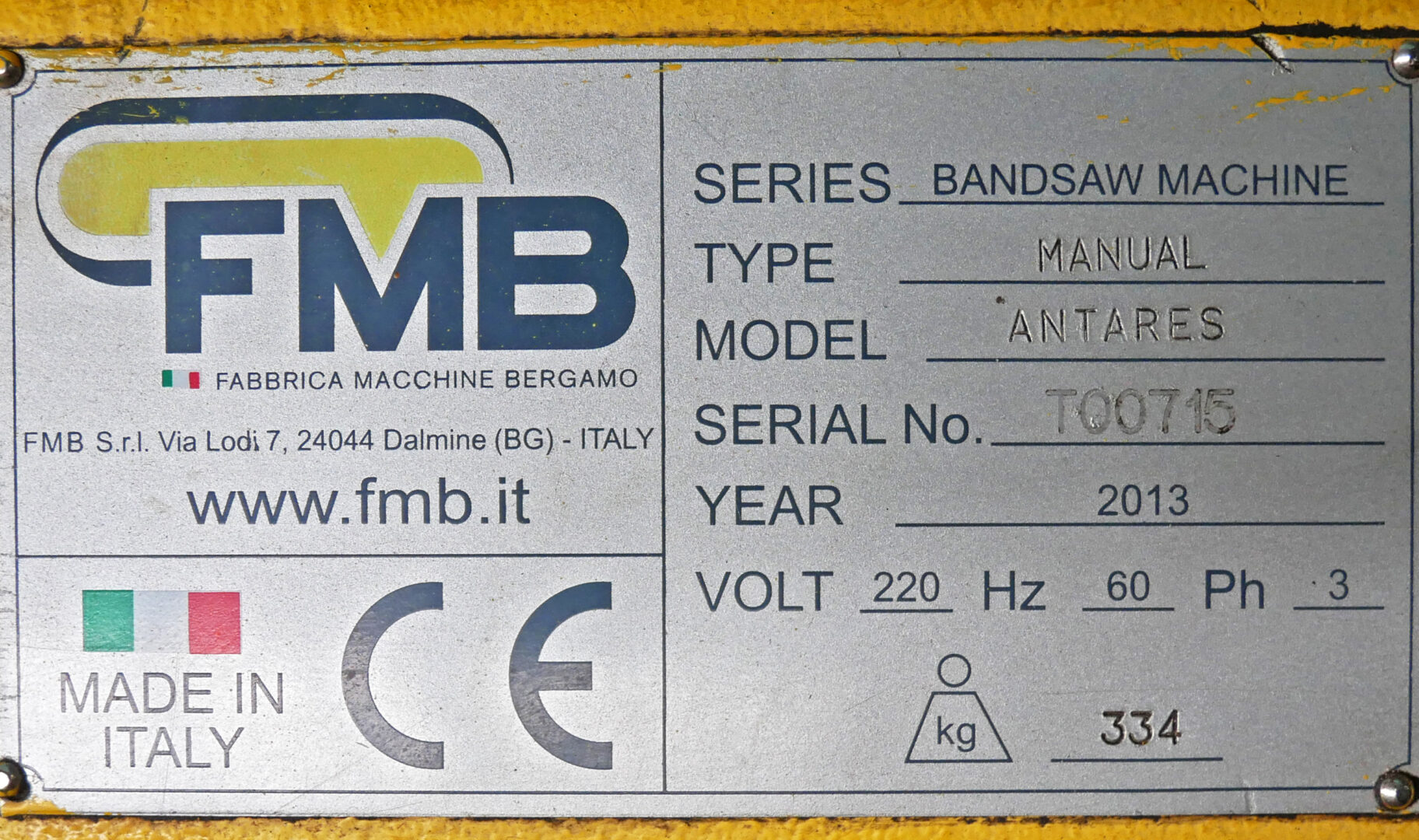

Model: Antares
S/N: T00715
Specifications:
Cutting Capacity:
Round:
@ 0°: 7 7/8″
@ 45° Right: 7″
@ 60° Right: 4″
@ 45° Left: 5 1/2″
Rectangle A:
@ 0°: 7 7/8″ x 7 7/8″
@ 45° Right: 5 1/3″ x 7″
@ 60° Right: 4″ x 4″
@ 45° Left: 5″ x 5 2/3″
Rectangle B:
@ 0°: 9″ x 7 7/8″
@ 45° Right: 7 7/8″ x 5 1/2″
@ 45° Left: 6 2/3″ x 4″
Square:
@ 0°: 7 7/8″ x 7 7/8″
@ 45° Right: 6 7/8″ x 6 7/8″
@ 60° Right: 4″ x 4″
@ 45° Left: 5 1/3″ x 5 1/3″
Blade Size: 8′ 10″ x 1″ x .035″
Blade Speed: 115 and 230 FPM (110v/1ph is one speed – 230 FPM)
Motor: 1.75 HP
Standard Features:
Up to 60° Miter to the Right and 45° Miter to the Left
Manual Pull Down

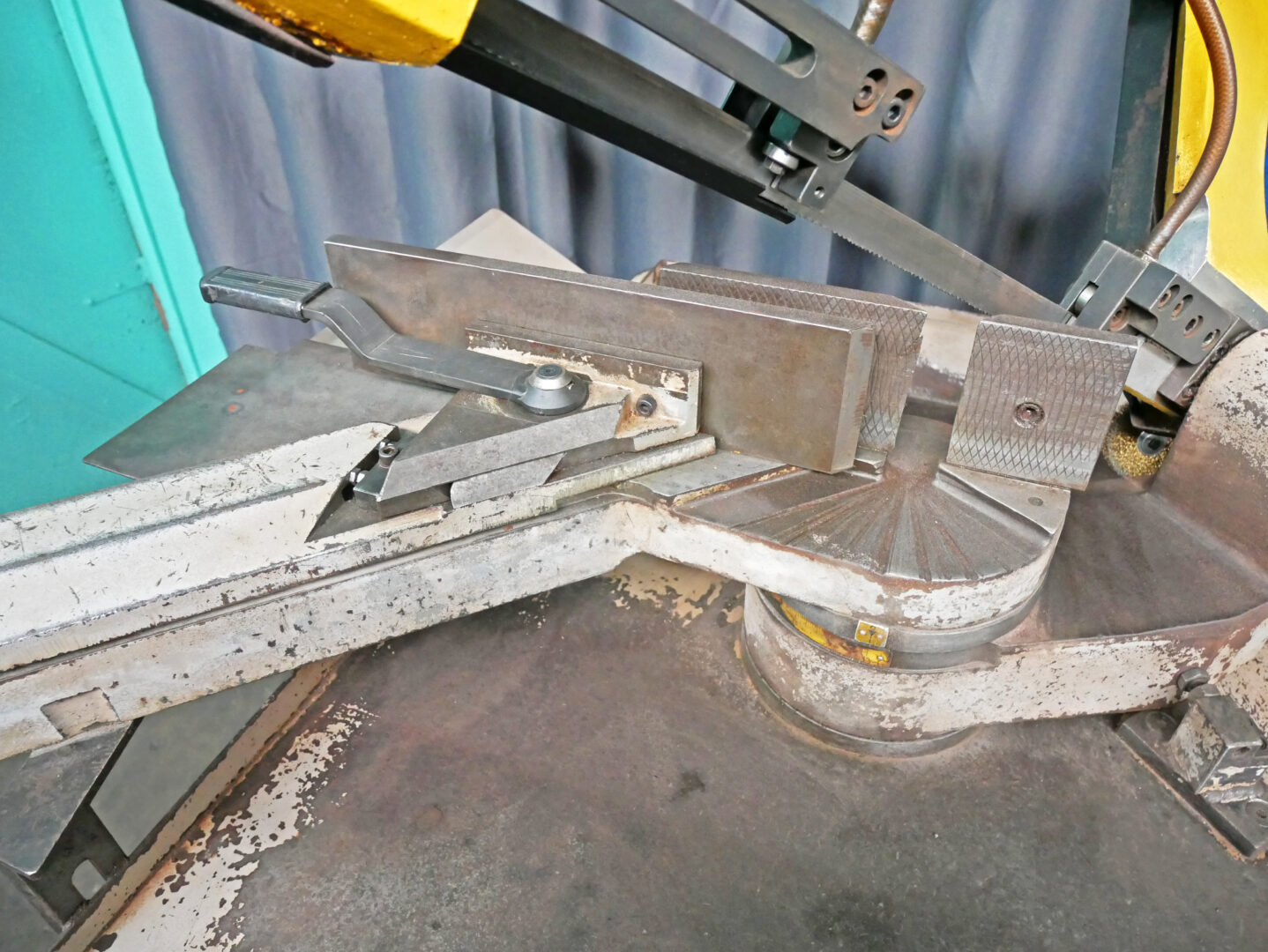

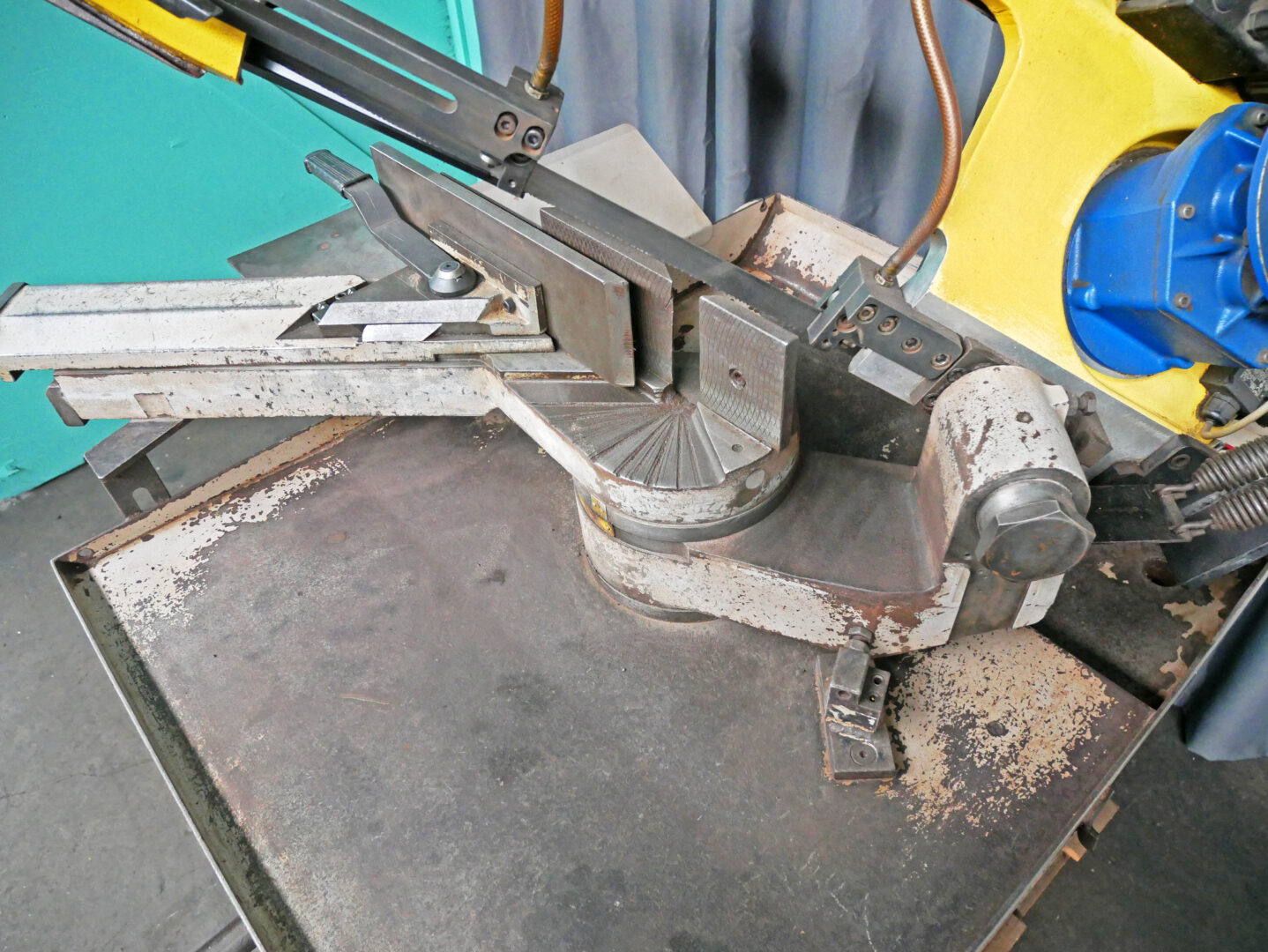

Vise is Stationary for Left and Right Miters
Mechanical Specifications:
Foot Print: 35″ x 57″
Weight: approx. 750 lbs.
FOB Our Baltimore, MD Warehouse
