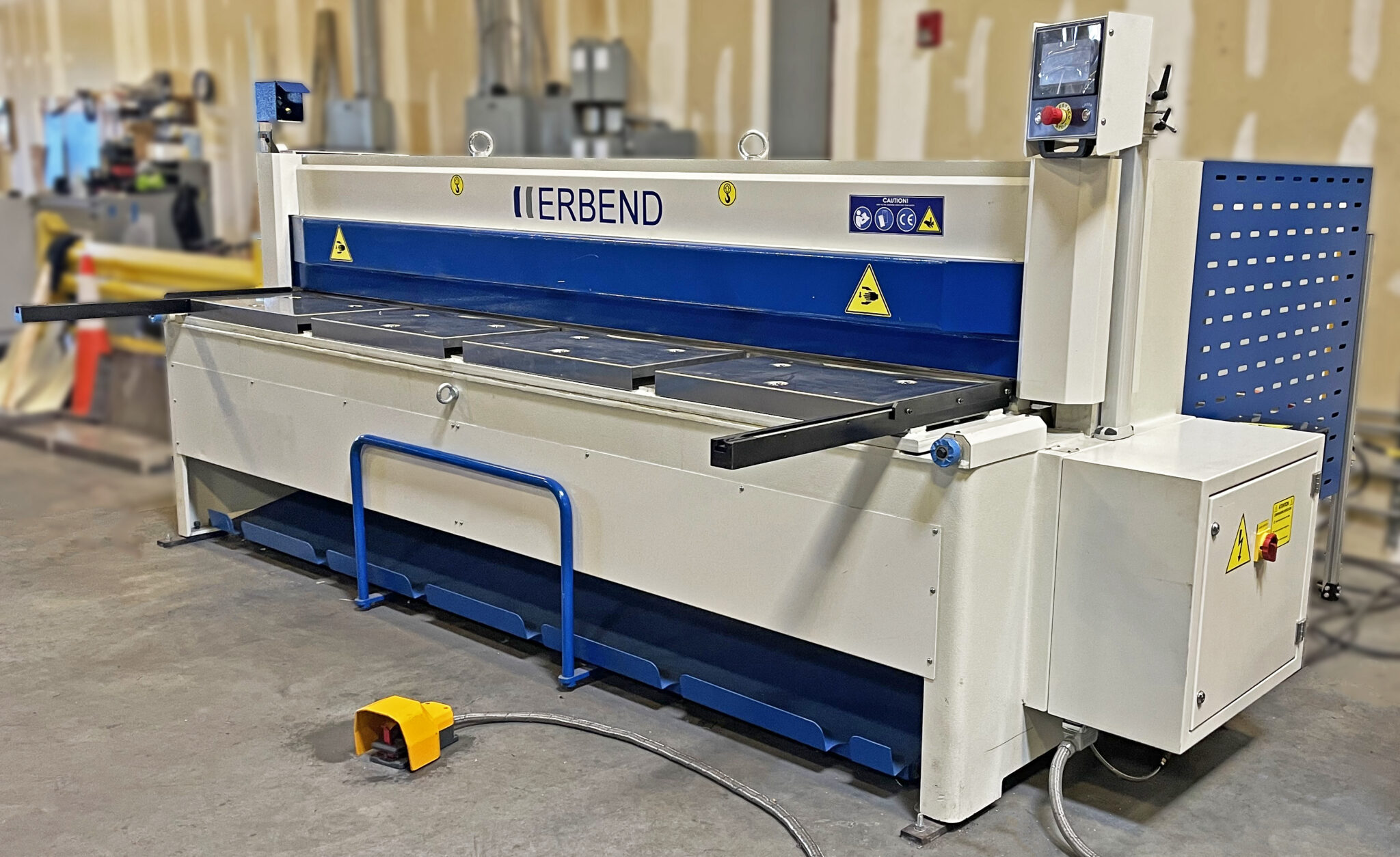

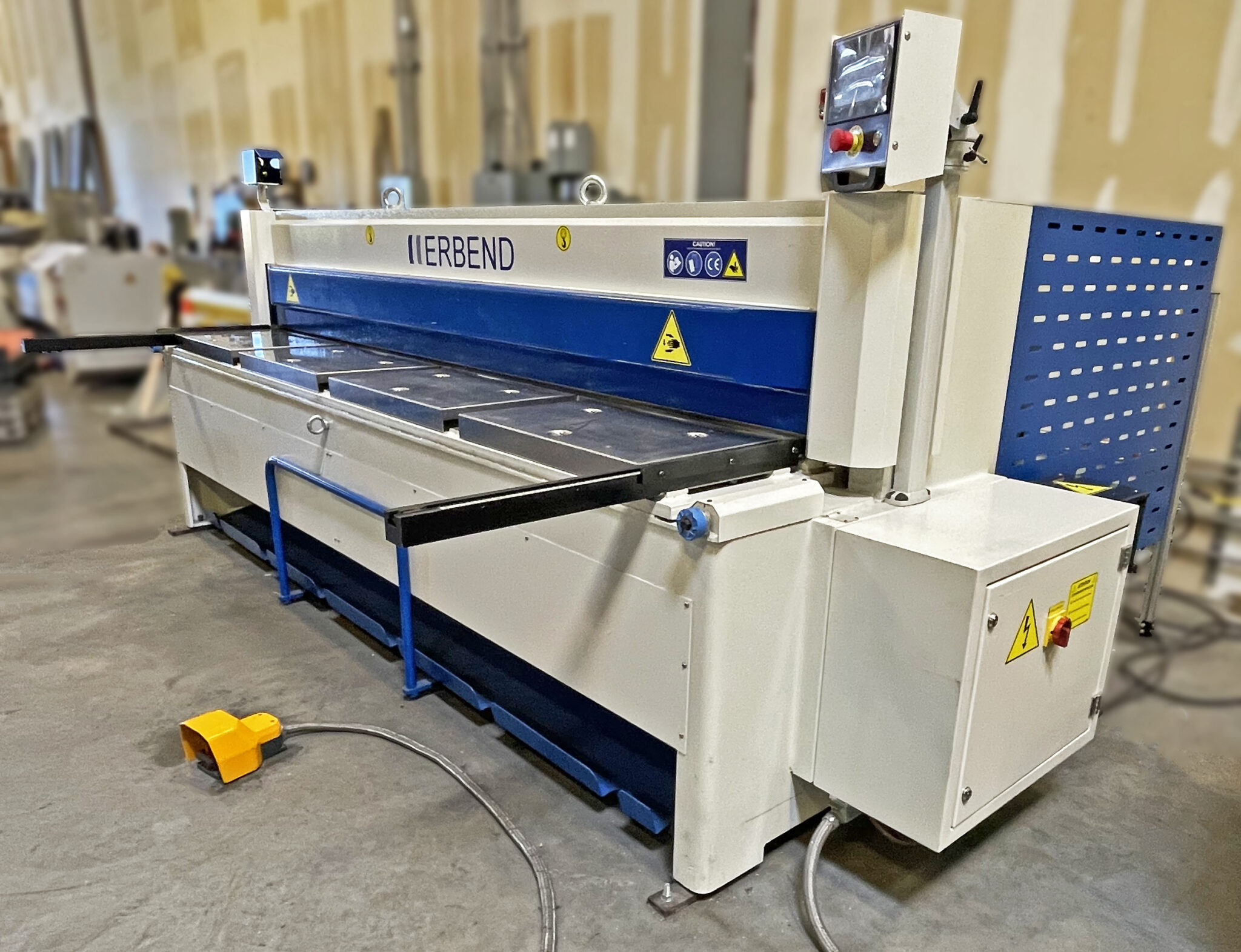

Erbend 10′ x 9 Gauge NC Motorized Shear, EMS 3240
Inventory # 10009
Model: EMS 3240
S/N: 22144
Specifications:
Cutting Length: 10 1/2′ (3,200 mm)
Capacity:
Mild Steel: 9 Gauge (4 mm)
Stainless Steel: 13 Gauge (2.5 mm)
Aluminum: 6 mm
Cuts per Minute: 35
Motor: 10 HP (7.5 kW)
Standard Features:

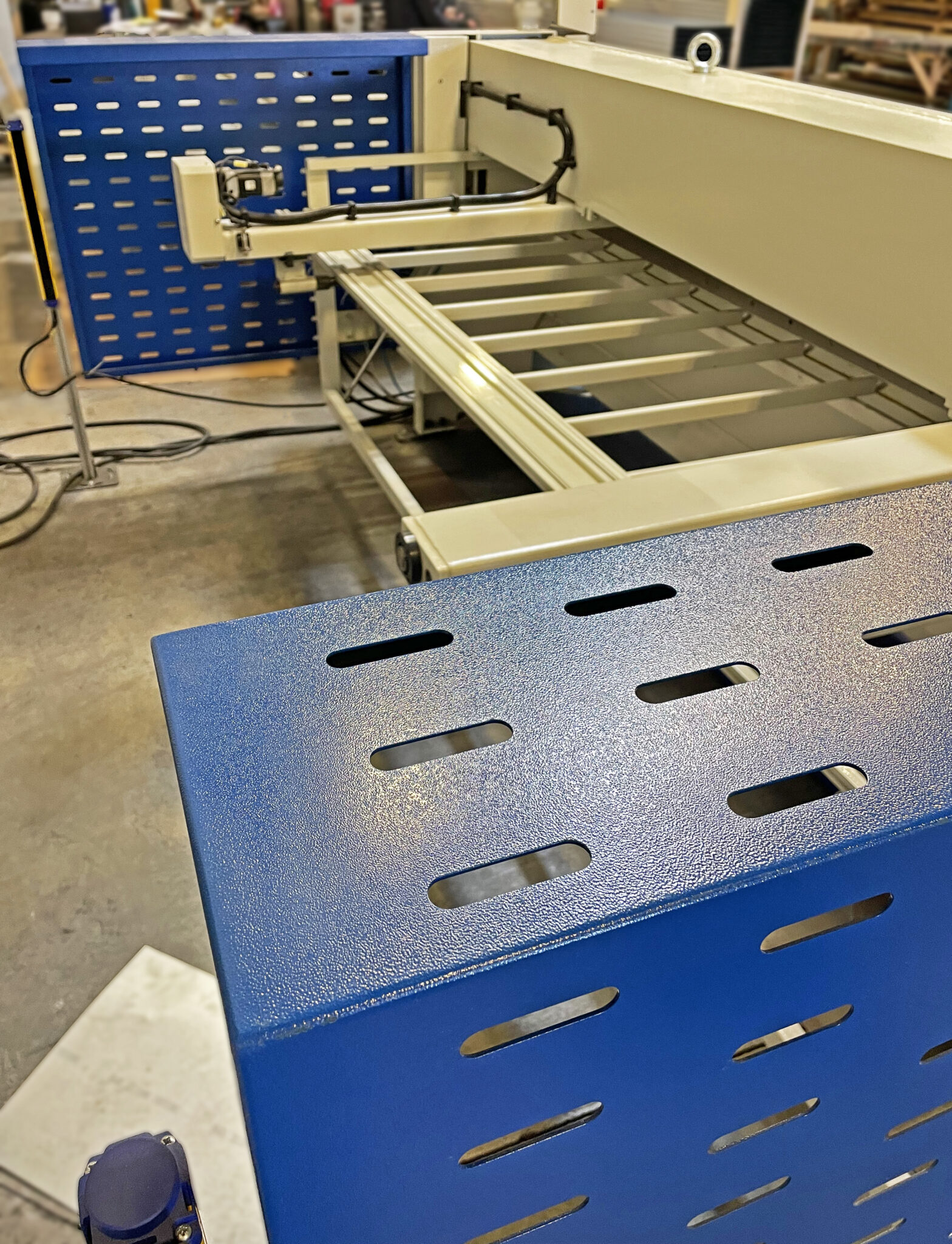

750 mm Servo Motorized Back Gauge System:
700W servo drive and motor with +/- 0.1 mm accuracy
32/32 thread ballscrew system with +/- 0.05 mm accuracy
Aluminum sigma profile sheet support
One fixed, one movable, full-body protective, vertical light barrier
Side fences to avoid unwanted interventions

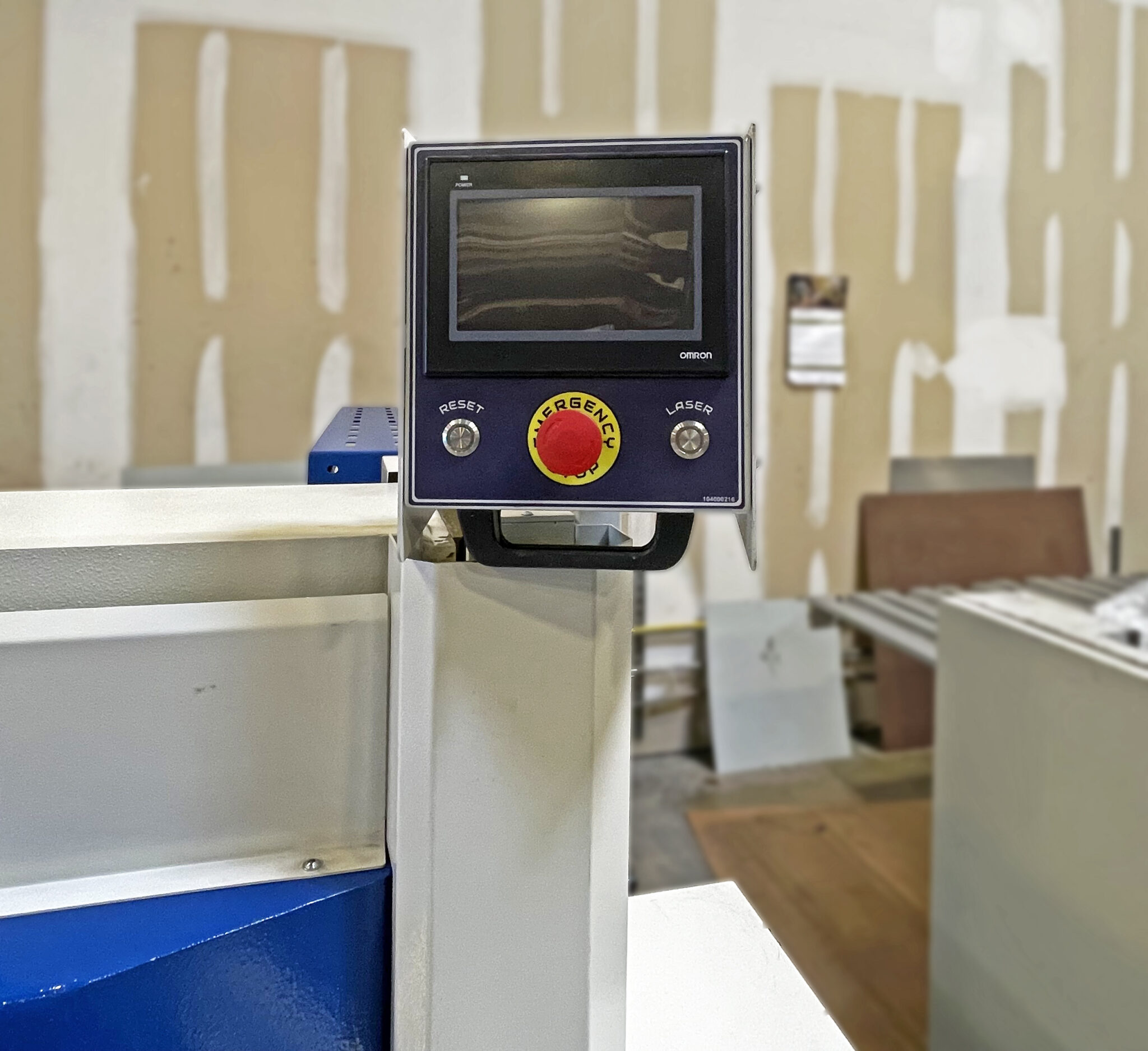

Elgo P40T / 002 Touch-Screen NC Control System:
Click here to download the P40T-002 operation manual
TFT display with touchscreen
Program memory up to 1,000 steps and 10 operation modes
Manual function
Single set operation
Digital outputs up to 2A
Analog outputs
Material depending gap, angle, and pressure calculation
Automatic cut
Sheet support
Sheet return
24v DC input
IP43 front and IP00 rear protection class
Friction Free Guillotine Blade Geometry and Dual Sided Blades:
Thanks to the curved machined blade geometry, blades never touch each other which sustains a much longer blade life without sacrificing cutting precision
Both sides of the blades can be used by switching easily
Manual blade gap adjustment
Spring-Loaded Hold-Down Bar and Polyurethane Material Clamping Surface:
Thanks to the spring load, the sheet is clamped and fixed with an ideal pressure for cutting
With the polyurethane touching surface, your material is never scratched
Fixed Side Squaring Gauge and Stainless Feeding Table with Rulers on Each 500 mm (19.69″) Length
Retractable Front Sheet Support Bar:
From the cutting line to the edge, it can support a maximum of 930 mm (36.61″) long sheets
Smooth and light movement only by pulling from the middle
LED Illumination of Cutting Area and Cutting Line
Mechanical Specifications:
Dimensions: 147″ x 77″ x 63″ H
Weight: approx. 6,730 lbs.
New Replacement Cost: $48,950.00
FOB Our Baltimore, MD Warehouse
