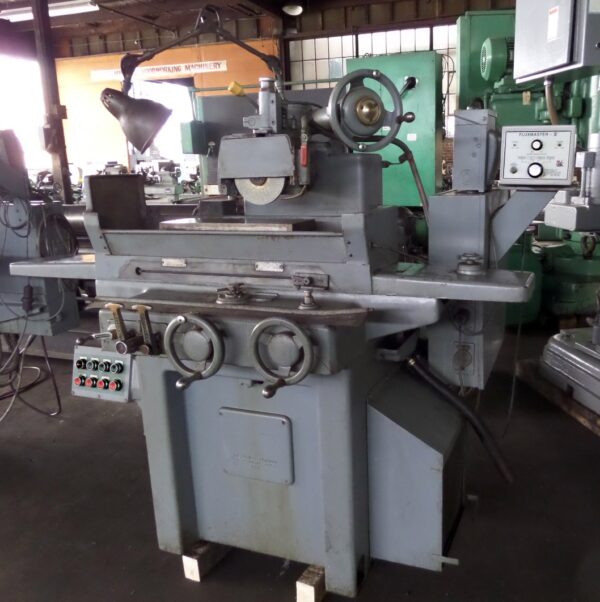

Doall 6″ x 18″ Automatic Hydraulic Surface Grinder

$1,500.00


Shipping: Add to Cart to Calculate

In stock

Inventory #: 5936

Category:

Condition:

Type:

Brand:

Description

DoALL 6″ x 18″  AUTOMATIC HYDRAULIC SURFACE GRINDER- AS-IS

INVENTORY # 5936-E

MODEL: 618-7

S/N: 219-67358

MADE IN THE USA

READ THE DoALL 618-7 PDF HERE

SPECIFICATIONS:

WORKING SURFACE OF TABLE:  6″ x 18″

TABLE TRAVEL:  7 1/2″ x 21 1/2″

LONGITUDINAL TABLE FEEDS:  5 – 125 FPM

CROSS TABLE IN-FEEDS:  0 – .250 IPM

GRINDING WHEEL : 7″ x 1/2″ x 1 1/4″

SPINDLE MOTOR:  1 HP/ 3400 RPM/ 440 V/ 3 PH

HYDRAULIC PUMP: 6 GALLONS PER MINUTE

EQUIPMENT INCLUDED:

MICRO ADJUST OVER THE WHEEL PARALLEL DRESSER

PARALLEL DRESSER

MECHANICAL SPECIFICATIONS:

FLOOR SPACE: 90″ x 55″ (APPROXIMATE)

SHIPPING WEIGHT: 2,750 LBS (APPROXIMATE)

NOTE: ELECTRO-MAGNETIC CHUCK AND FLUX MASTER 5 VARIABLE CHUCK CONTROL ARE NOT INCLUDED

AS-IS, NEEDS REPAIR

PRICE:  $1,500.00

FOB OUR BALTIMORE, MD WAREHOUSE

Additional information

Weight 2750 lbs
