Description

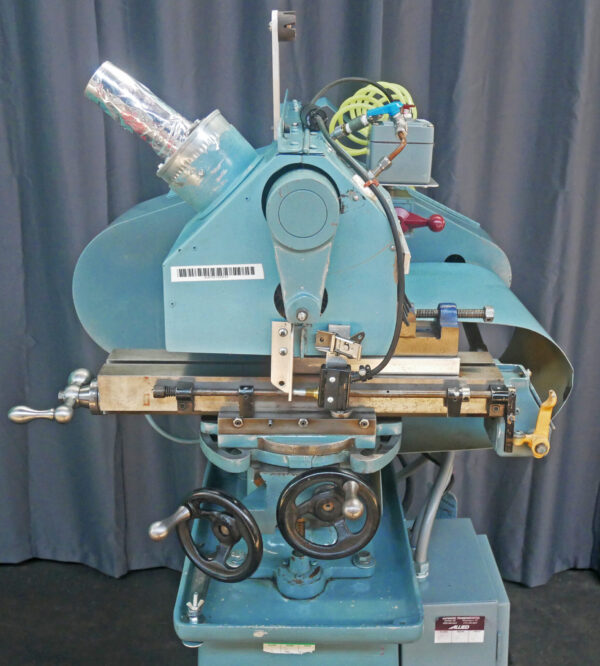

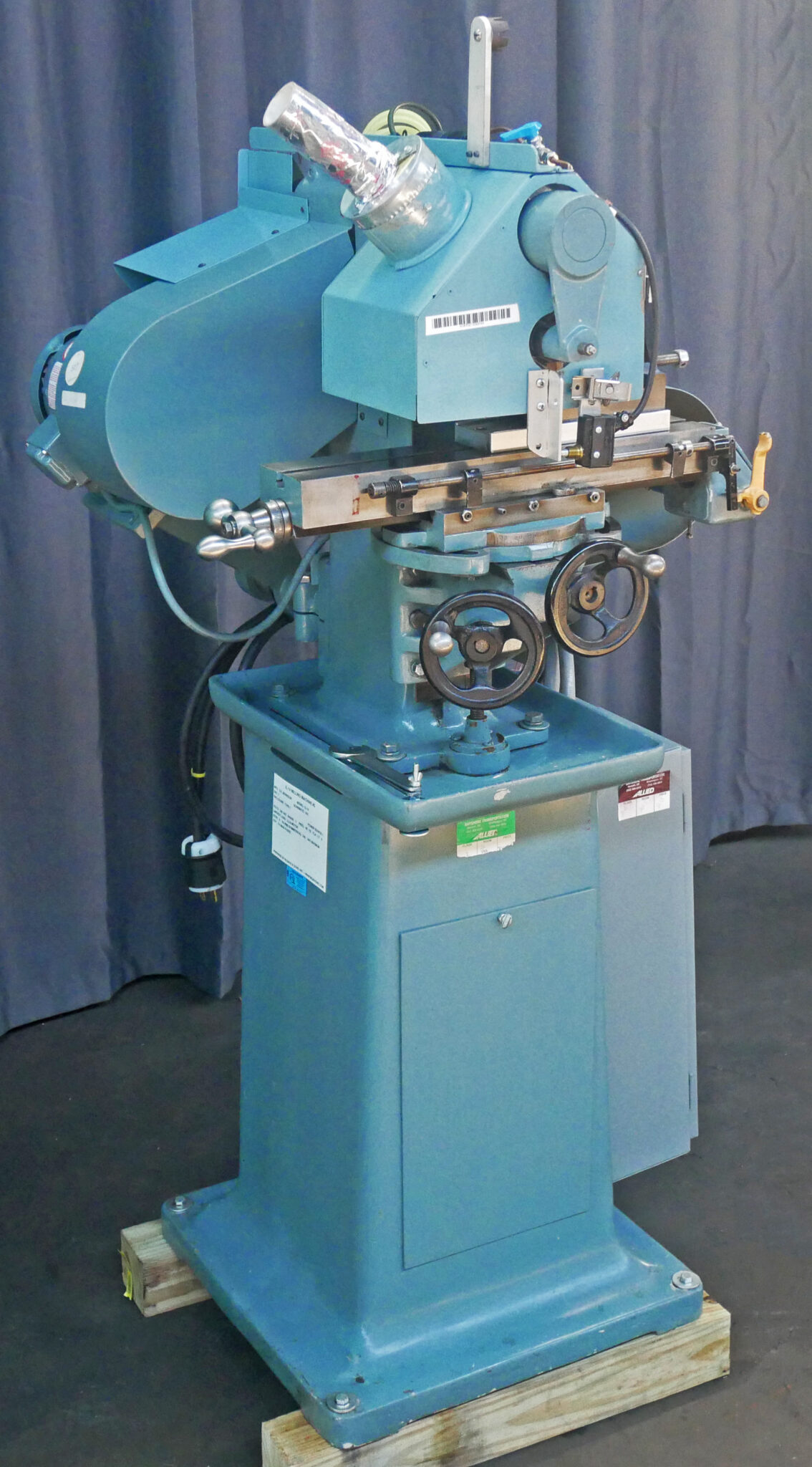

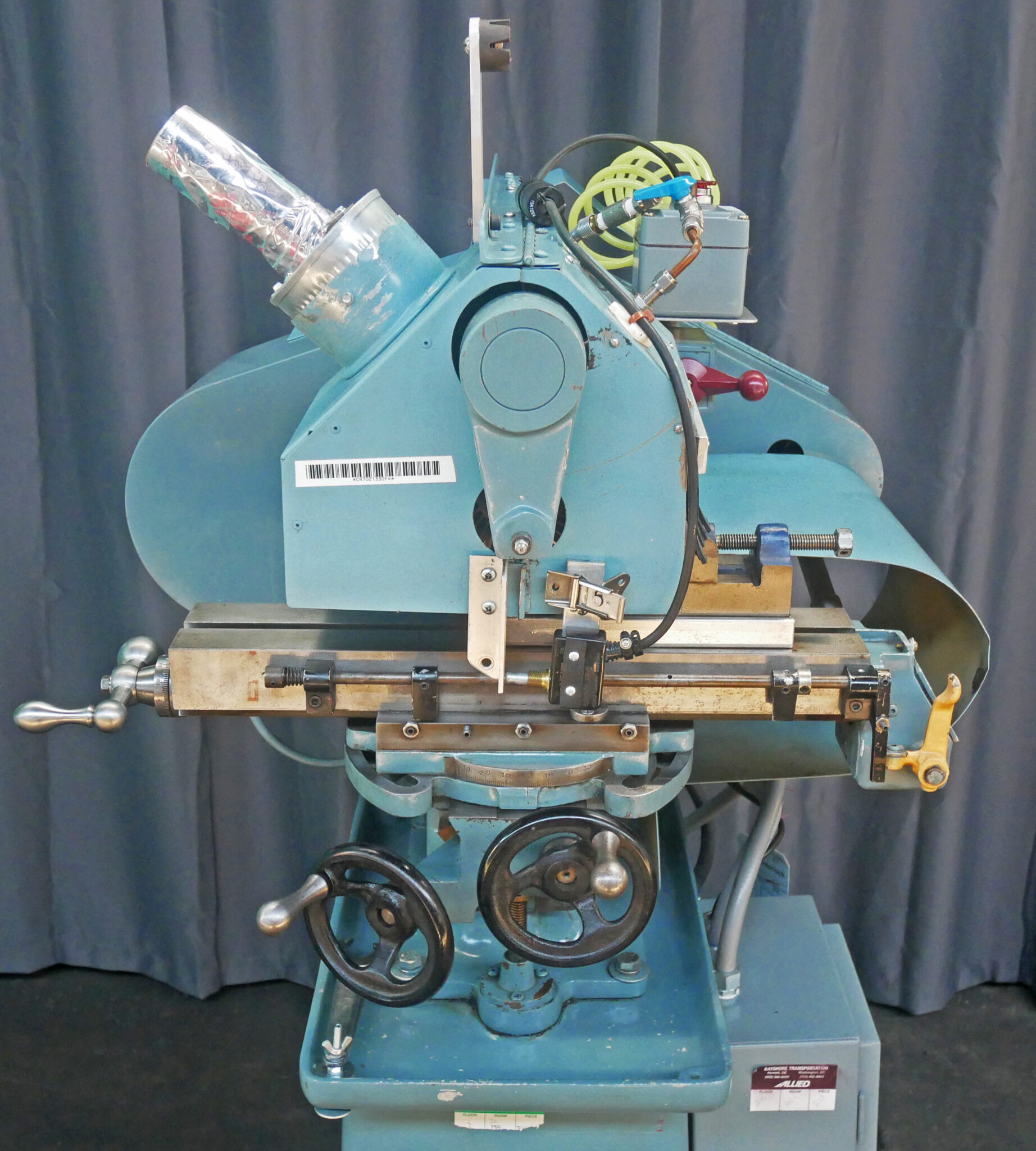

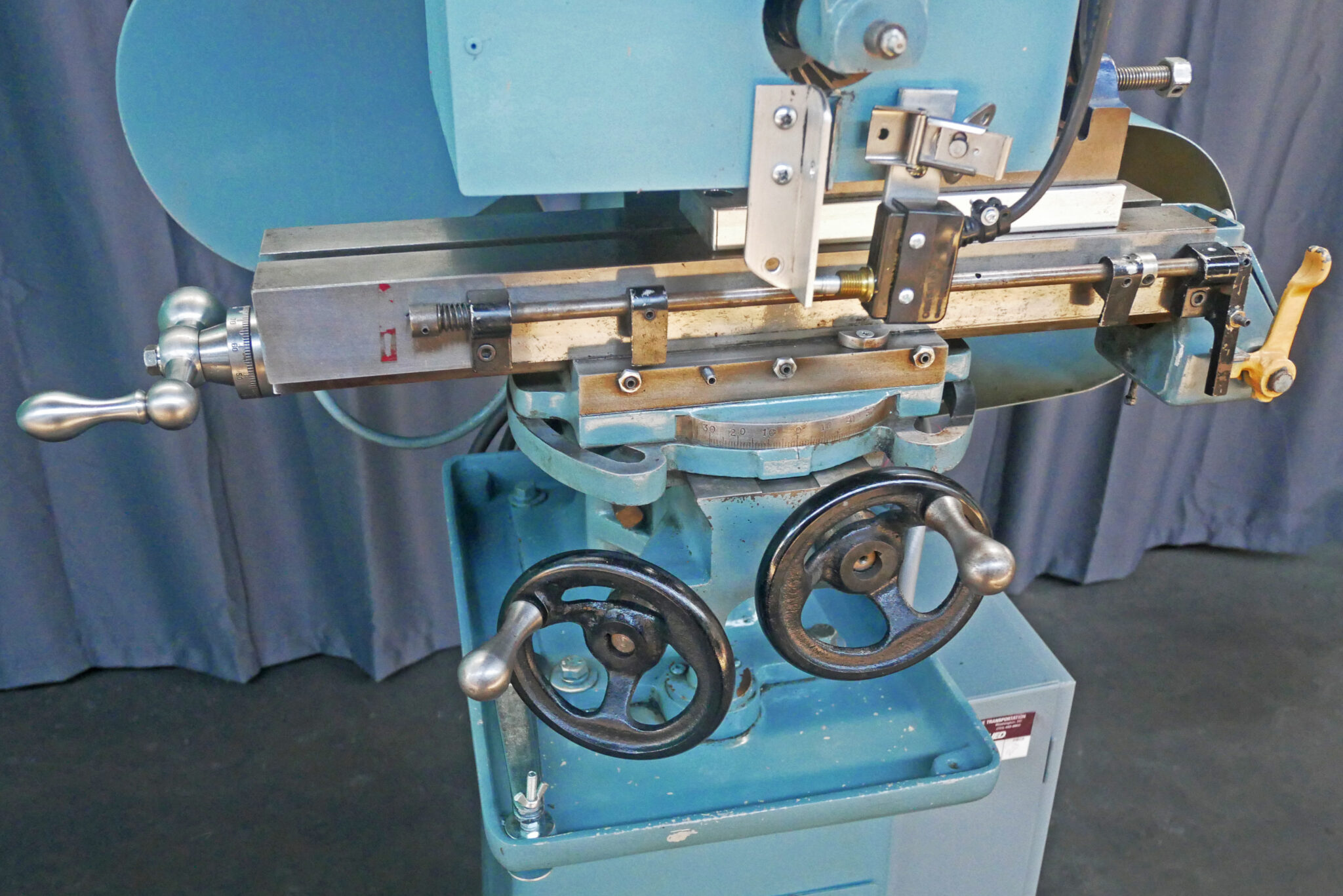

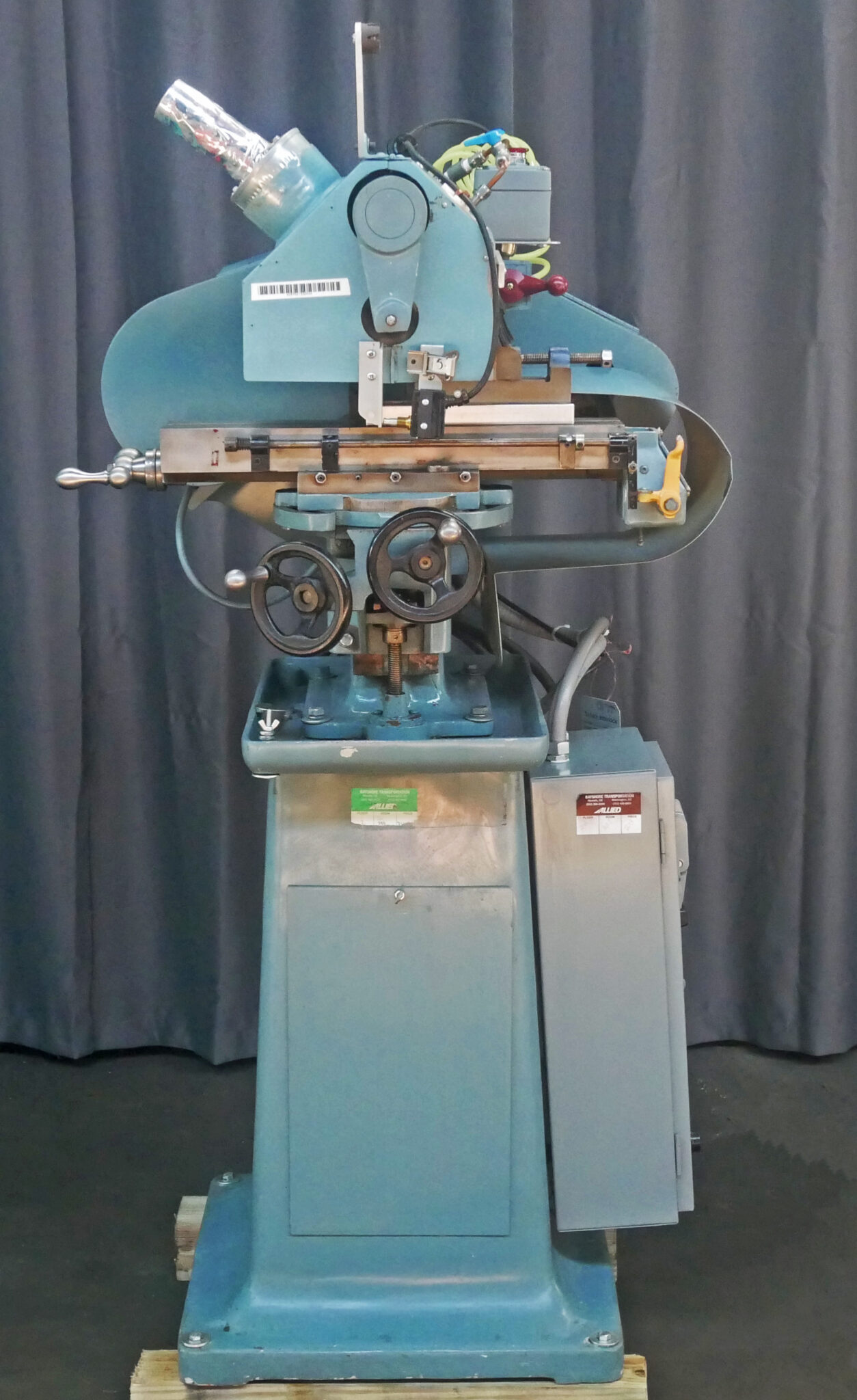

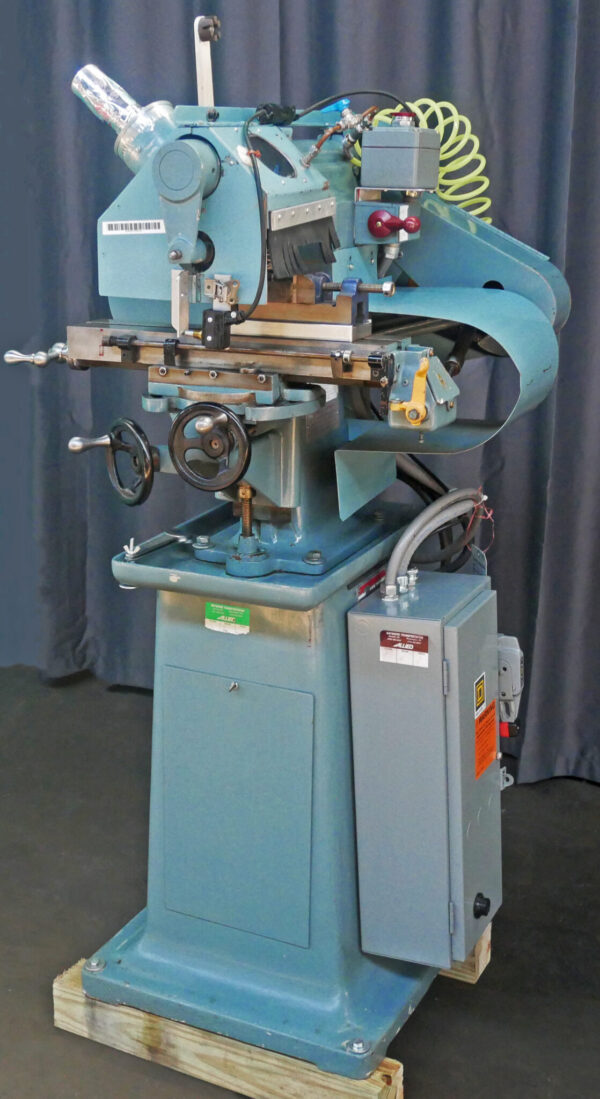

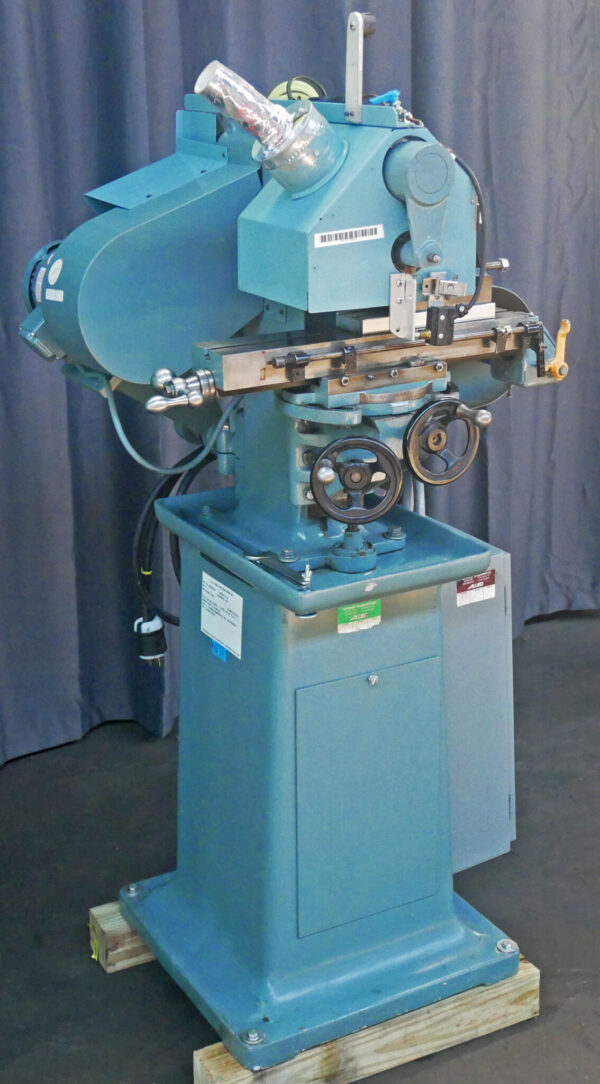

D.C. Morrison / Burke No. 4 Universal Milling Machine
Inventory # 9921-P
Model: No. 4
S/N: B-420001201
Specifications:
Working Surface of Table: 3 3/4″ x 20″
Longitudinal Feed: 10″
Traverse Feed: 2″
Vertical Feed: 7″
Max. Distance Between Center of Spindle and Table: 7″
Width of T-Slot: 1/2″
Spindle Taper: BS #9
Spindle Speeds: (3) 66 – 2,875 RPM
Motor: 1/2 HP / 208-230v, 460v / 3ph
Equipment Included:
Baldor 1/2 HP, 3PH Motor

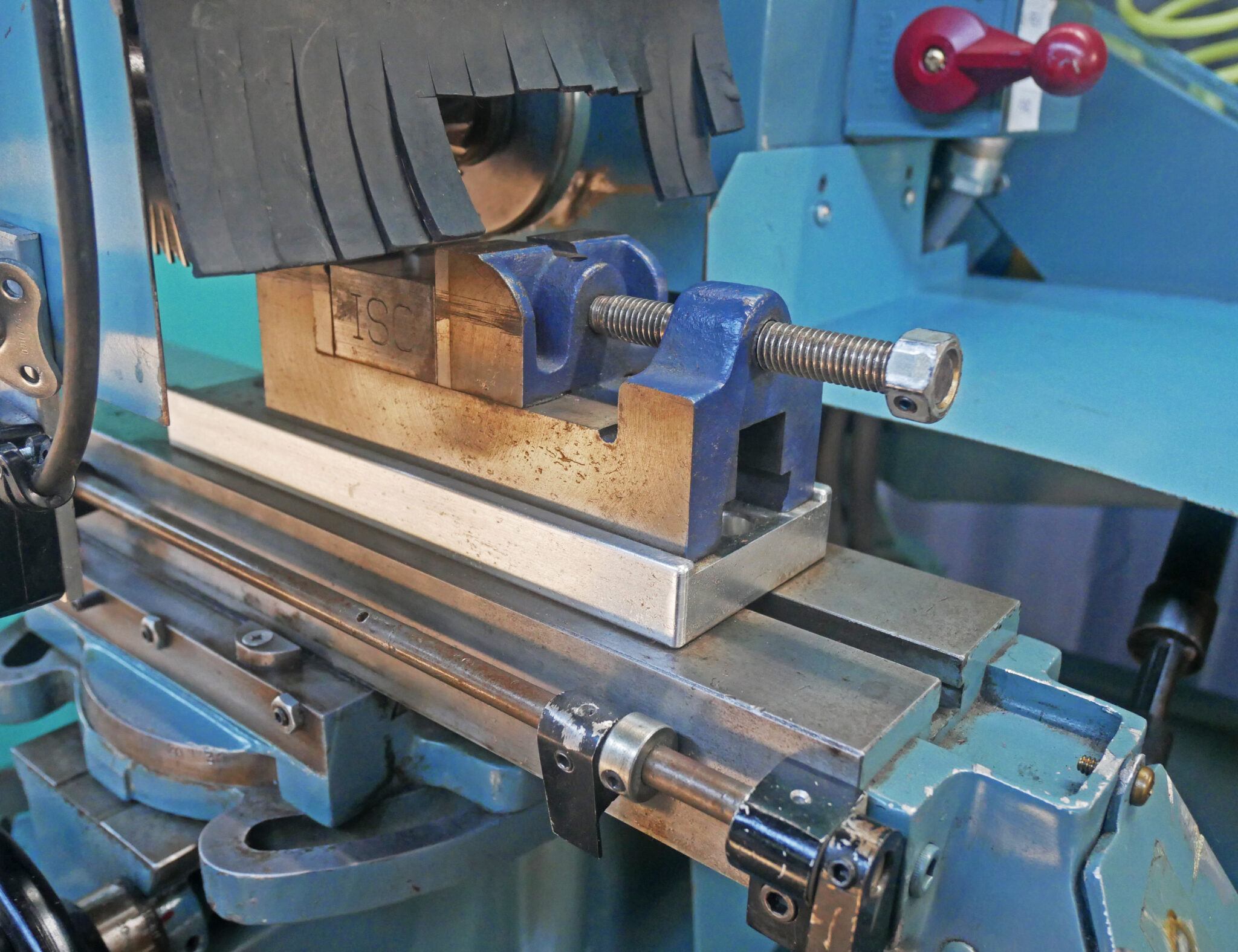

Plain Vise

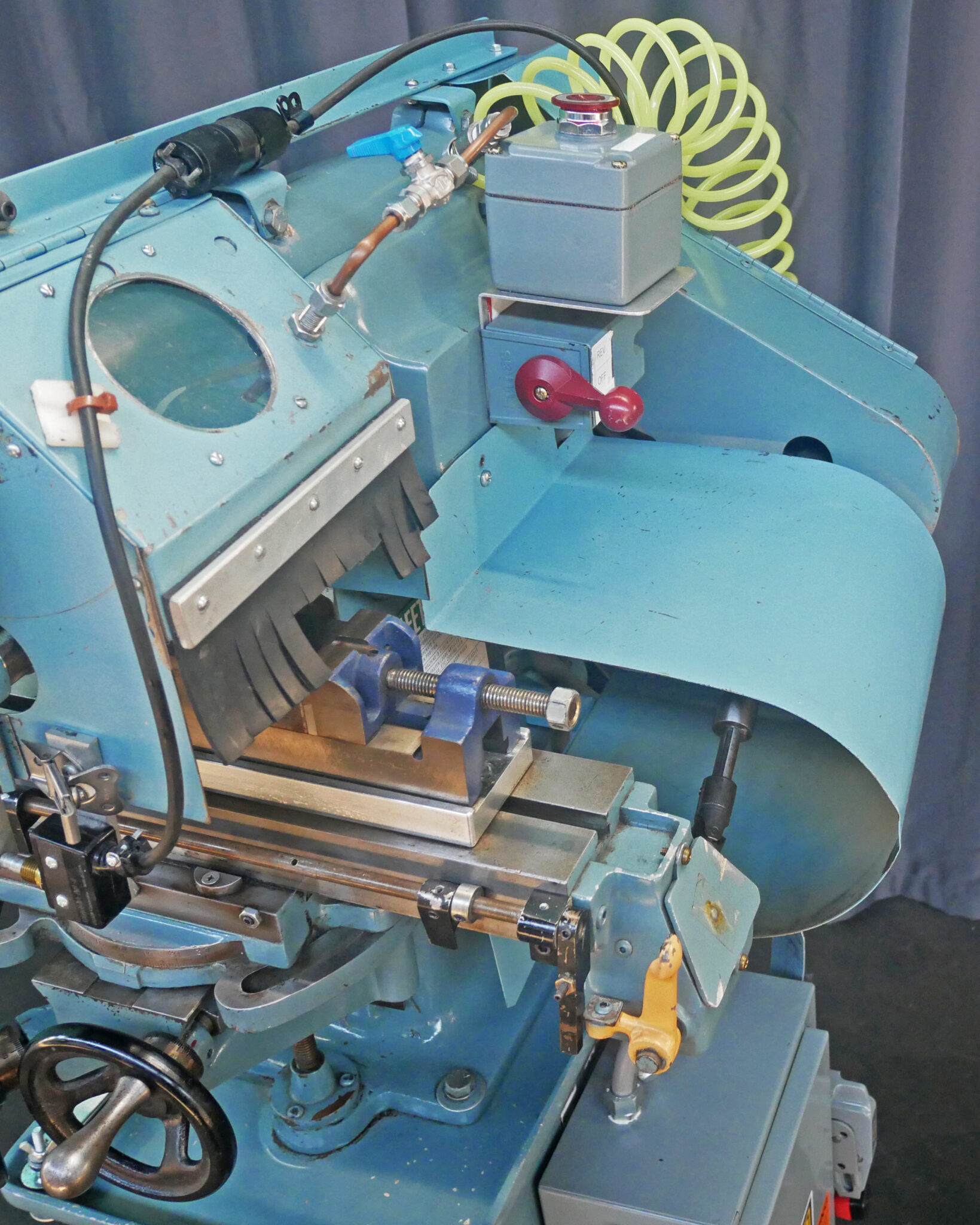

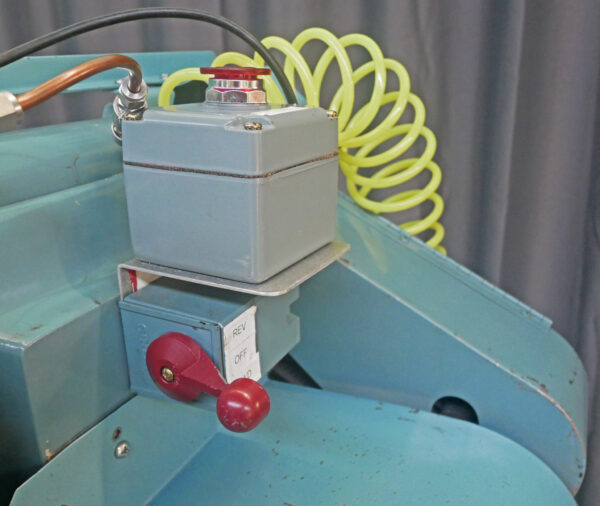

Belt and Cutter Guarding with Safety Interlock

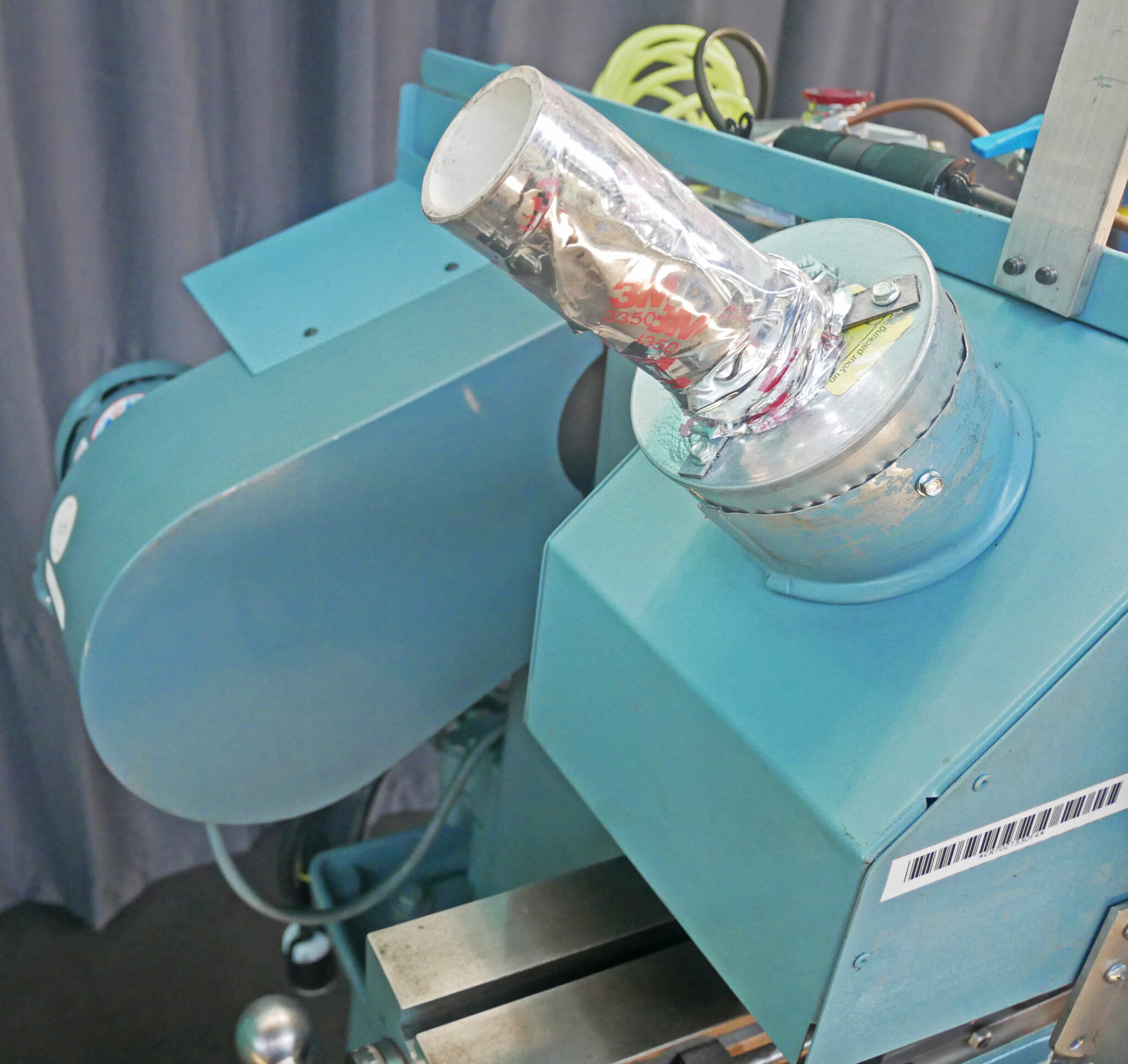

Dust Collector Connection
Pneumatic Chip Blower

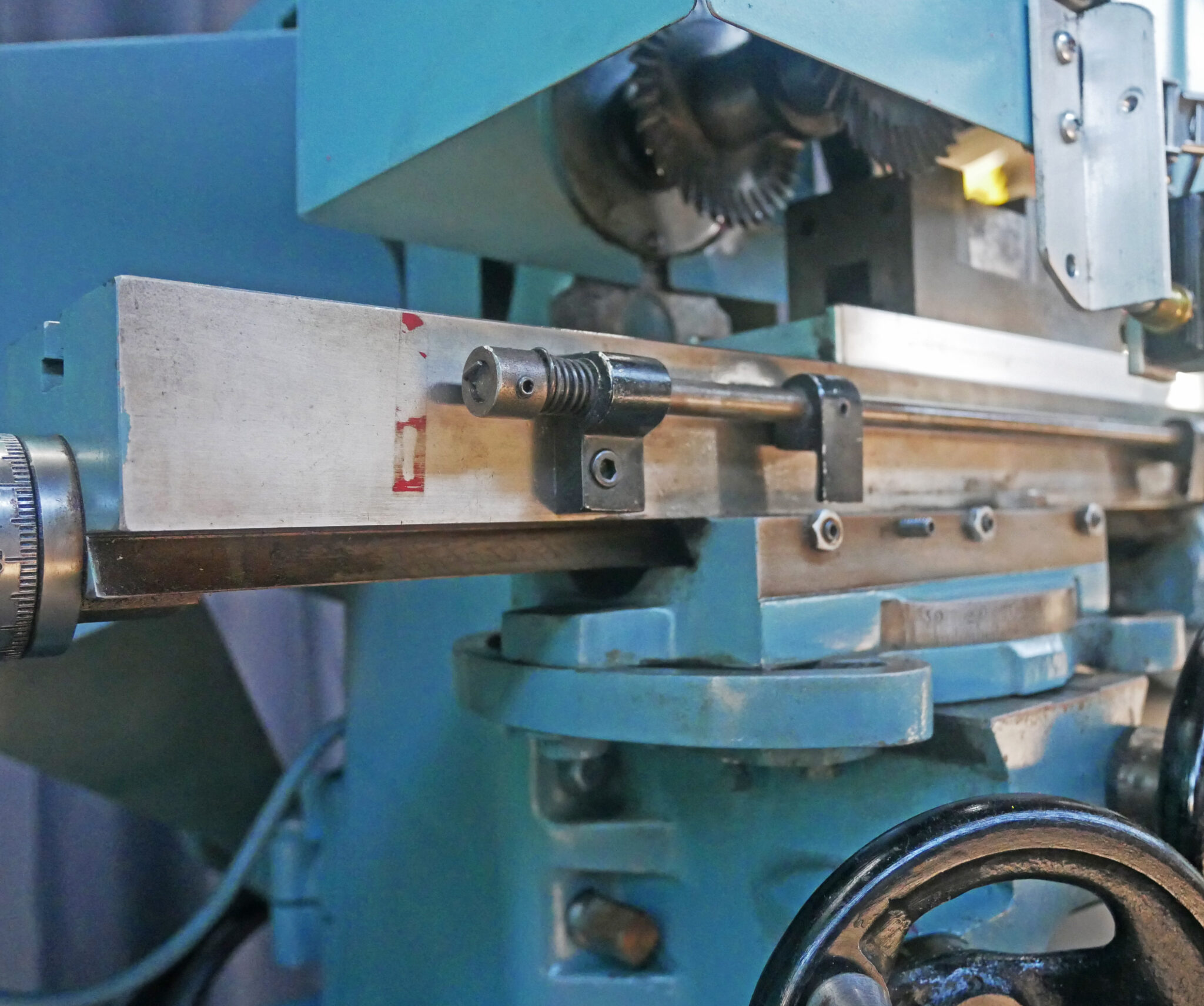

Longitudinal Table Feed (4)
Mechanical Specifications:
Weight: approx. 560 lbs.
FOB Our Baltimore, MD Warehouse
