Description

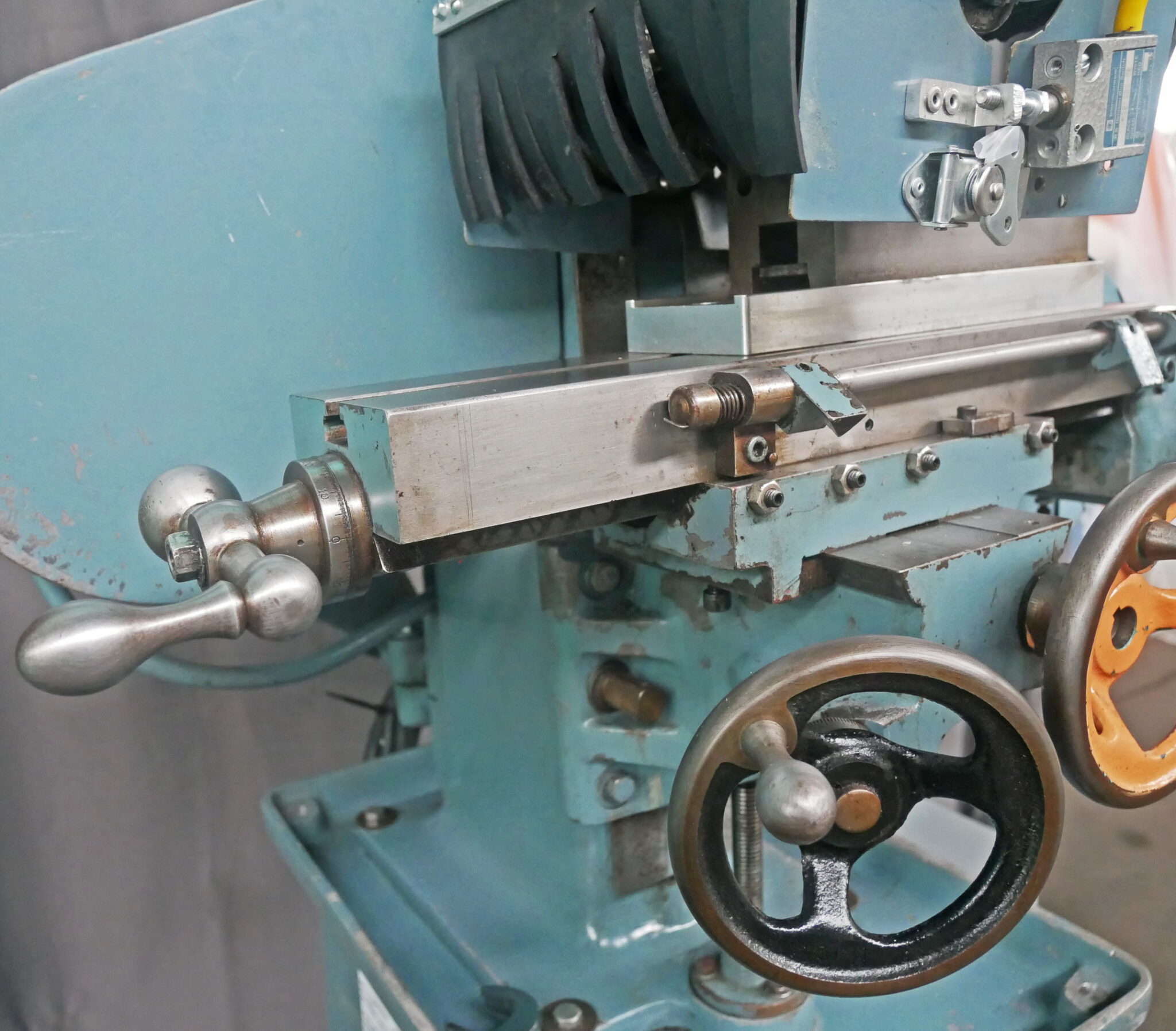

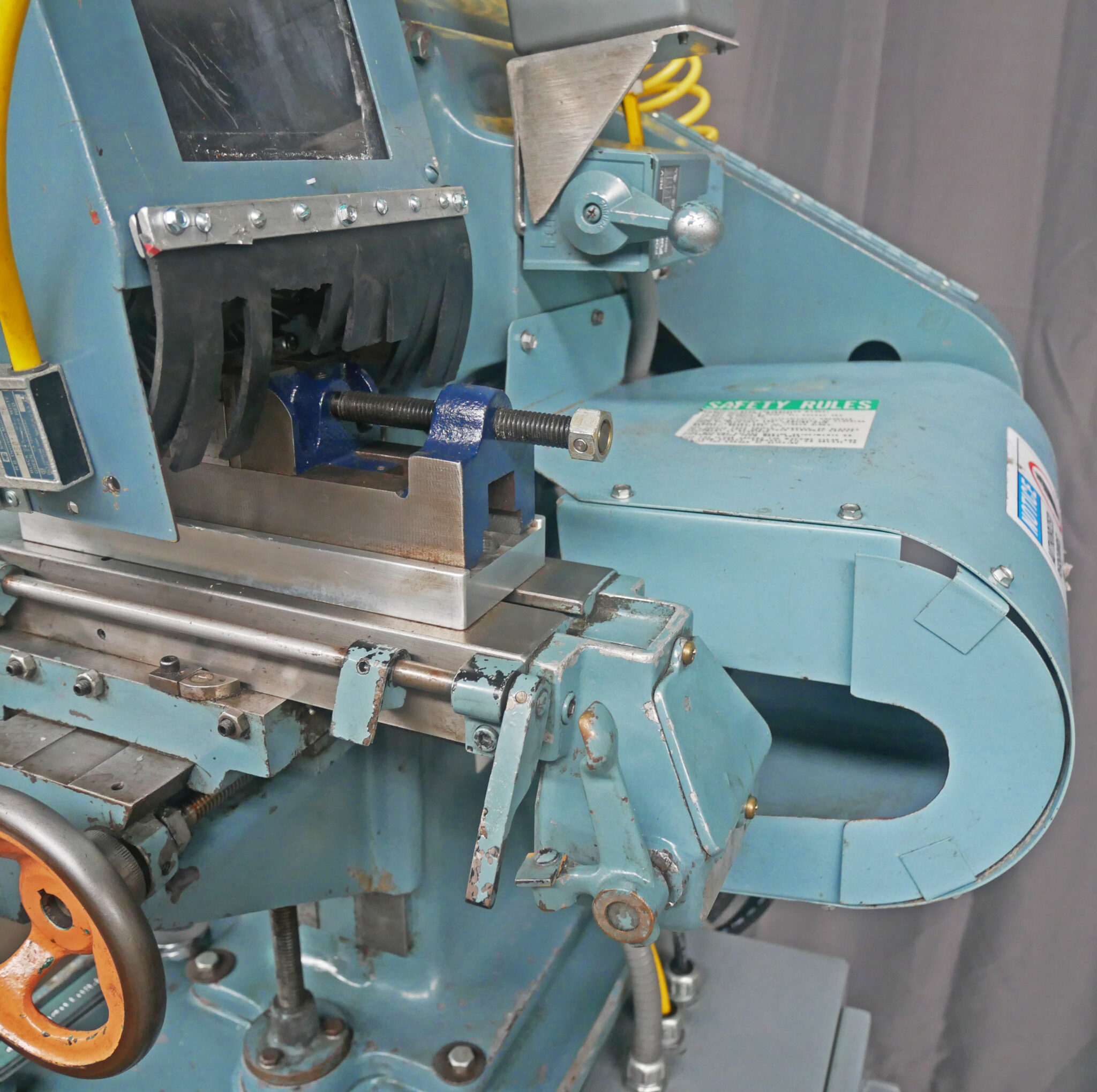

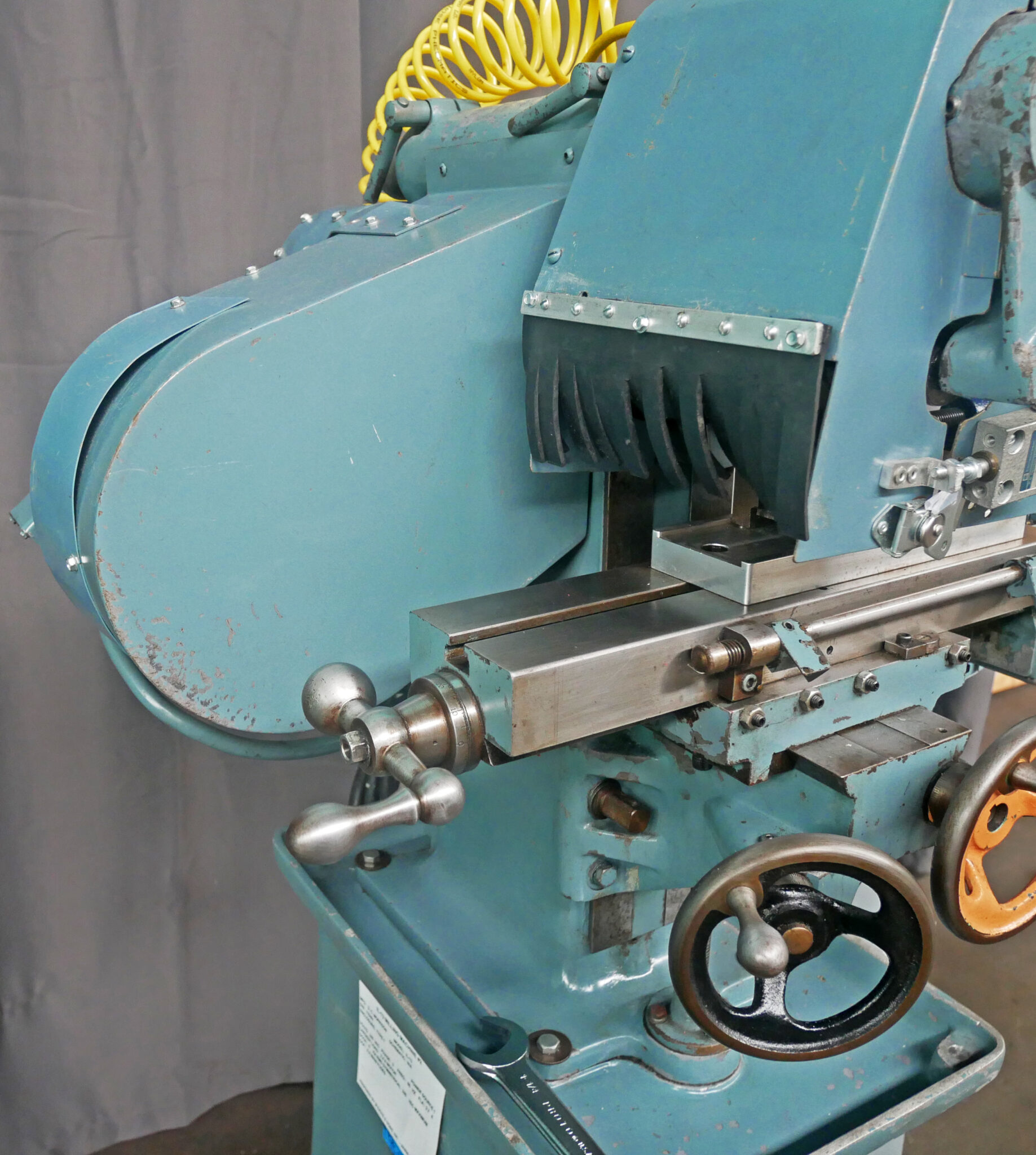

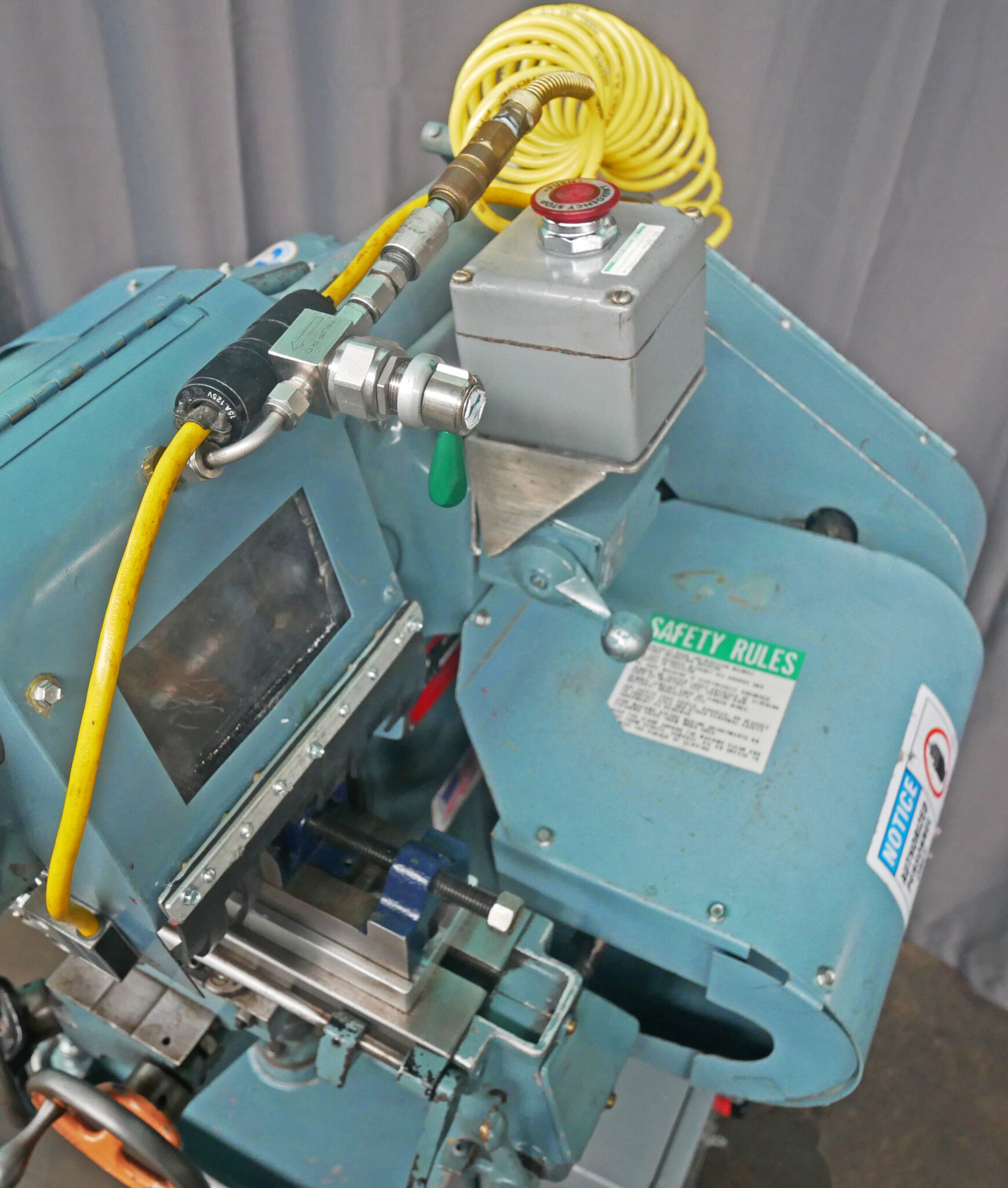

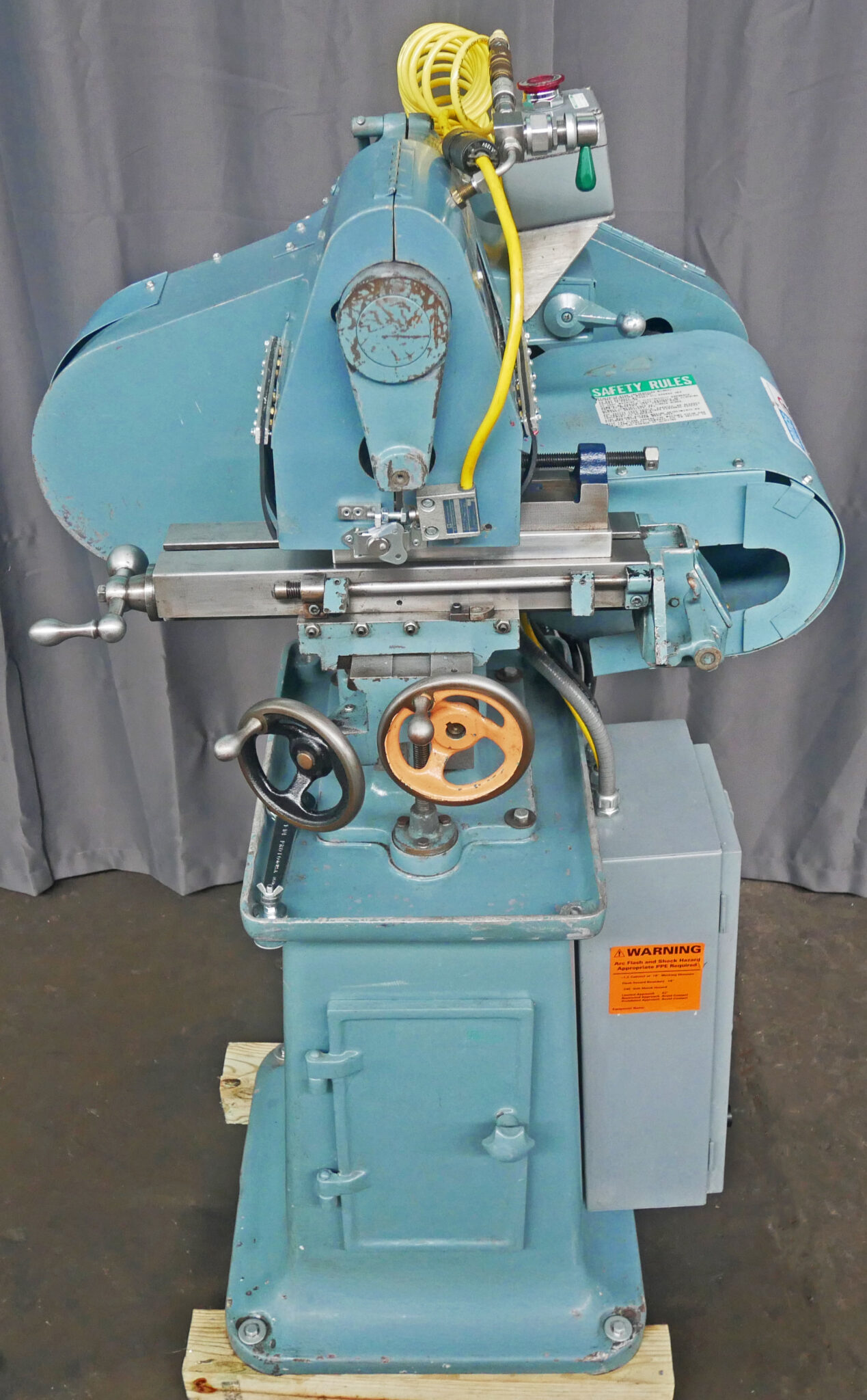

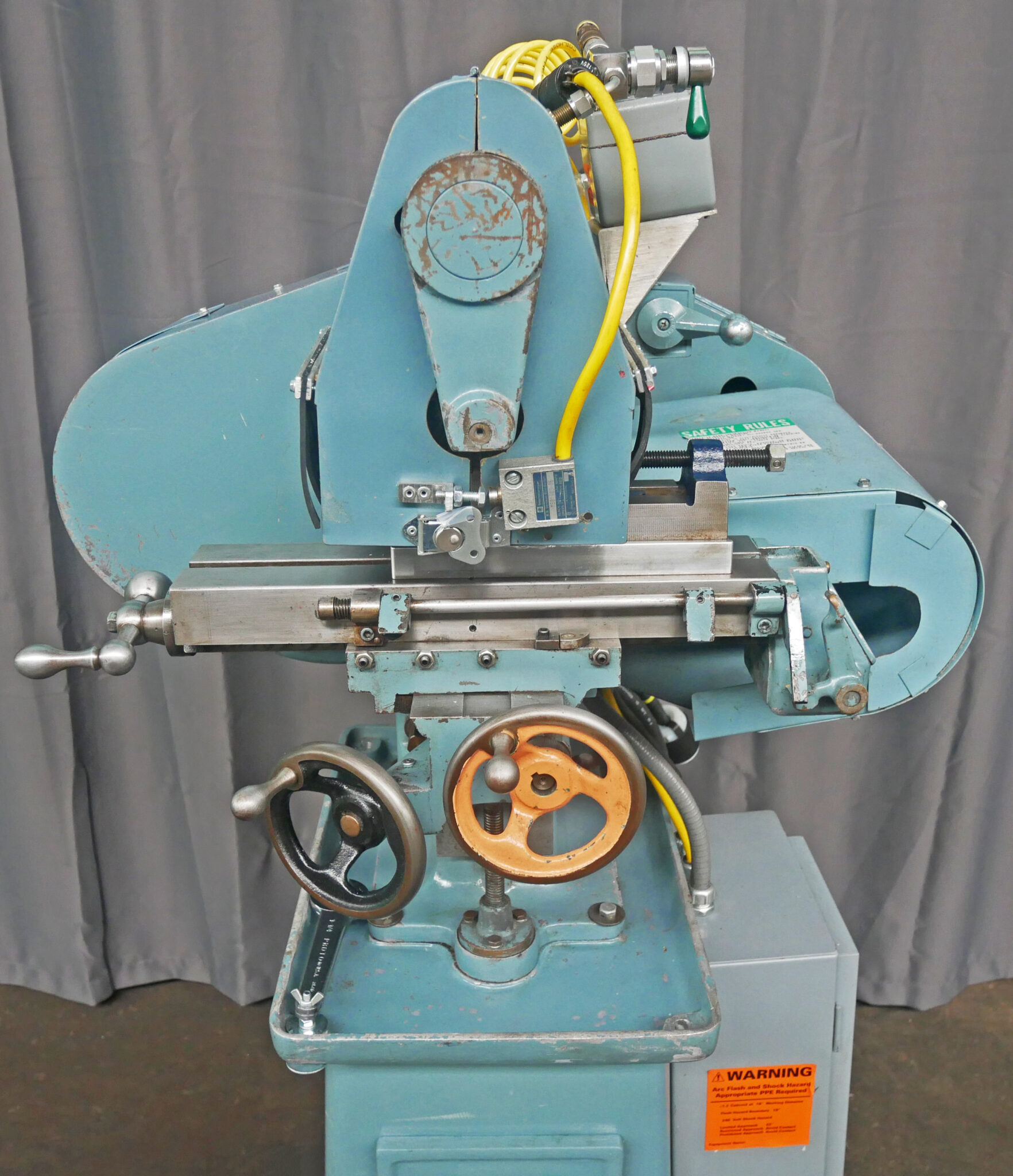

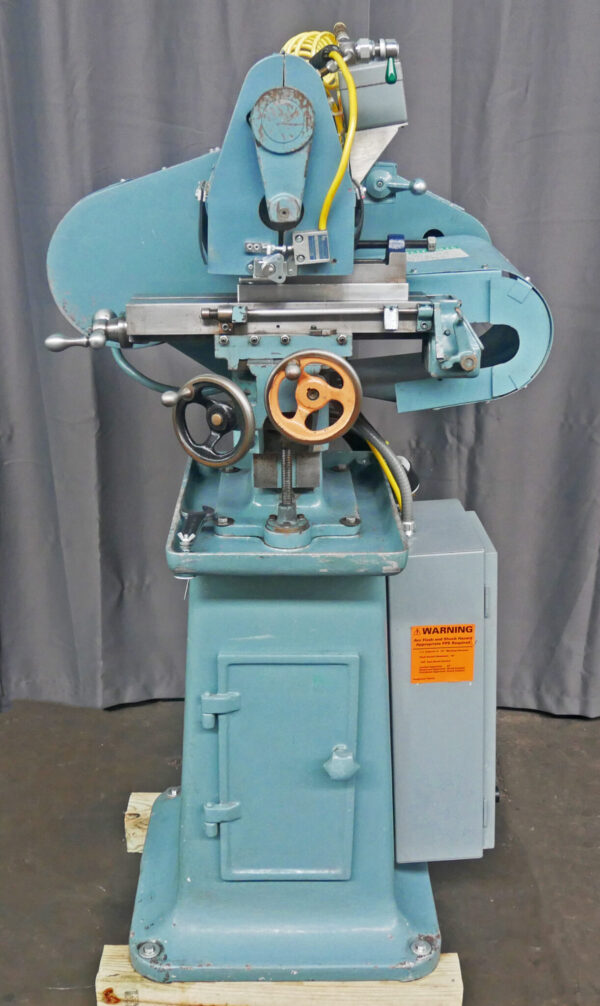

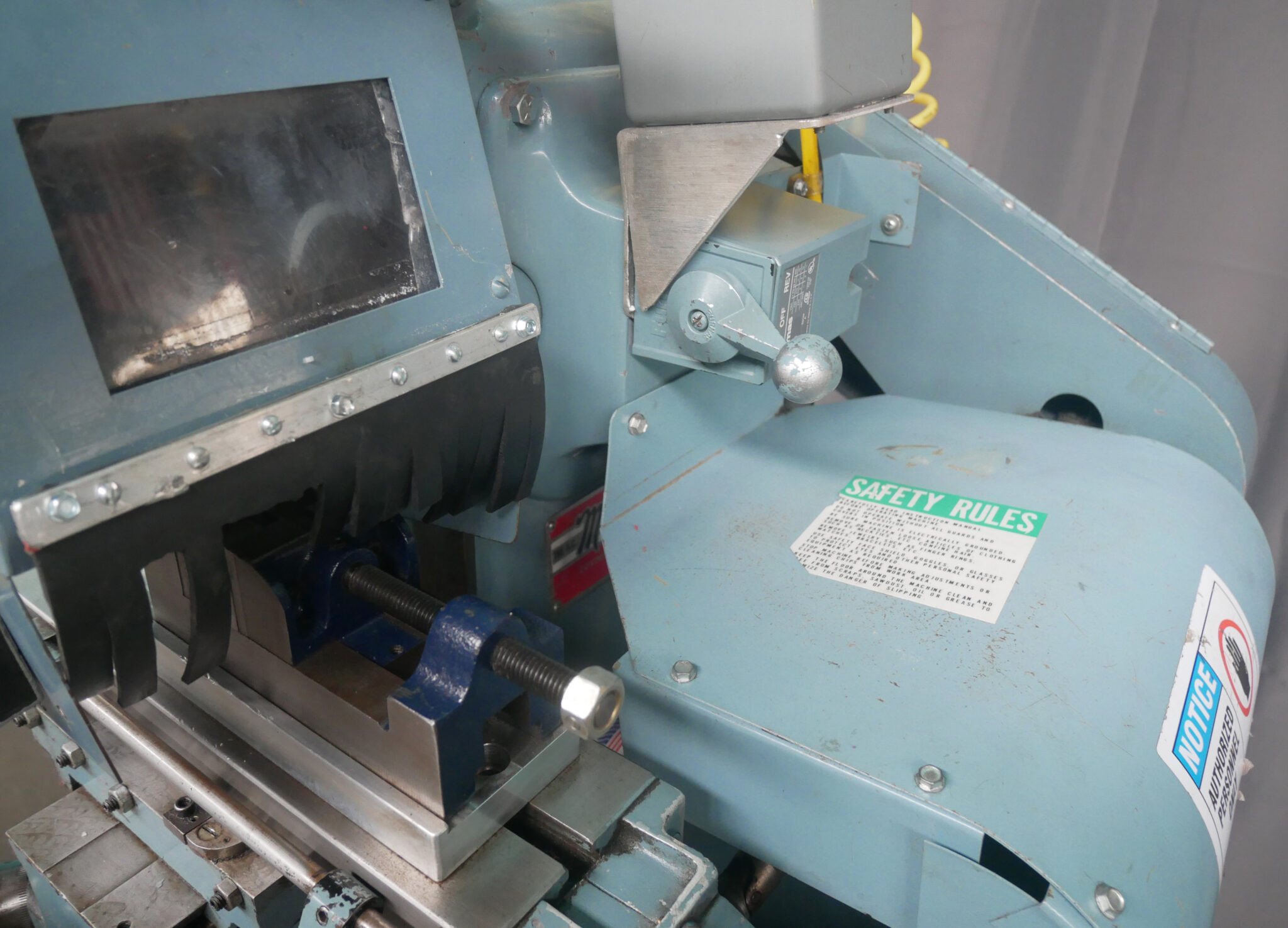

D.C. Morrison / Burke No. 4 Plain Milling Machine
Inventory # 9919-P
Model: No. 4
S/N: B-9541-M
Specifications:
Working Surface of Table: 3 3/4″ x 16″
Longitudinal Feed: 8″
Traverse Feed: 3″
Vertical Feed: 8″
Max. Distance Between Center of Spindle and Table: 8″
Width of T-Slot: 1/2″
Spindle Taper: BS #9
Spindle Speeds: (3) 66 – 2,875 RPM
Motor: 1/2 HP / 208-230v, 460v / 3ph
Equipment Included:
Baldor 1/2 HP, 3PH Motor
Plain Vise
Belt and Cutter Guarding with Safety Interlock
Pneumatic Chip Blower
Longitudinal Table Feed (2)
Mechanical Specifications:
Weight: approx. 560 lbs.
FOB Our Baltimore, MD Warehouse
