Description

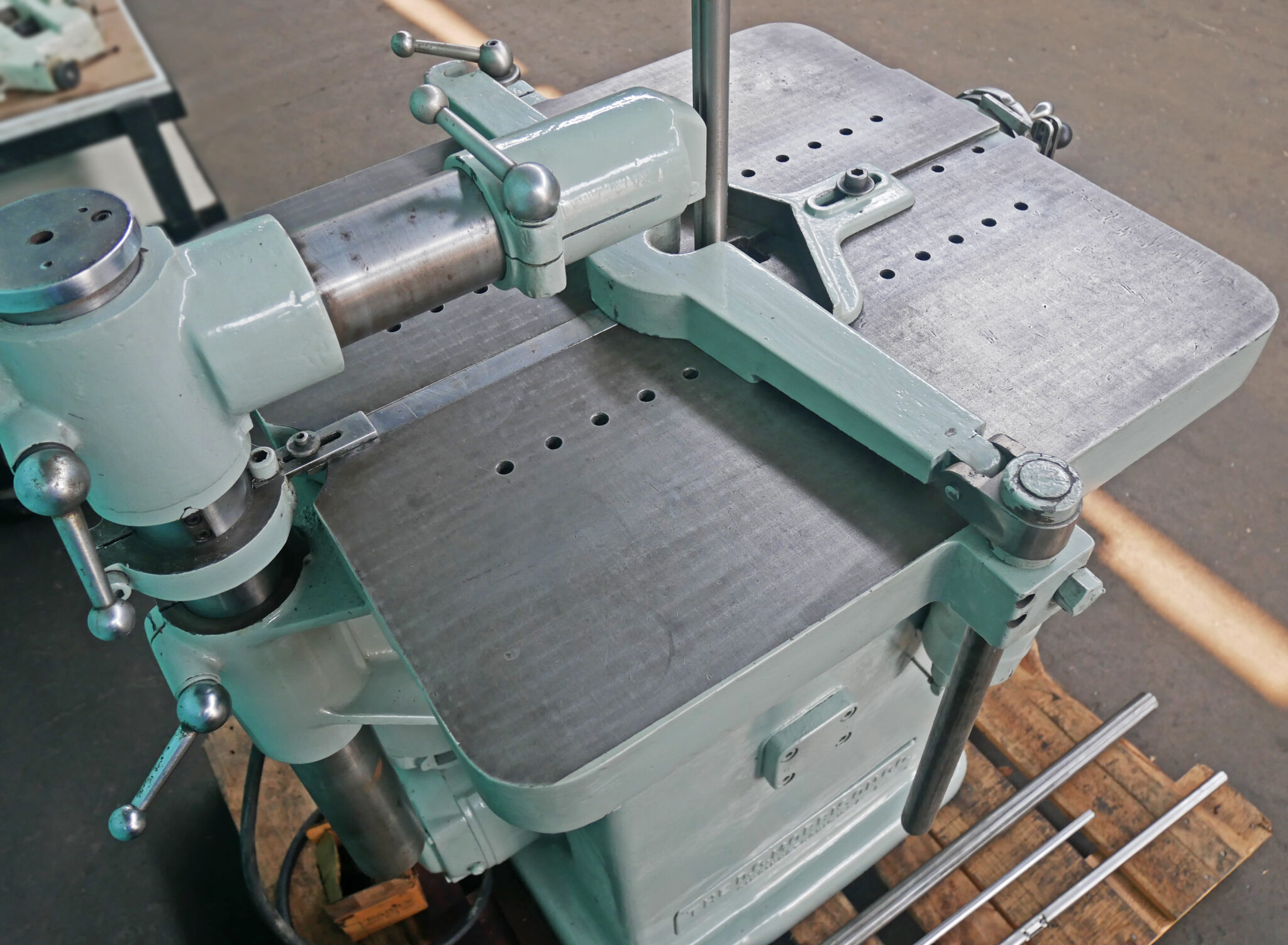

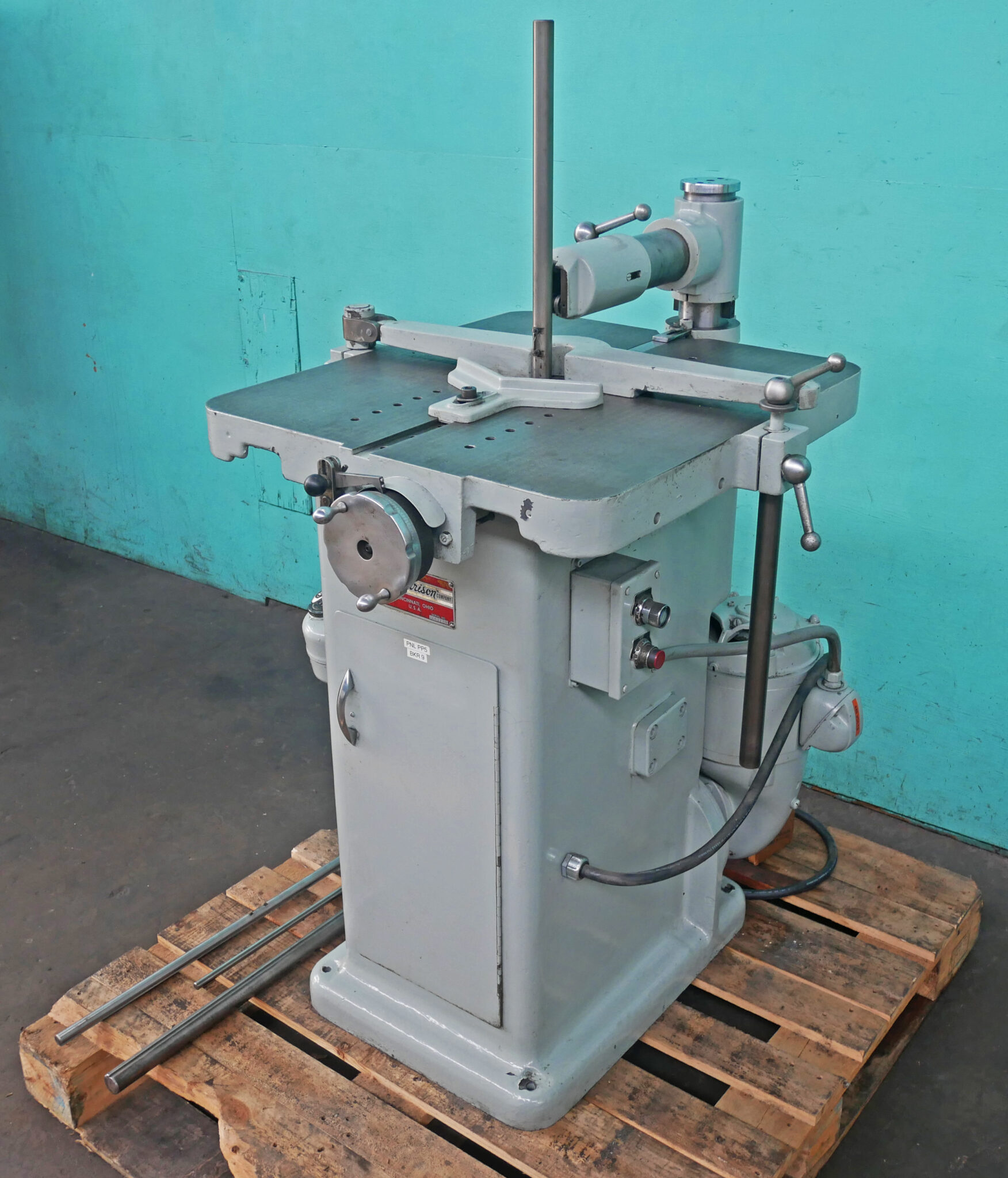

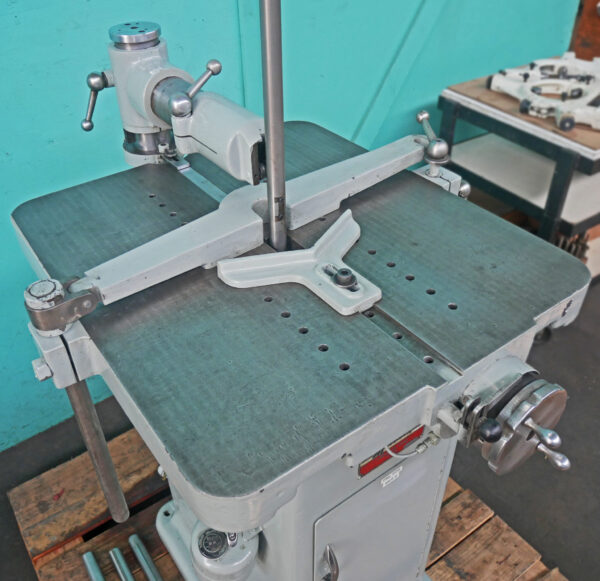

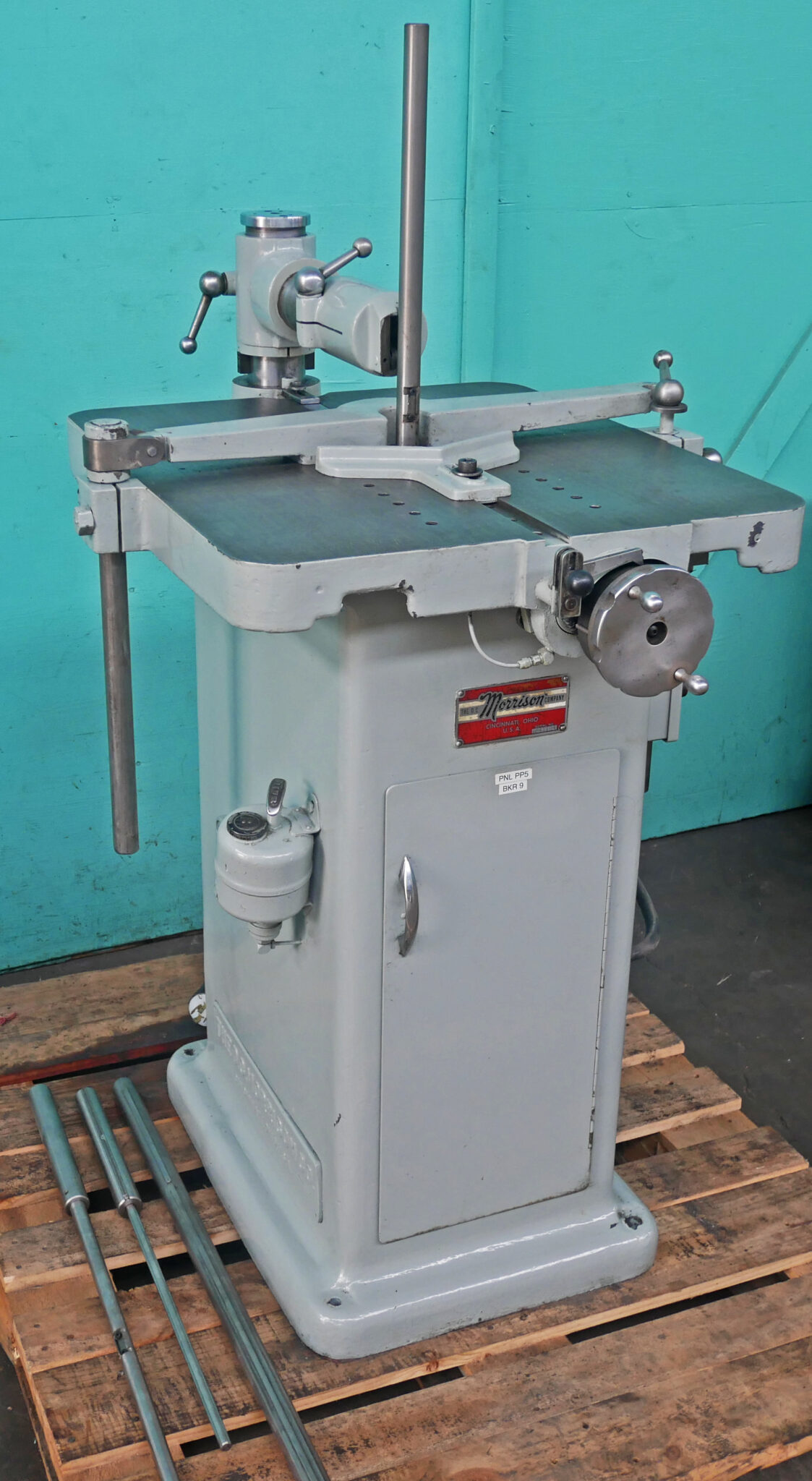

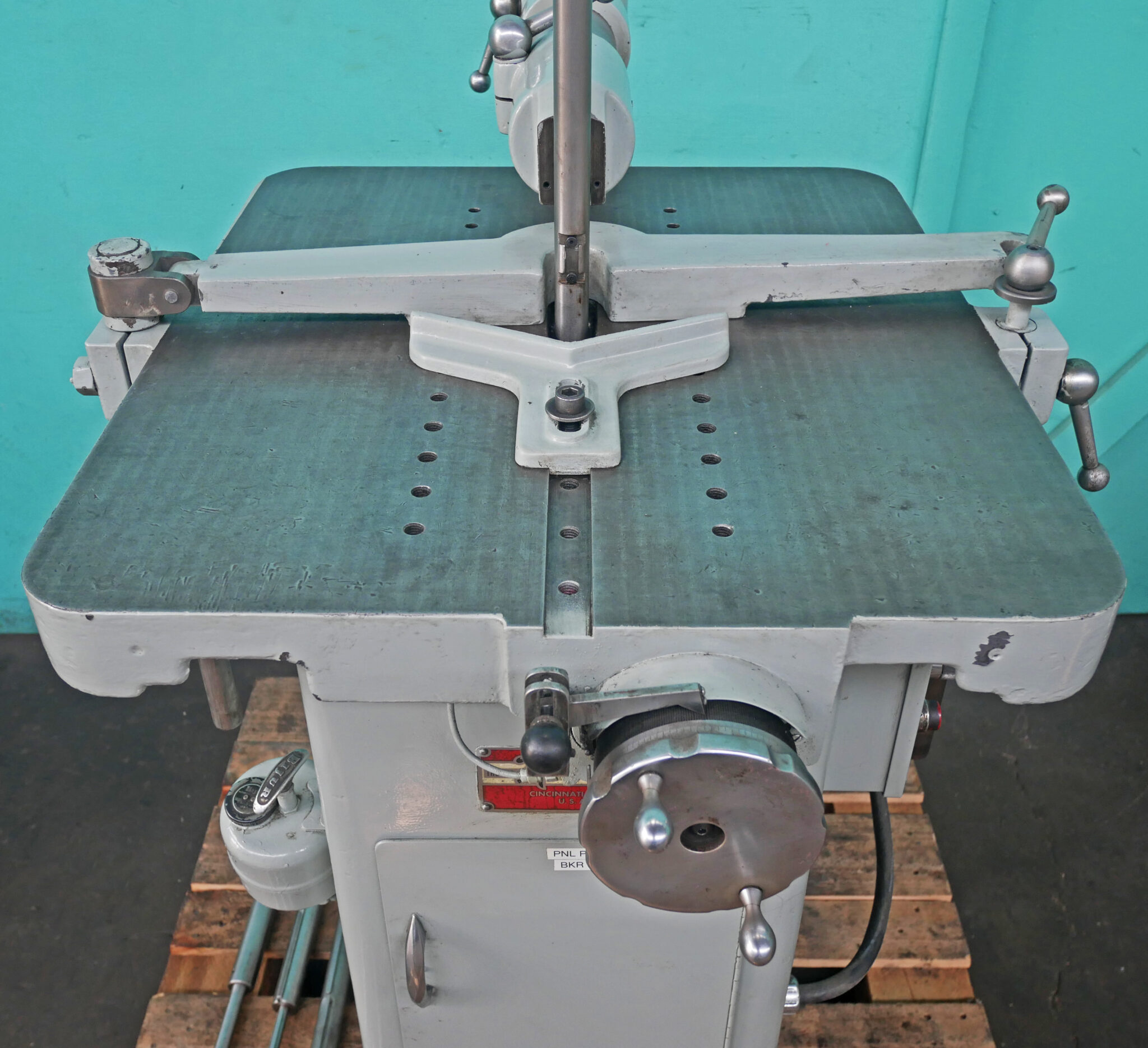

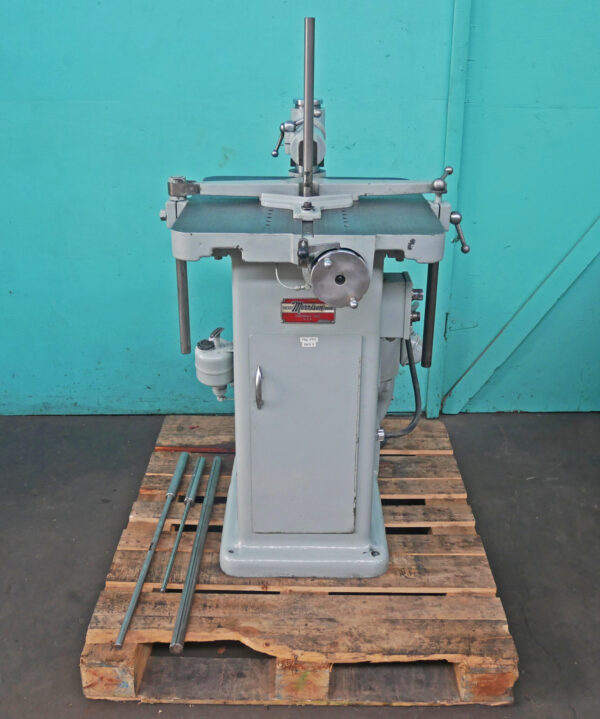

D.C. Morrison 1 1/4″ Keyseater
Inventory # 9163
Model: 1 1/4″ – with Heavy Duty Variable Speed Drive Unit
Specifications:
Cuts Keyways: 1/16″ – 1 1/4″
Max. Length of Cut: 9″
Length of Stroke: 3″, 4.5″, 6″, 7.5″, & 9″
Strokes per Minute: 34 SPM
Number of Feeds: .002″, .004″, .006″

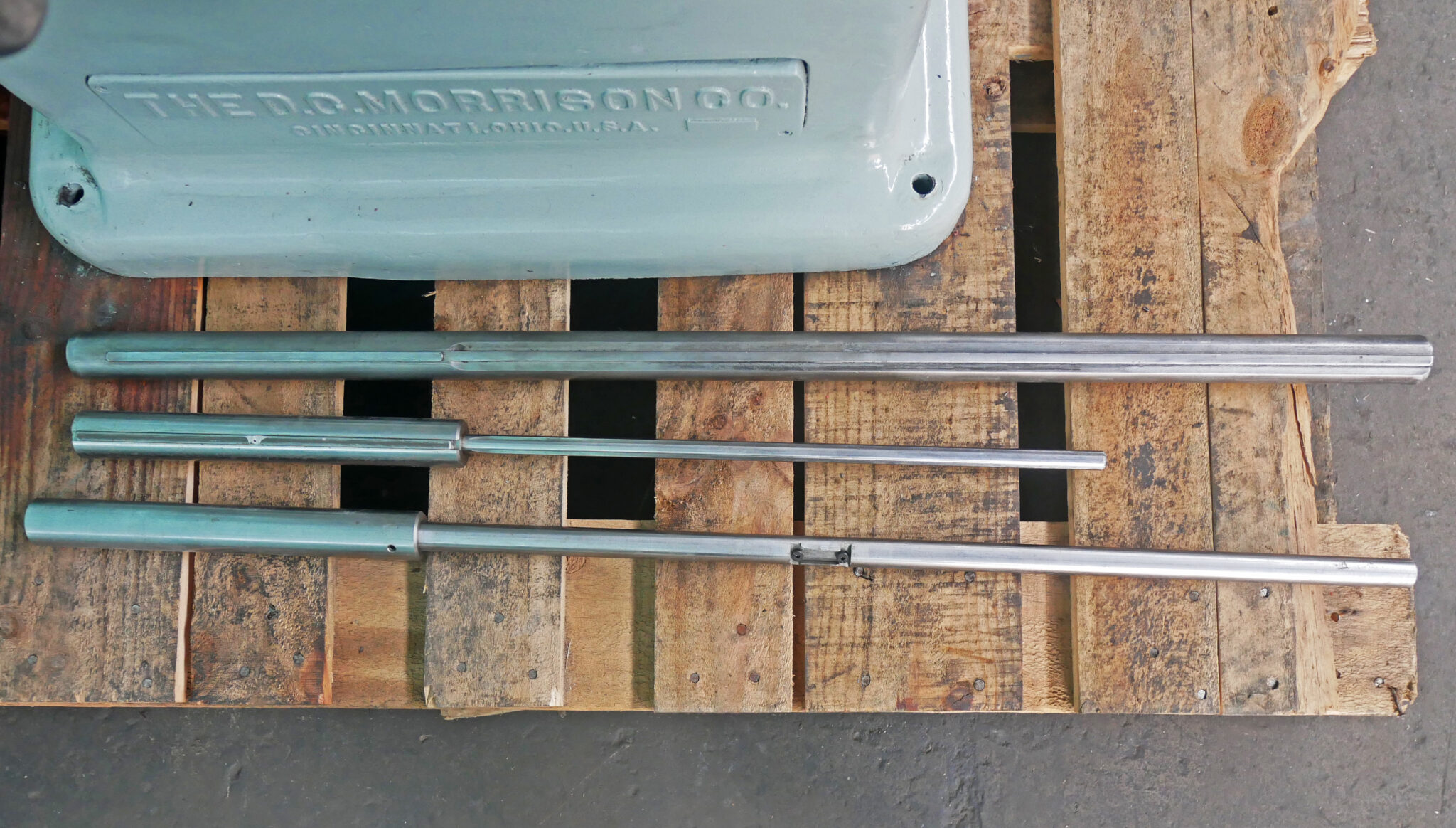

Largest Diameter Cutter Bar: 1 1/4″
Distance from 1″ Cutter to Column: 16 1/4″
Max. Distance Under Standard Clamps: 14″
Distance Between Clamps: 25 1/2″

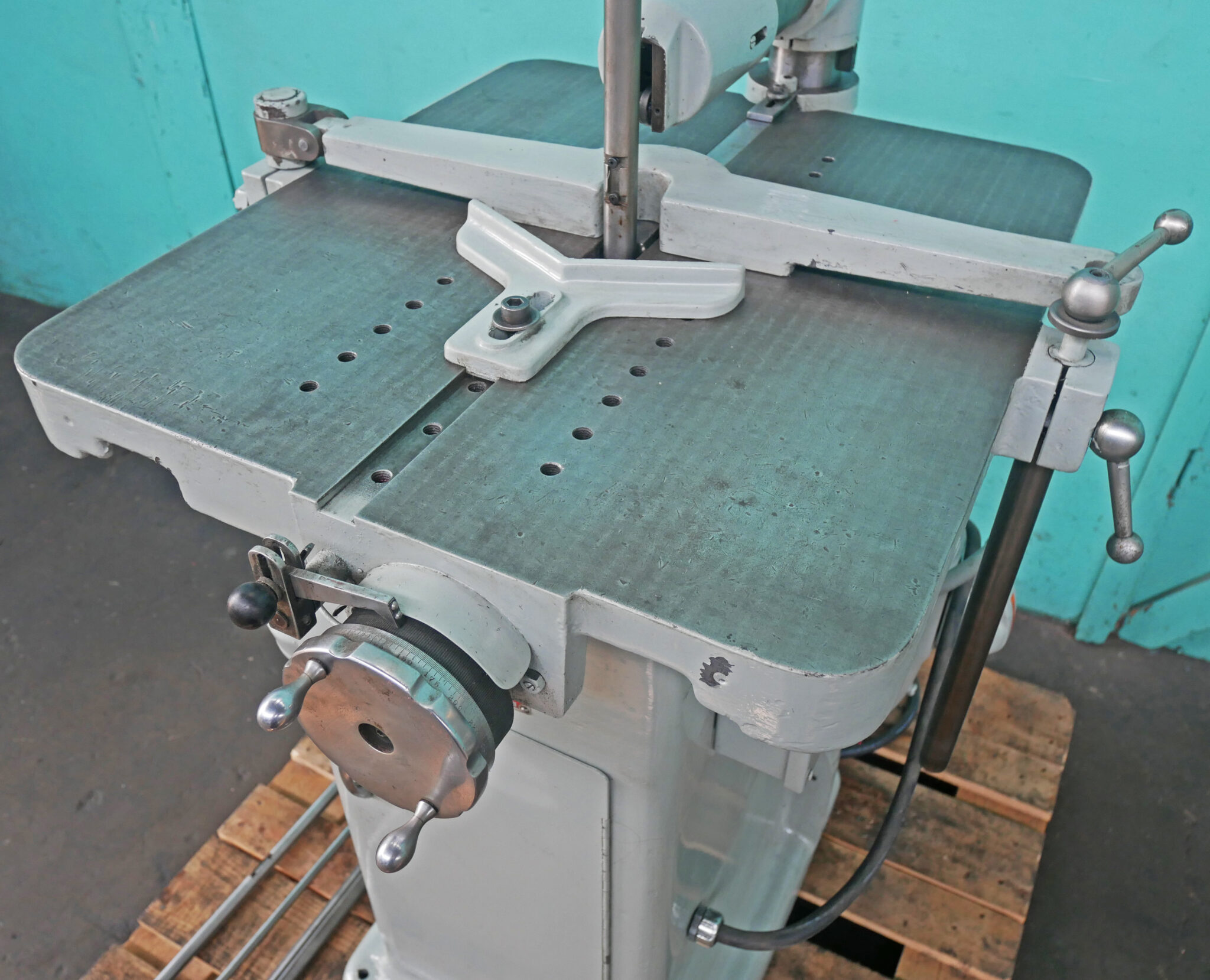

Table Size: 24″ x 27″
Table Height from Floor: 36″
Motor: 2 HP / 220v, 440v / 3ph
Standard Features:
Heavy Duty Variable Speed Drive Unit
Automatic Feed
Automatic Stop
Automatic Relief
Quick Set-Up
Uses Single Tooth Cutters
Adjustable Stroke
Automatic Centering

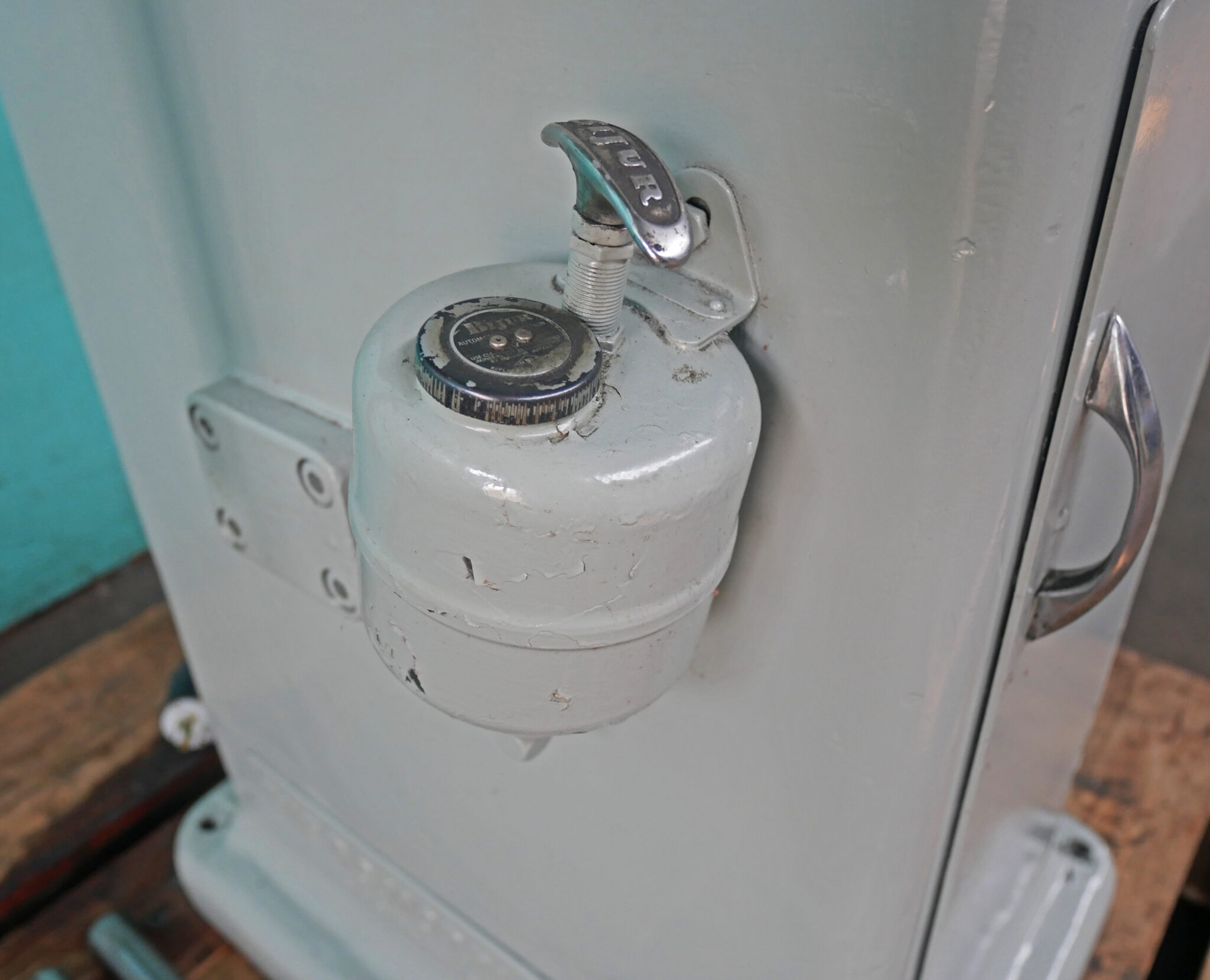

Automatic Lubrication
Mechanical Specifications:
Dimensions: 36″ x 48″ x 54″ H
Shipping Weight: approx. 1,150 lbs.
FOB Our Baltimore, MD Warehouse
