Description

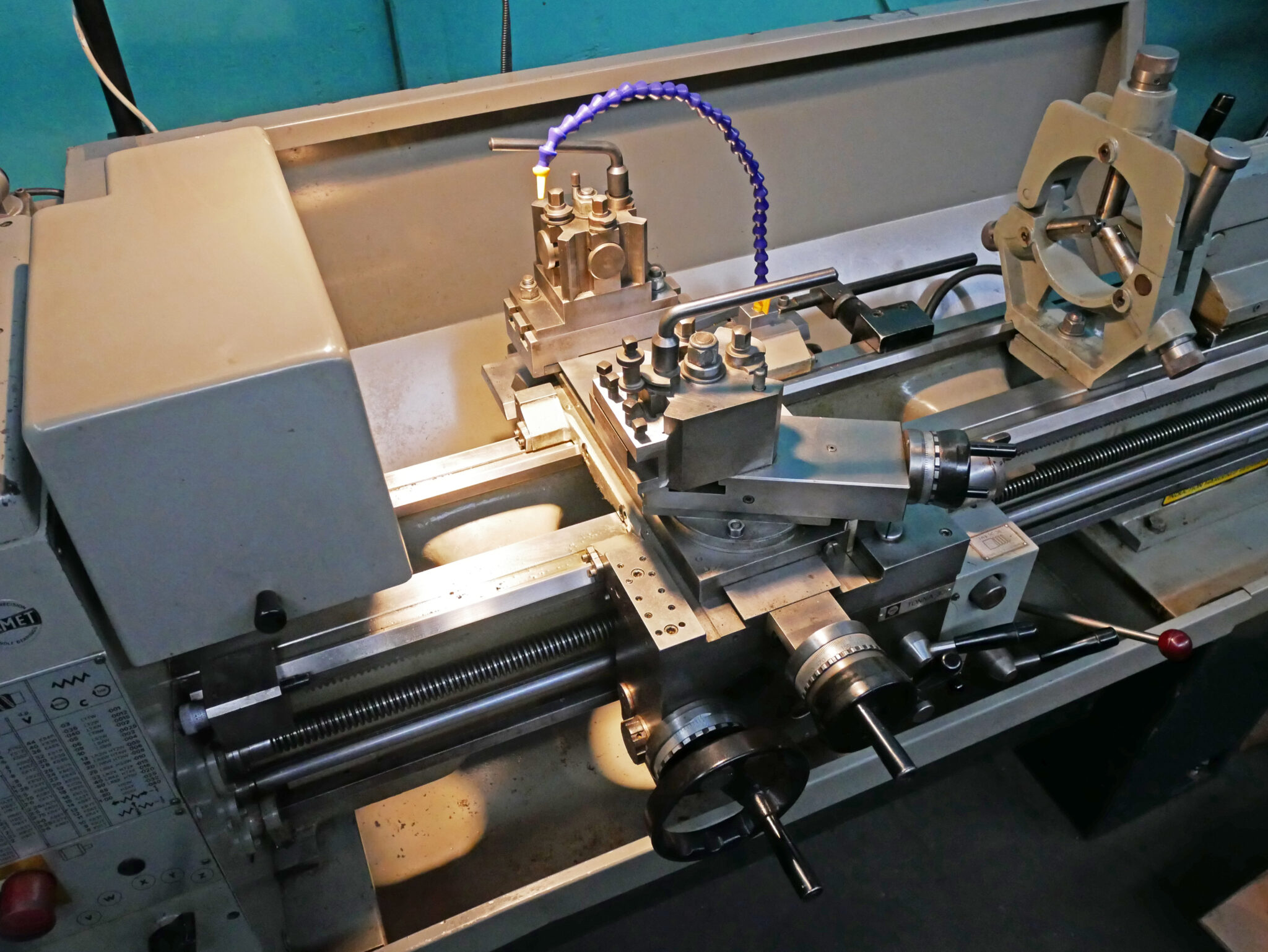

Clausing Colchester 13″ x 40″ Geared Head Lathe
Inventory # 9983
Model: 13
S/N: 5/0014/13066
Made in England
Specifications:
Swing Over Bed: 13 1/4″
Swing Over Cross Slide: 8 1/4″
Bar Capacity Thru Spindle: 1 5/8″
Distance Between Centers: 40″
Spindle Nose: 4″ D-1 Camlock
Hole Thru Spindle: 1 21/32″
Spindle Center: 3 MT

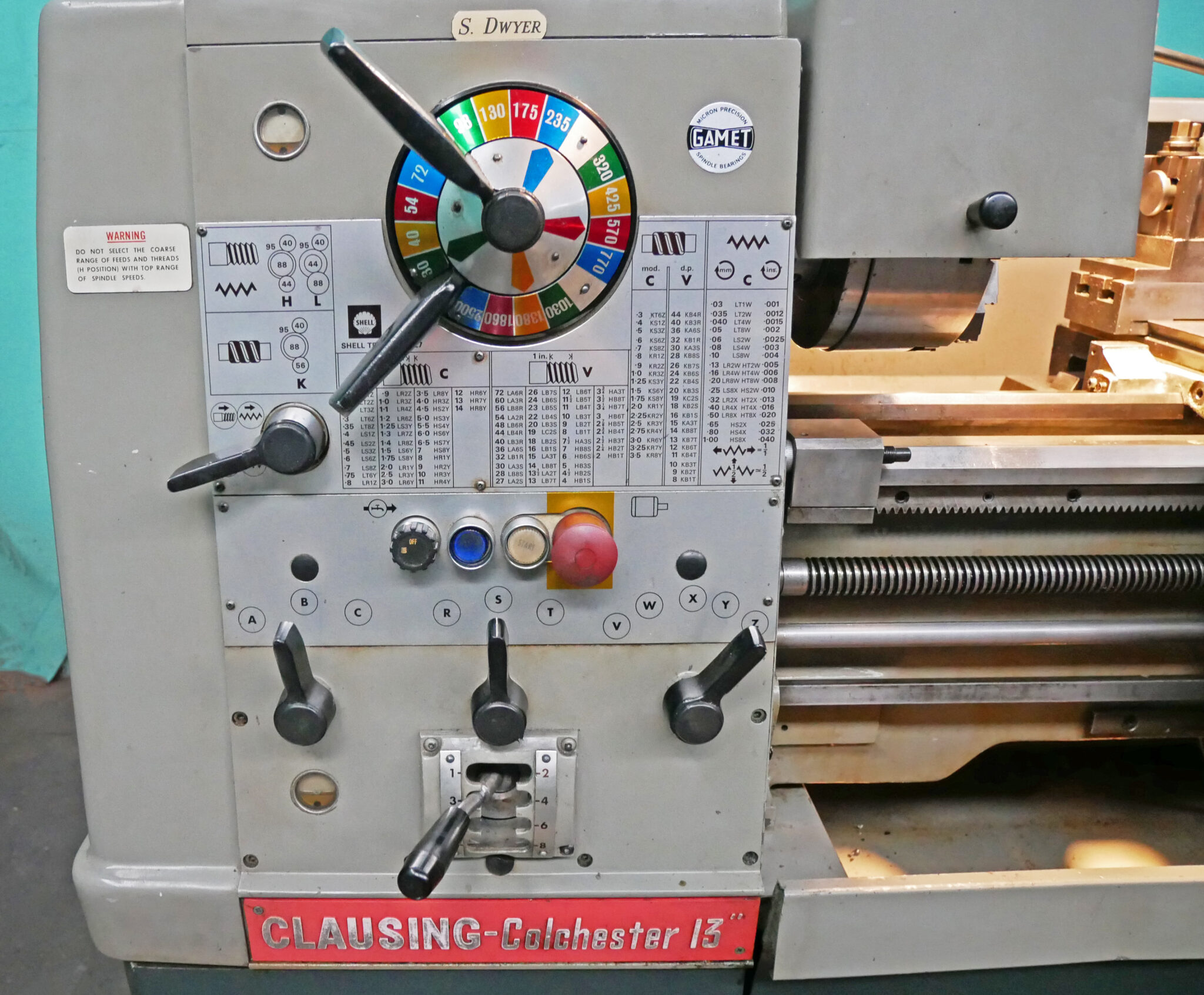

Speeds:
Range 1: 30 – 1,030 RPM
Range 2: 40 – 1,380 RPM
Range 3: 54 – 1,860 RPM
Range 4: 72 – 2,500 RPM
US Standard Threads: (45) 2 – 72 IPR
Metric Threads: (39) .2 – 14 mm
Module Threading: (18) 0.3 – 3.5 Mod
Diametral Threading: (21) 8 – 44 D.P.
Longitudinal Feeds:
Inch: 0.001″ – 0.040″
Metric: 0.03 – 1.0 mm
Cross Feeds: .0005″ – .020″
Leadscrew Diameter: 1 1/8″ – 4 TPI
Cross Slide: 19 1/8″ x 5 7/8″ Wide
Cross Slide Travel: 8 1/4″
Compound Rest Travel: 3 3/4″
Tailstock Center: 3 MT
Spindle Travel: 5 3/4″
Bed Width: 9 1/8″
Bed Ways, Induction Hardened: 2V, 2 Flat
Motor: 5 HP / 220v / 3ph
Equipment Included:

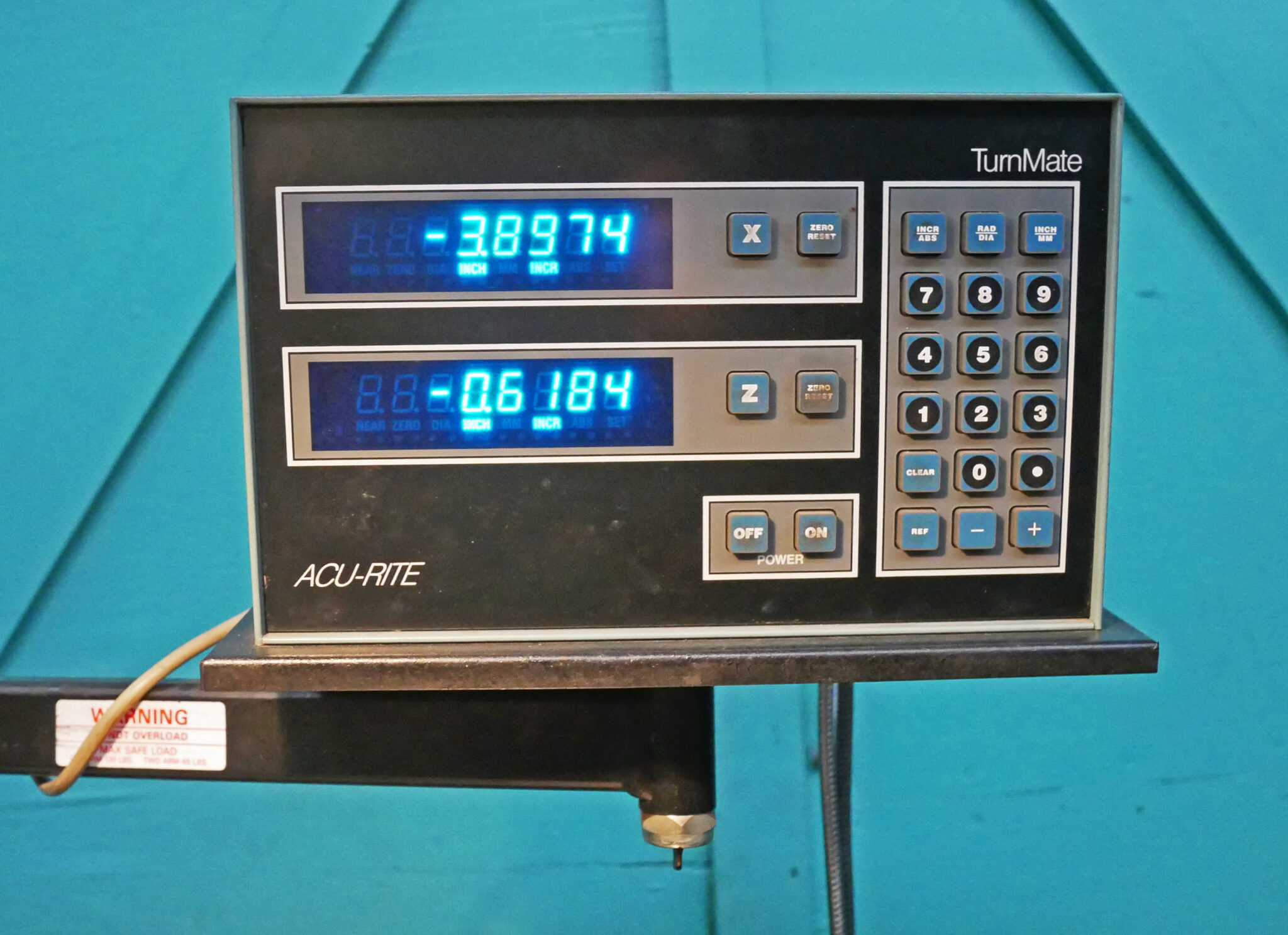

Acu-Rite 2-Axis Digital Readout
Ainjest Rapid Threading Attachment
Taper Attachment

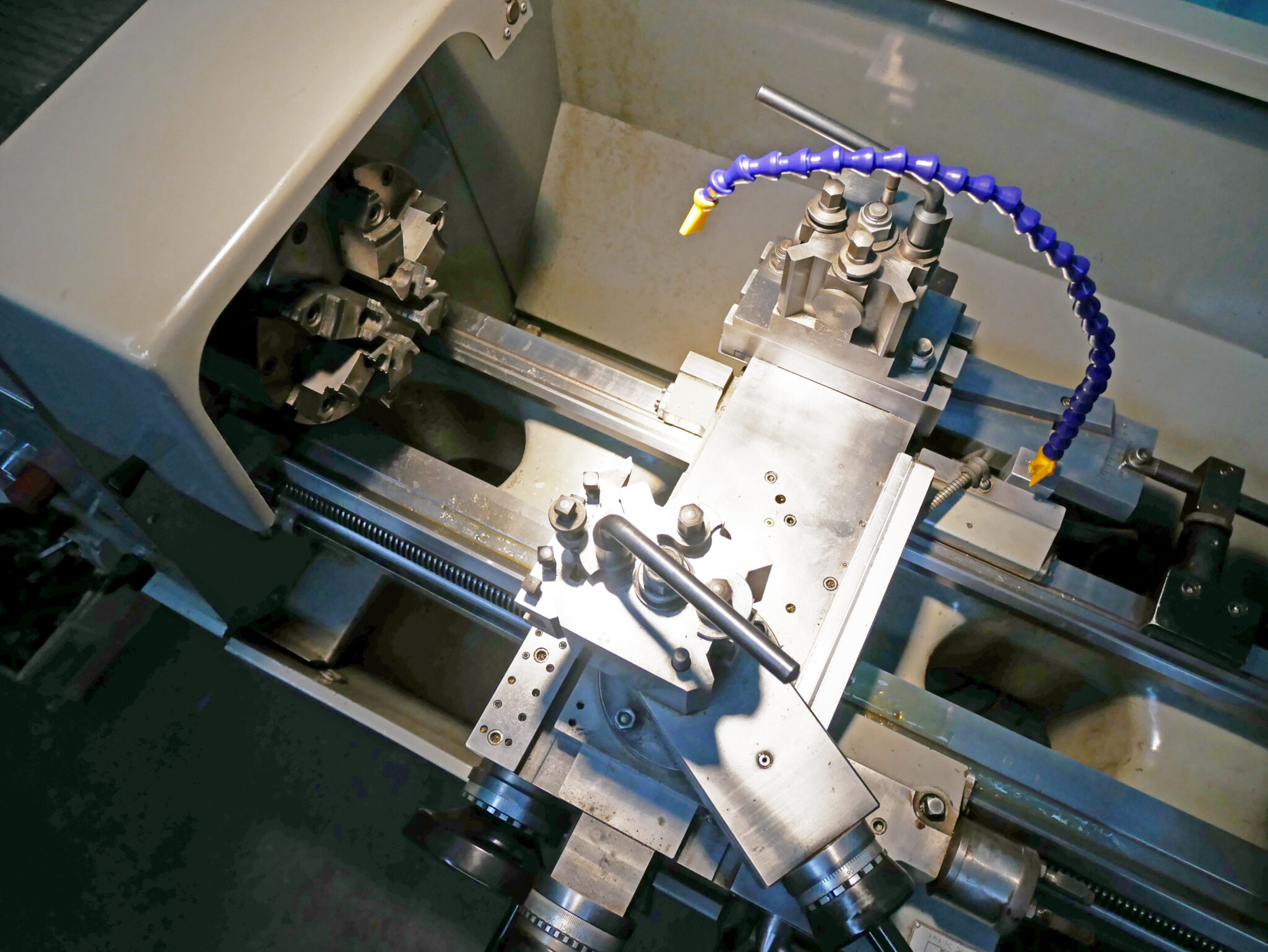

Dual Tool Post Cross-Slide with Quick Change Tool Posts
8″ Steady Rest
Turret Carriage Stop

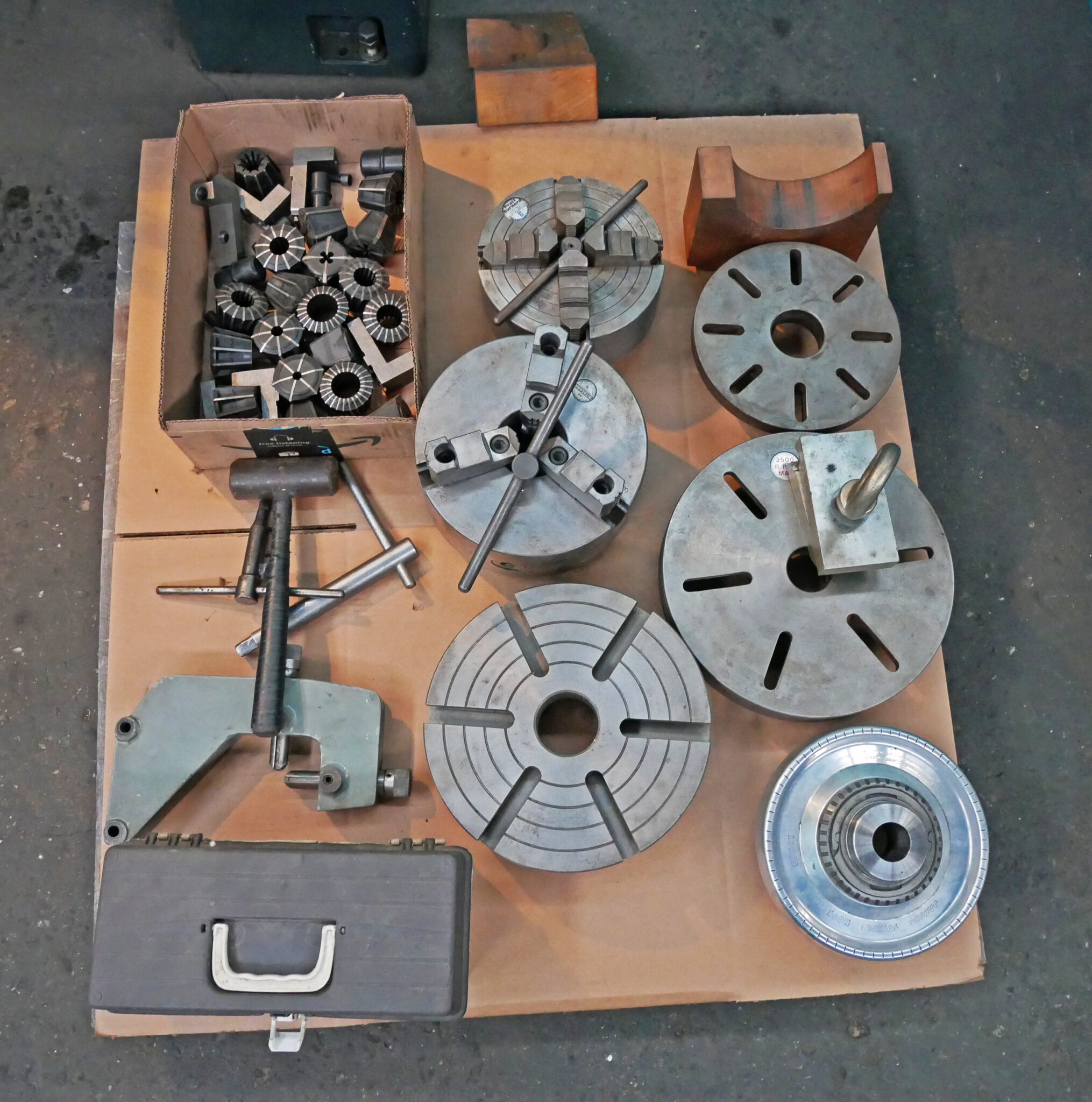

8 1/4″ 6-Jaw Chuck
8″ 4-Jaw Chuck
9″ 3-Jaw Chuck
5-C RubberFlex Collet Chuck with Assorted Collets
(3) Face Plates (9″, 11″, and 12″)

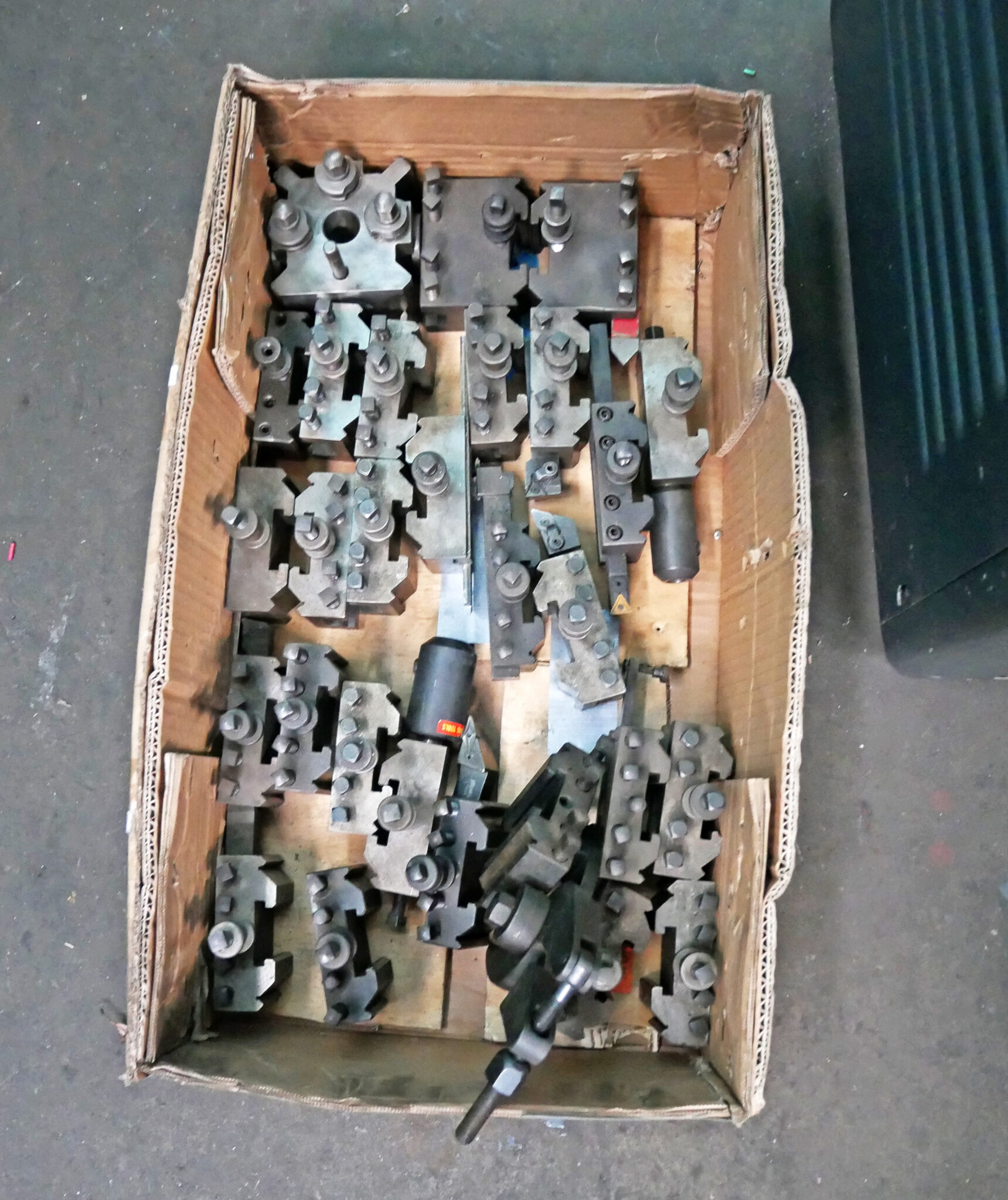

Assorted Quick Change Tool Holders
Coolant Pump
Halogen Work Light
Chuck Guard
Mechanical Specifications:
Dimensions: 78″ x 37″ x 48″ H
Weight: approx. 1,850 lbs.
FOB Our Baltimore, MD Warehouse
