Description

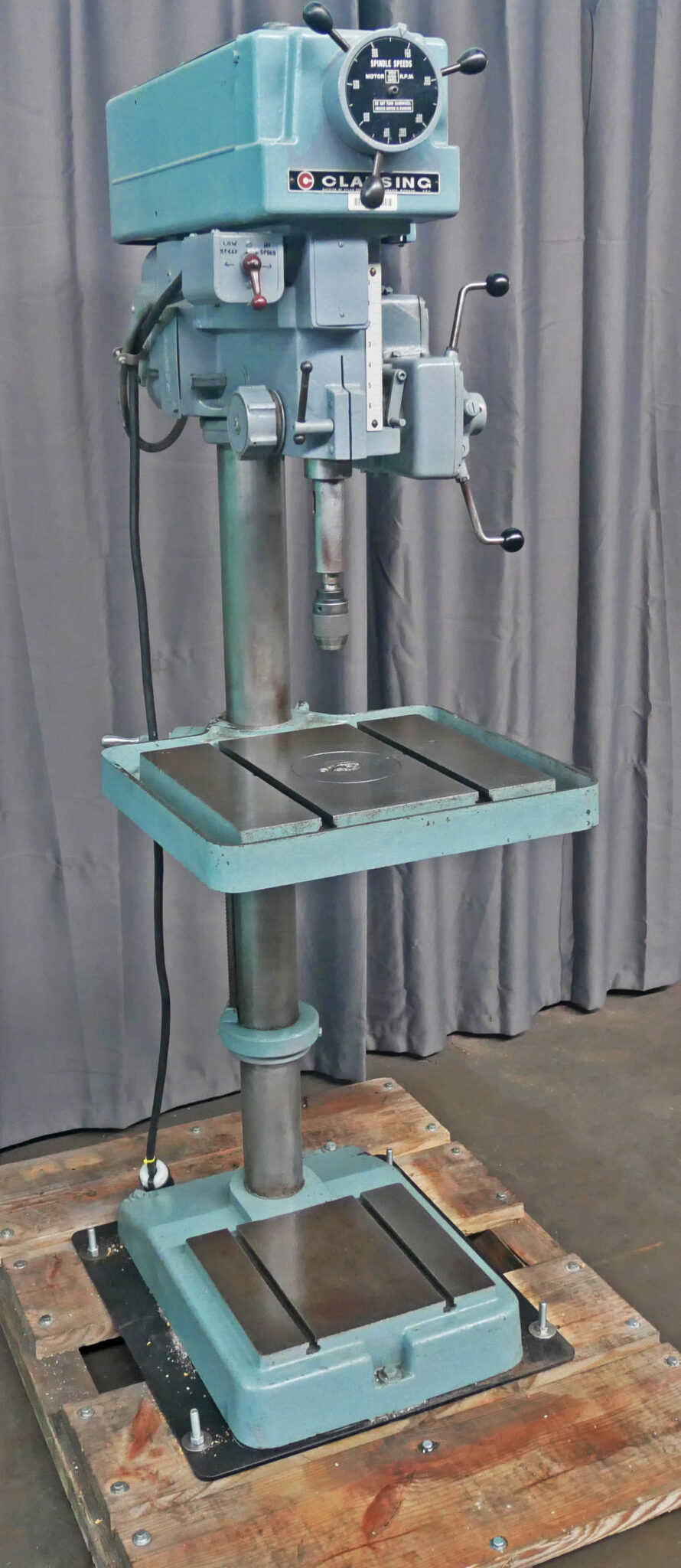

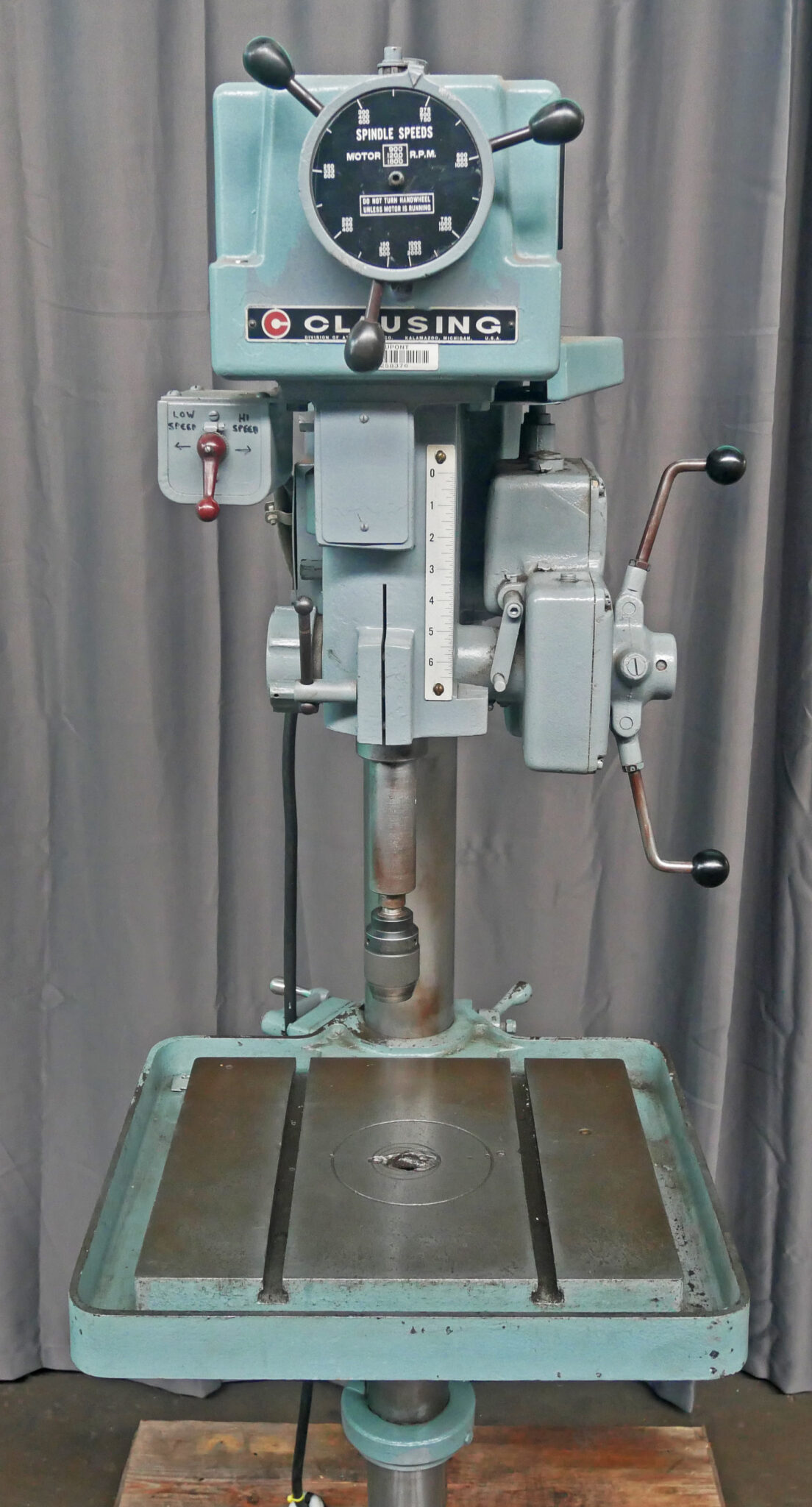

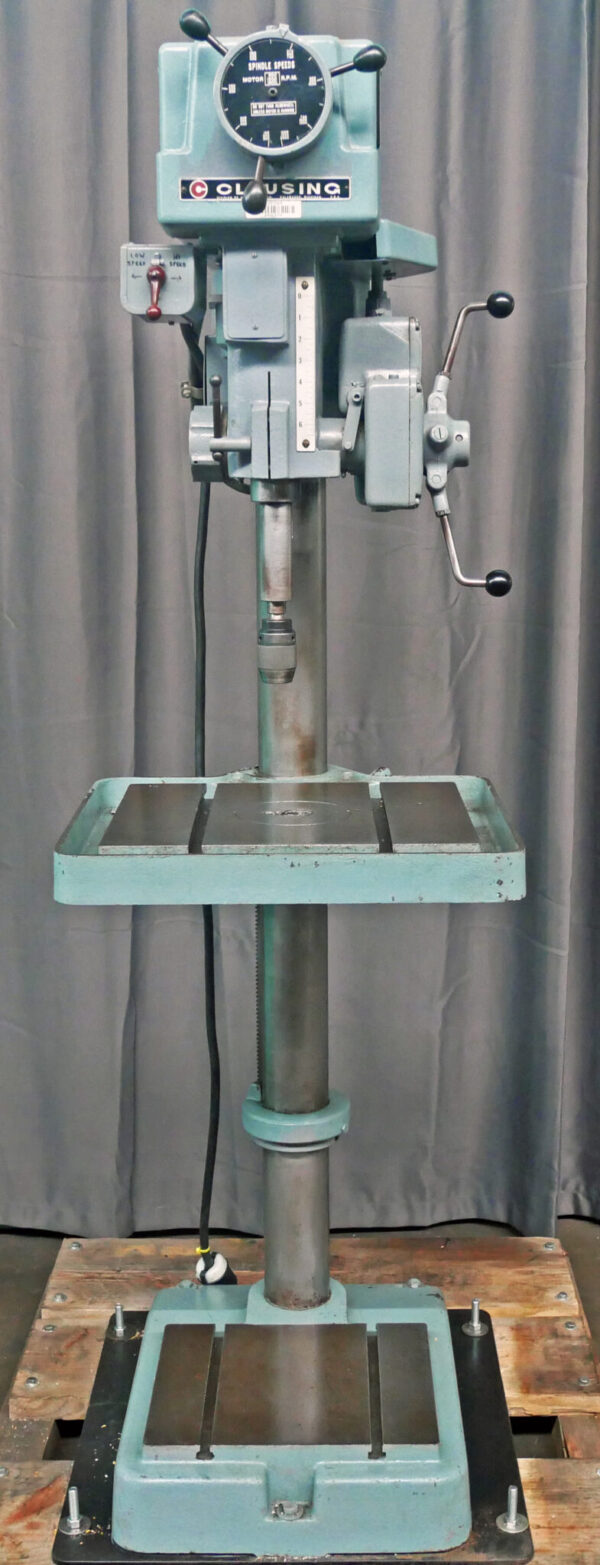

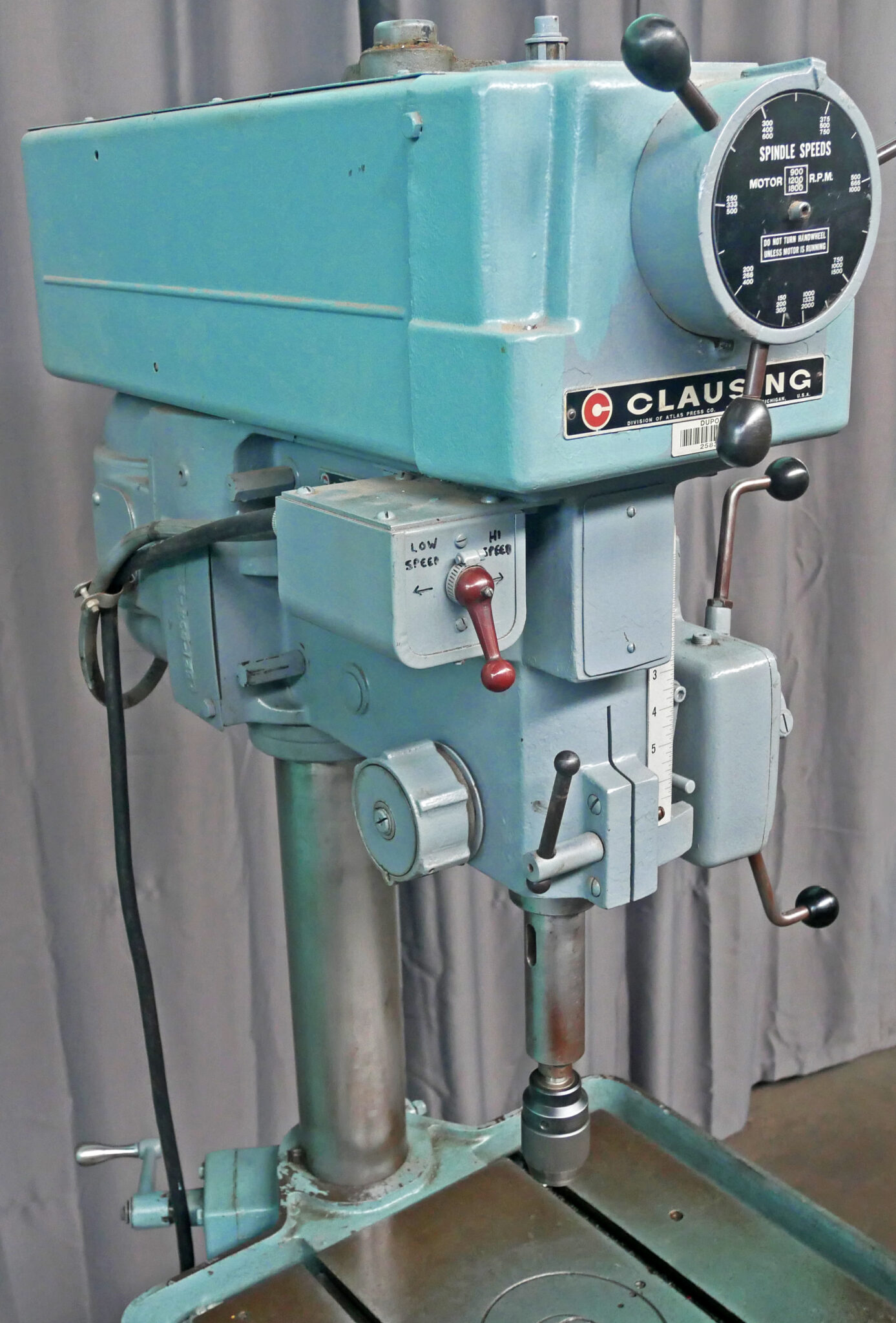

Clausing 20″ Floor-Style Drill Press, 2276
Inventory # 9917-P
Model: 2276
S/N: 511958
Specifications:
Swing: 20″
Spindle Taper: 3 MT
Spindle Travel: 6 1/2″

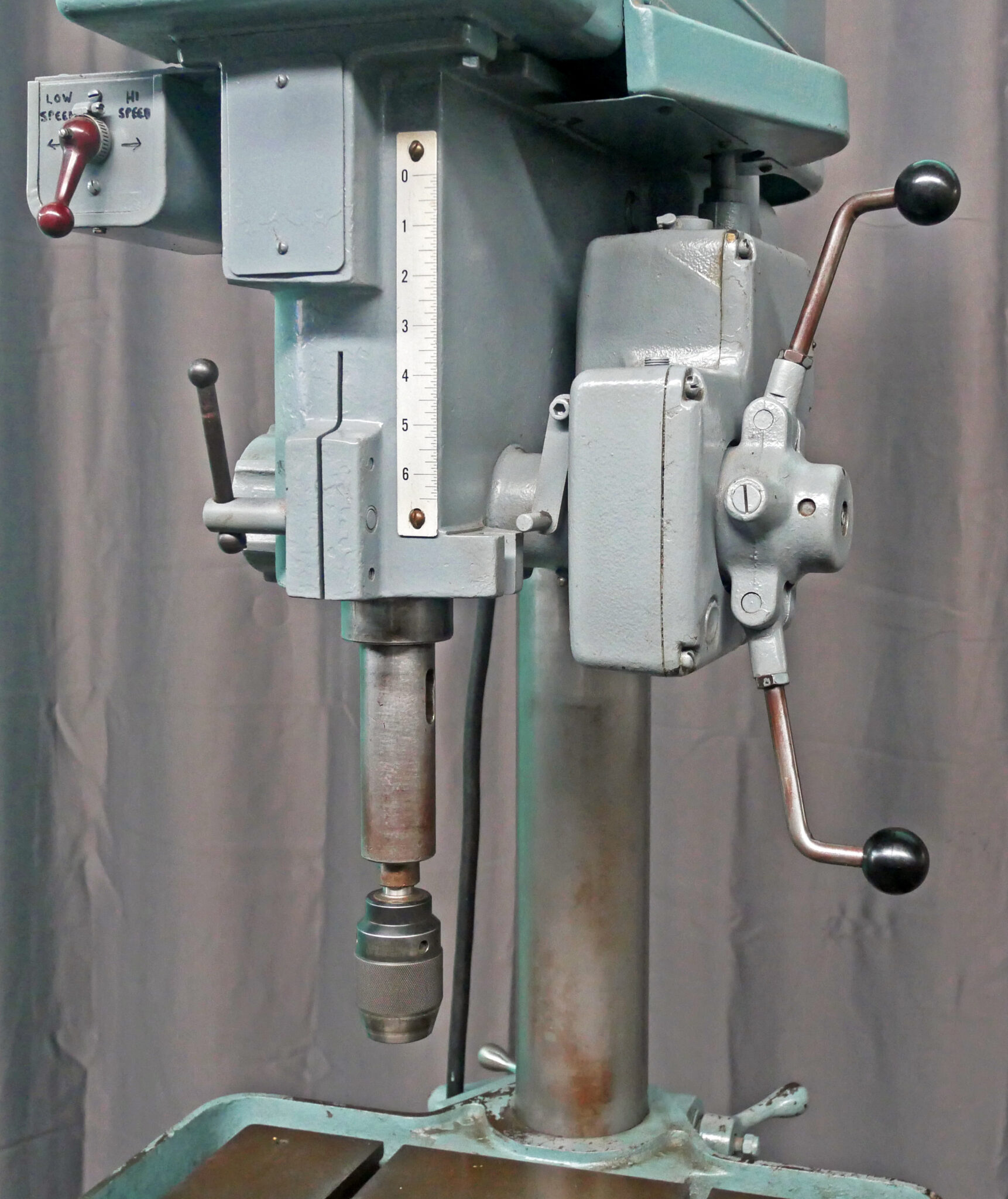

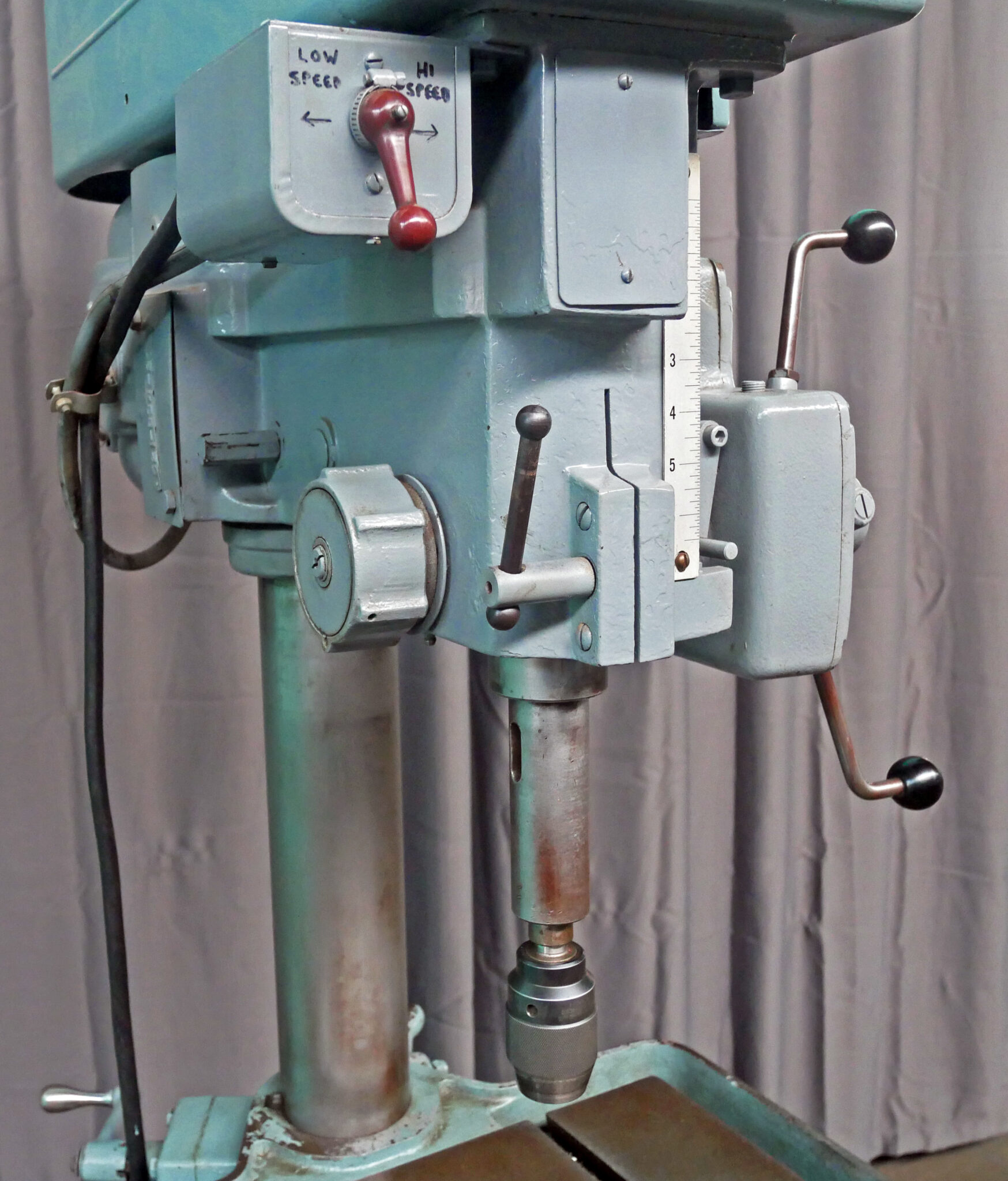

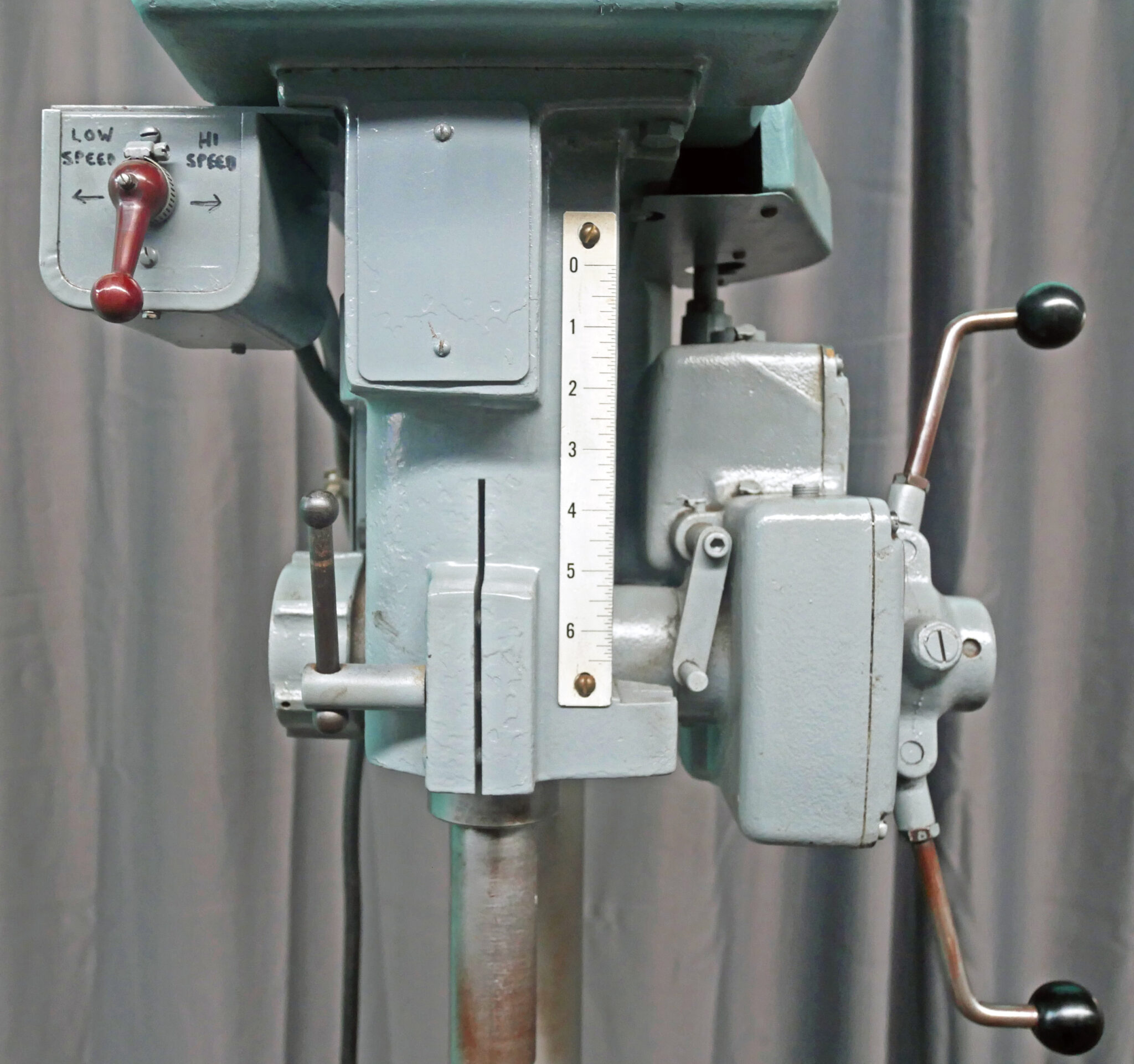

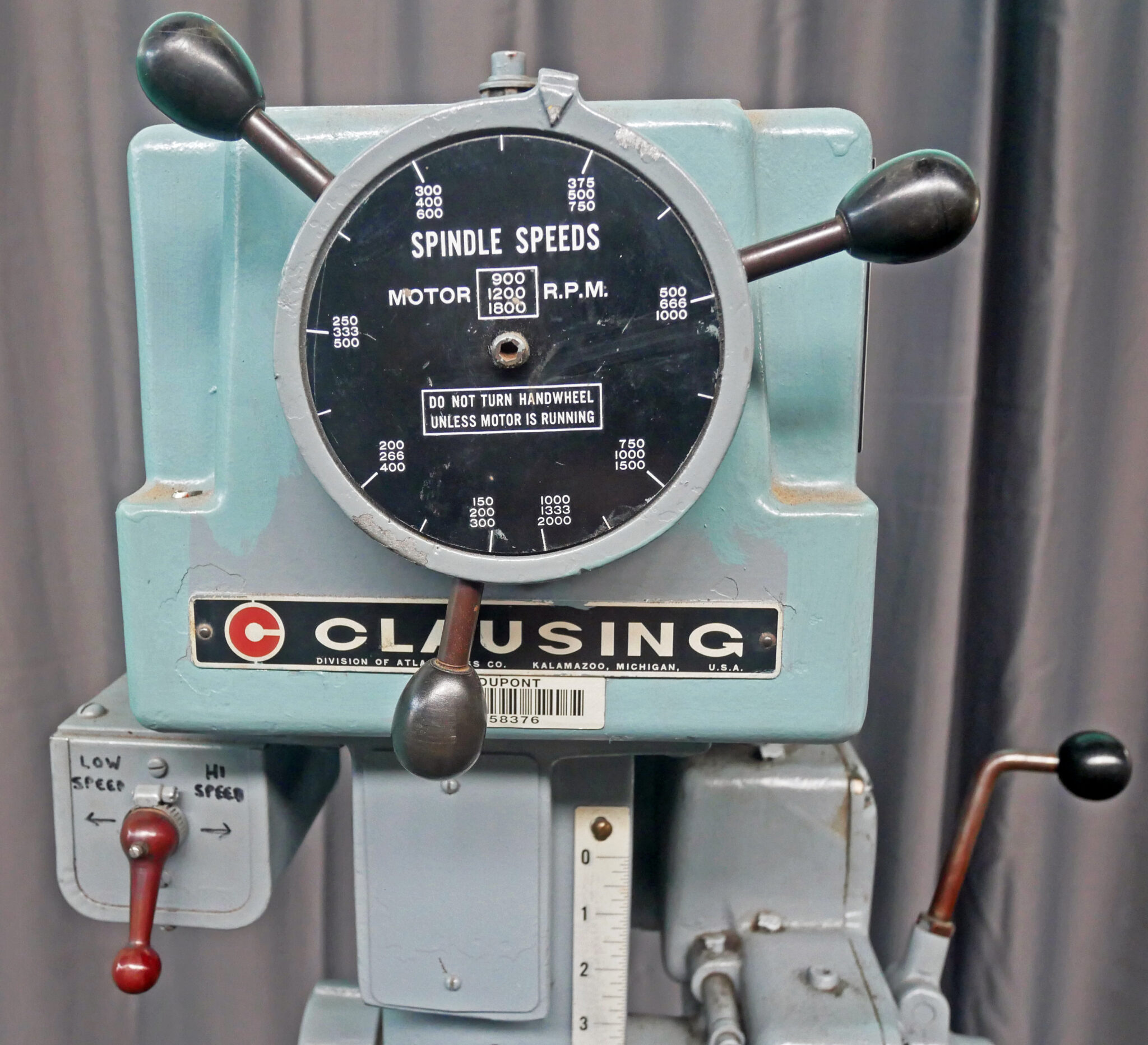

Spindle Speed: 150 – 2,000 RPM, Variable Two-Speed

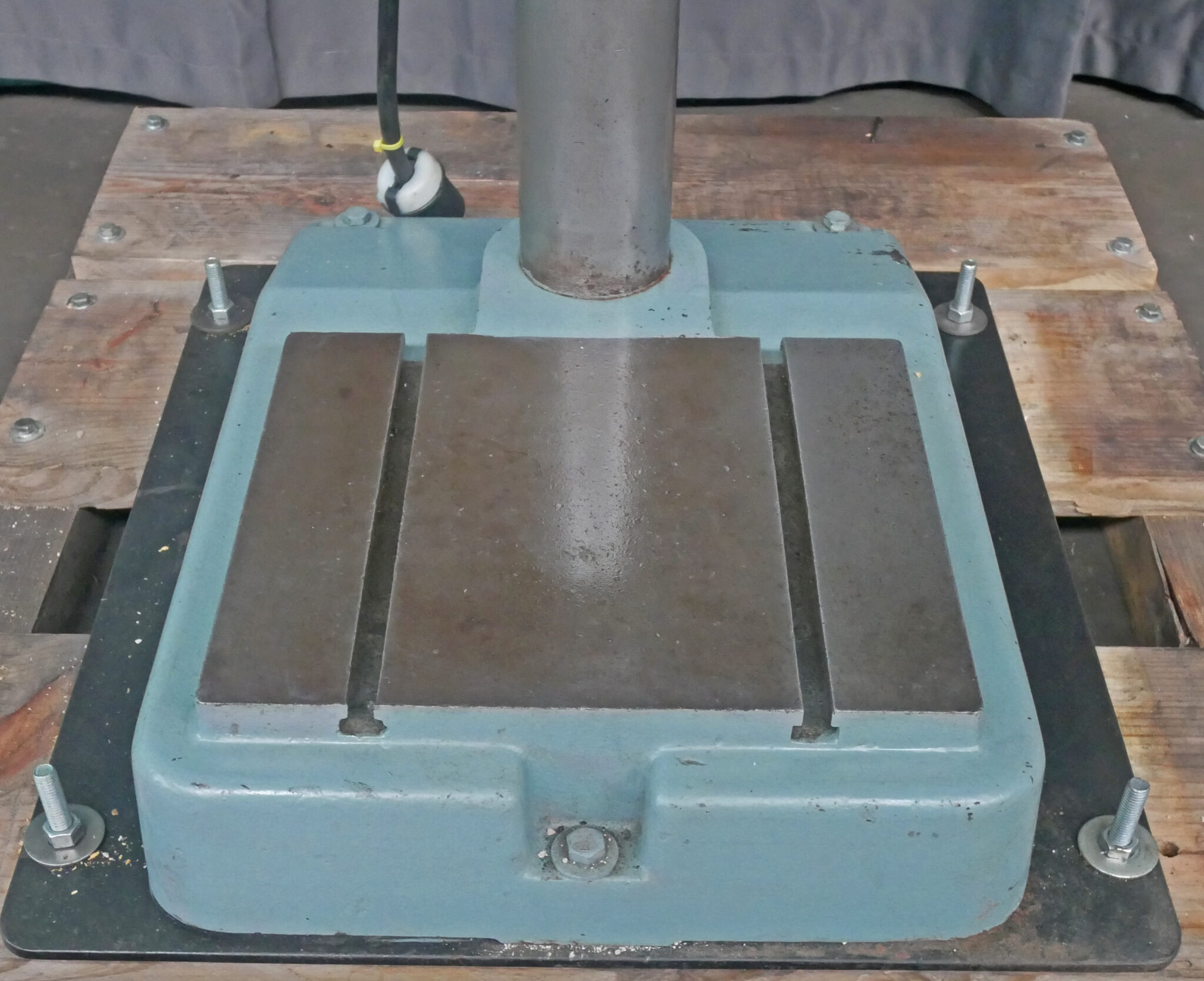

Base Dimensions: 15 1/2″ x 13″
Base Slots Size: (2) 13″ Long x 1/2″ T-Bolt
Capacity in Mild Steel: 3/4″
Column Diameter: 4″
Drilling Capacity: 1″
Drills to Center of Circle: 20″
Max. Distance Spindle to Table: 20″
No. of Base Slots: 2
Spindle Distance to Base: 43 3/8″
Steel Drilling Capacity: 1 1/4″
T-Slot: 5/8″

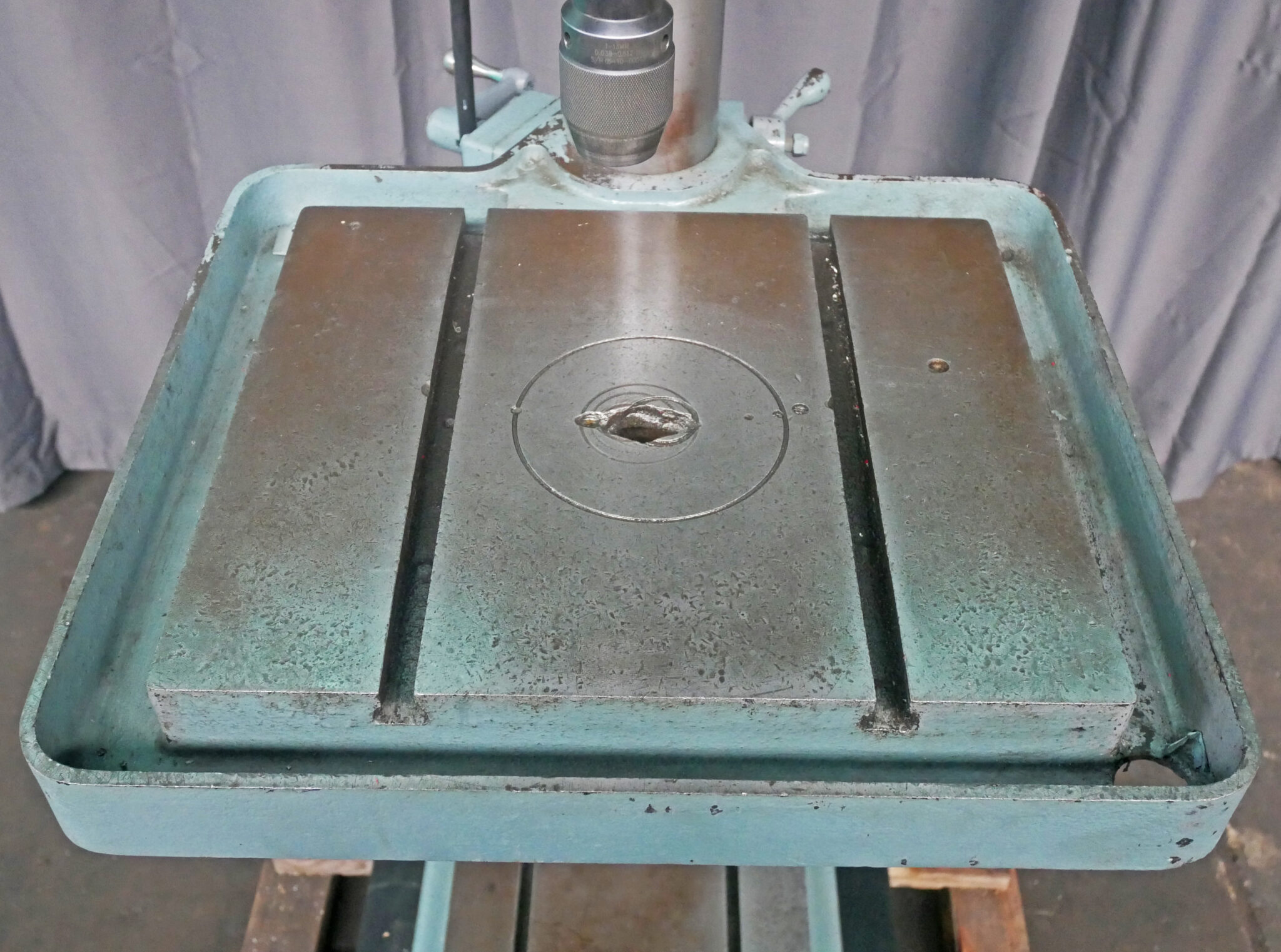

Table Dimensions: 22″ x 19 1/2″
Table Travel: 20″
Motor: 3/4 – 1.5 HP / 220v / 3ph
Mechanical Specifications:
Dimensions: 22″ x 36″ x 69″ H
Weight: approx. 630 lbs.
FOB Our Baltimore, MD Warehouse
