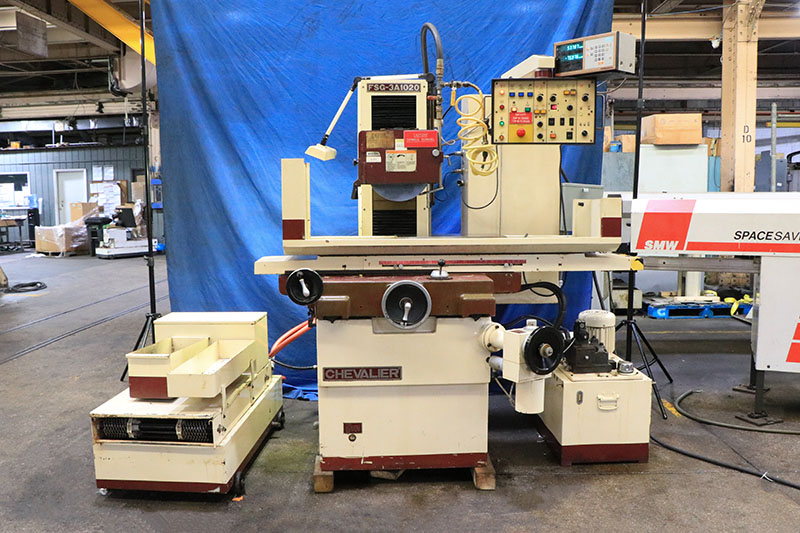

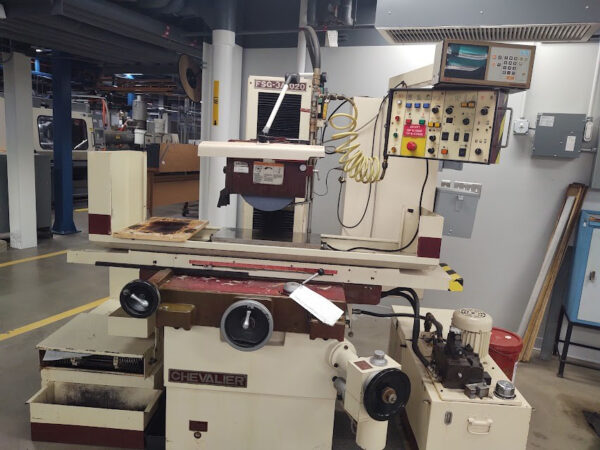

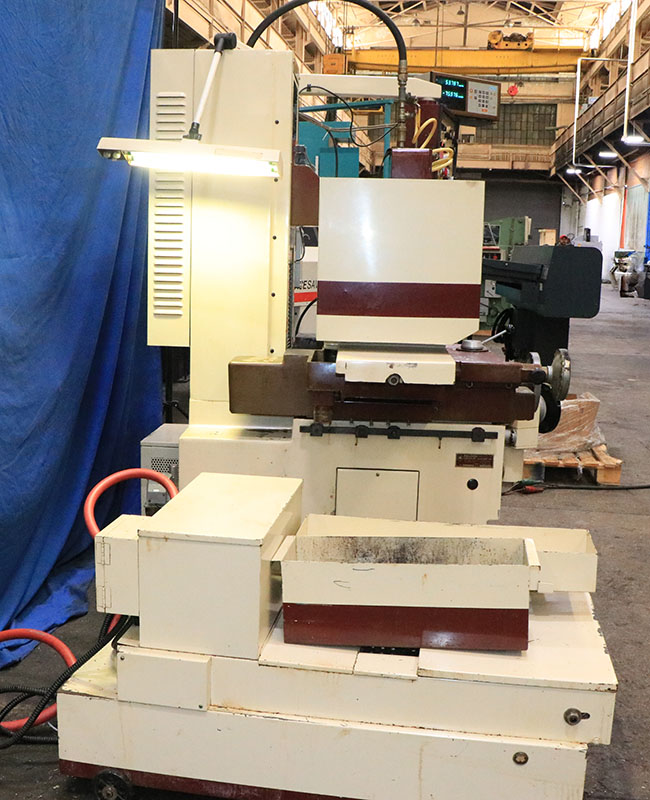

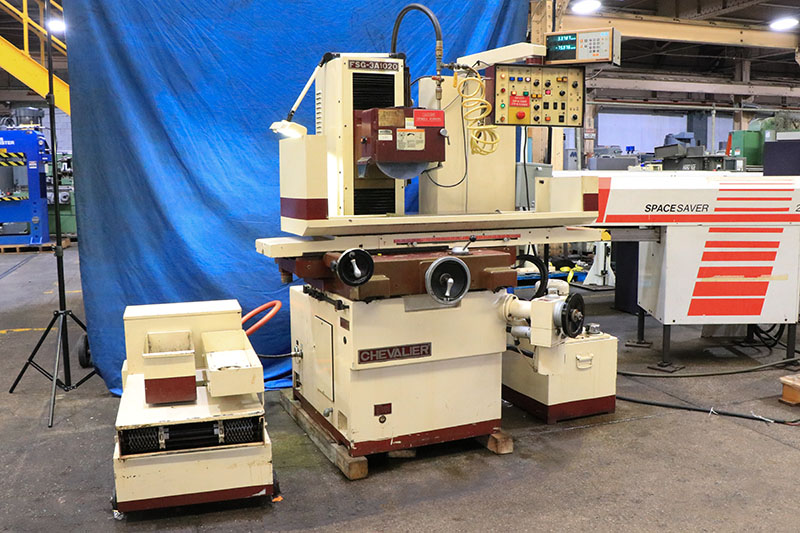

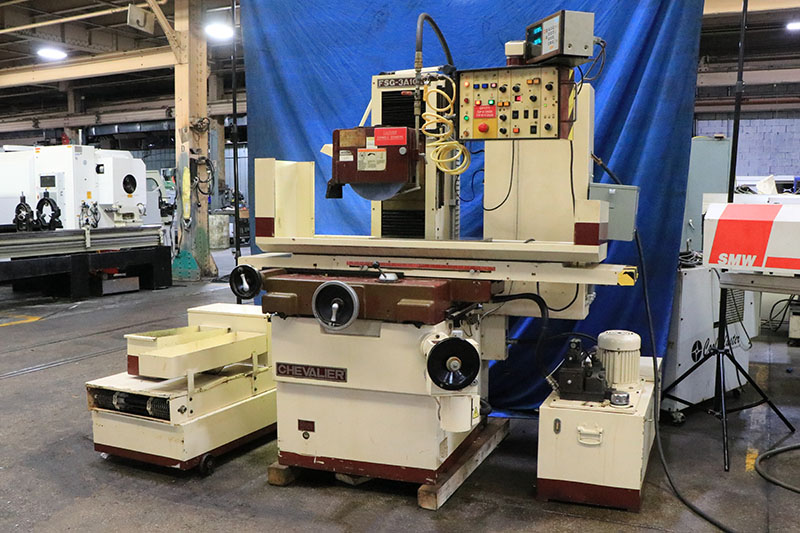

Chevalier 10″ x 20″ Precision Surface Grinder with Programmable Automatic Incremental Downfeed and 12″ Grinding Wheel
Inventory # 9932-P
Model: FSG-3A1020

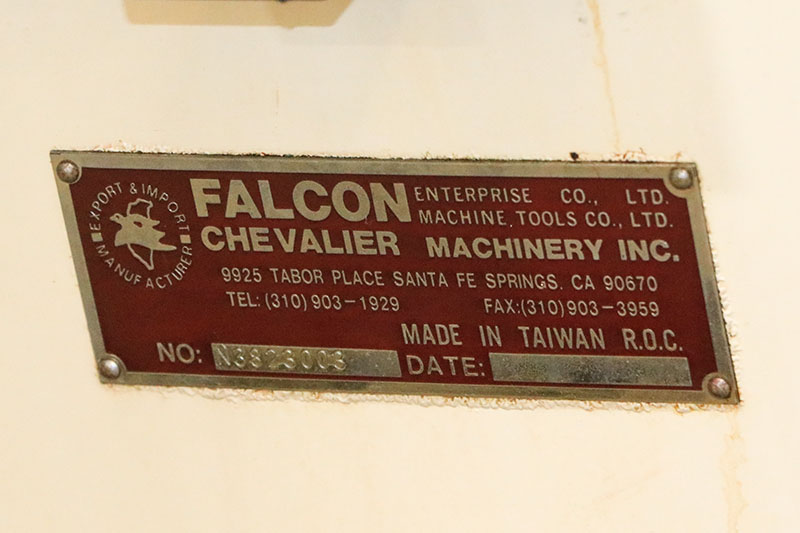

S/N: N3823003 “1993”
Specifications:
Nominal Grinding Capacity: 10″ x 20″
Max. Longitudinal Table Travel, Hydraulic: 22 7/8″
Max. Longitudinal Table Travel, Manual: 24 3/8″
Max. Cross Feed Travel, Automatic: 11 7/16″
Max. Cross Feed Travel, Manual: 11 3/4″
Distance from Spindle Center to Table: 21 1/2″
Variable Table Speed, Hydraulic: 16 – 82 FPM
Automatic Cross Feed Increment: 0.02″ – 0.4″
Power Rapid Traverse, Cross: 48 IPM

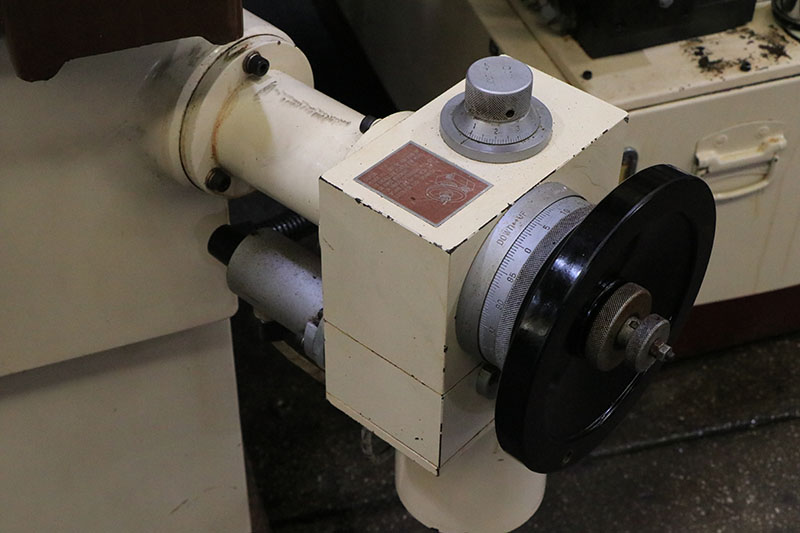

Cross Feed Handwheel per Graduation: 0.001″
Per Revolution: 0.02″
Automatic Incremental Down Feed: 0.0001″ – .002″
Auto Down Feed Dial per Graduation: 0.0005″
Per Revolution: 0.1″
Micro Feed: 0.0001″
Rapid Traverse Rate: 13 IPM
Standard Grinding Wheel: 12″ Diameter x 1 1/4″ x 3″
Spindle Motor: 3 HP / 460v / 3ph
Standard Features:

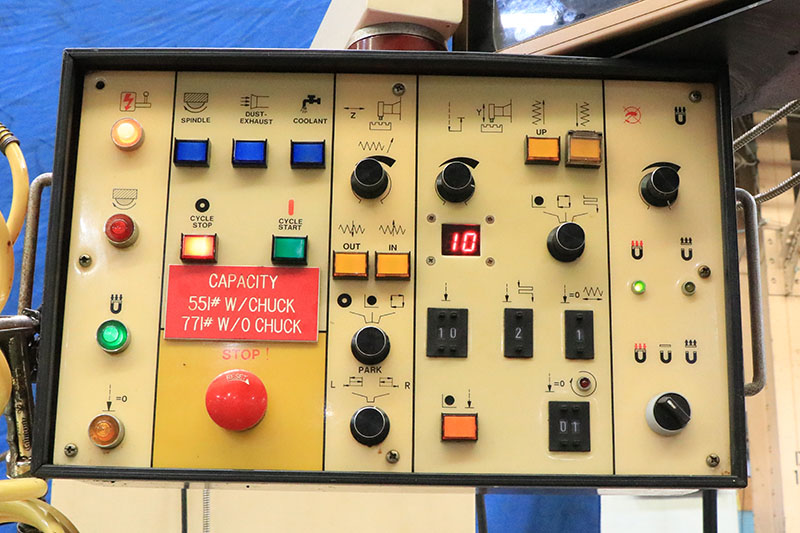

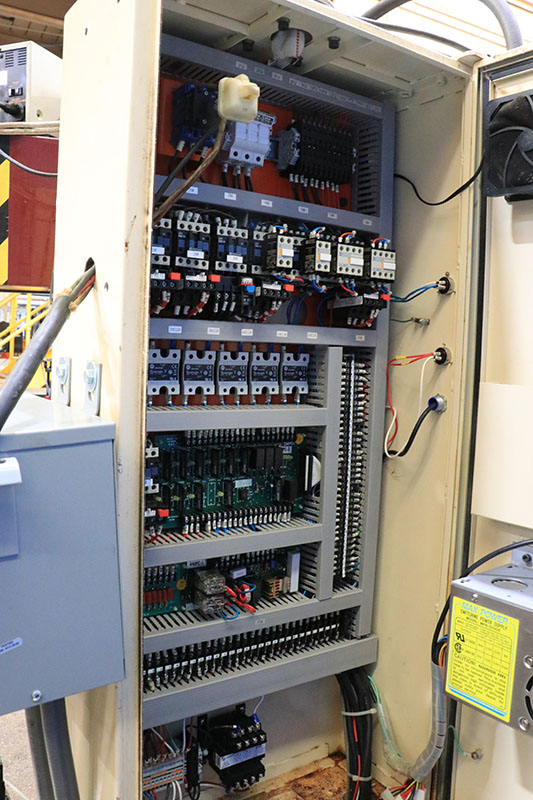

Fully Programmable Microprocessor Auto-Cycle Control with Digital Display
Automatic Incremental Down Feed (Plunge & Surface)
Spark Out Cycle with Automatic Wheel Head Retraction at Completion of Grind Cycle
Power Rapid Wheel Head Positioning
Hydraulic Table Traverse
Electronic Cross & Vertical Feeds

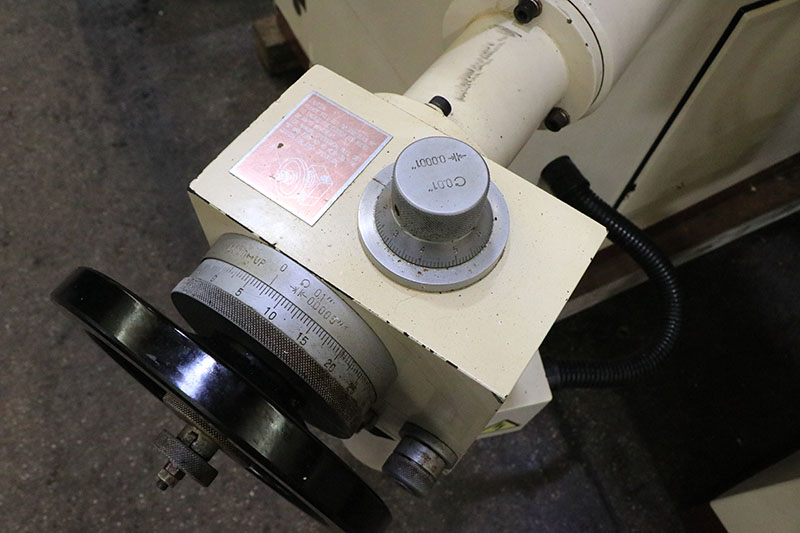

Micro-Down Feed (.0001″ Graduation)
Equipment Included:

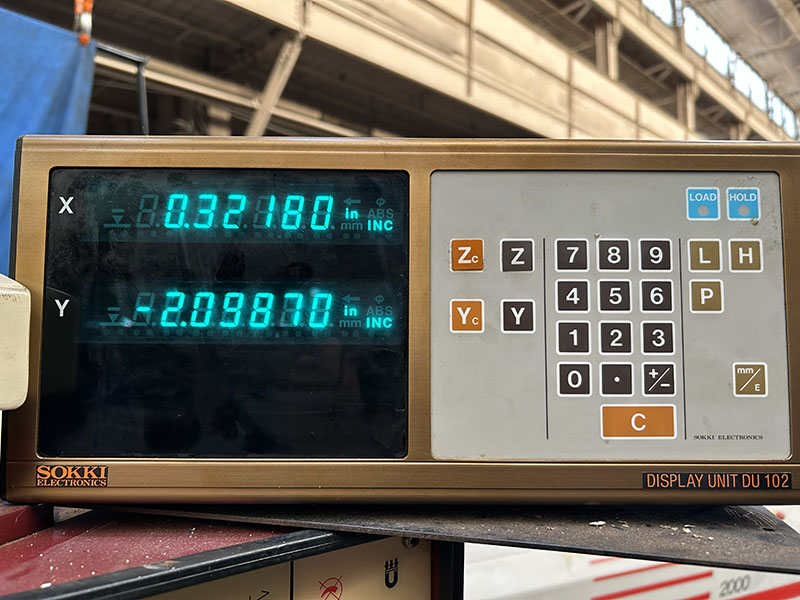

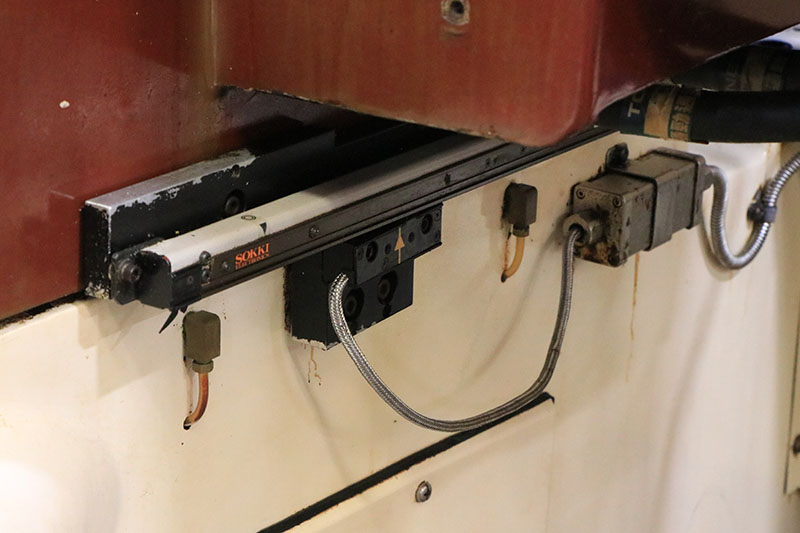

“Sokki” High-Accuracy ‘Made in Japan’ 2-Axis Digital Read Out Display; Reads to 0.00005″ Resolution

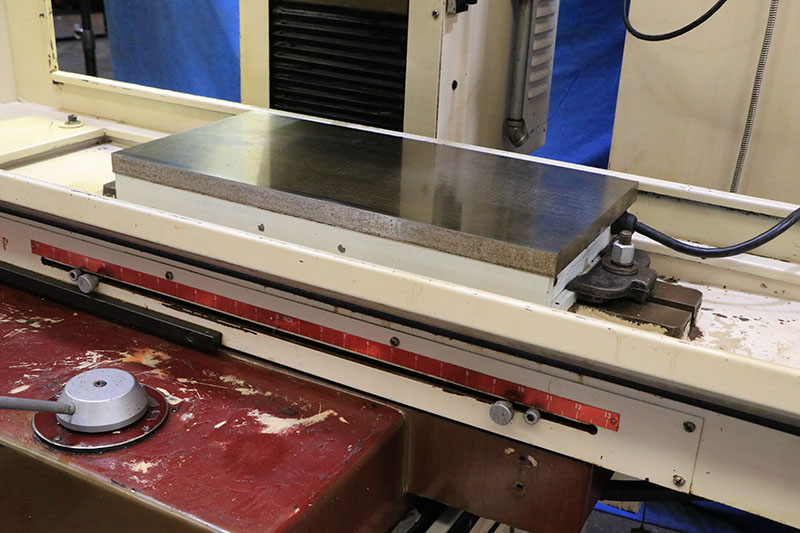

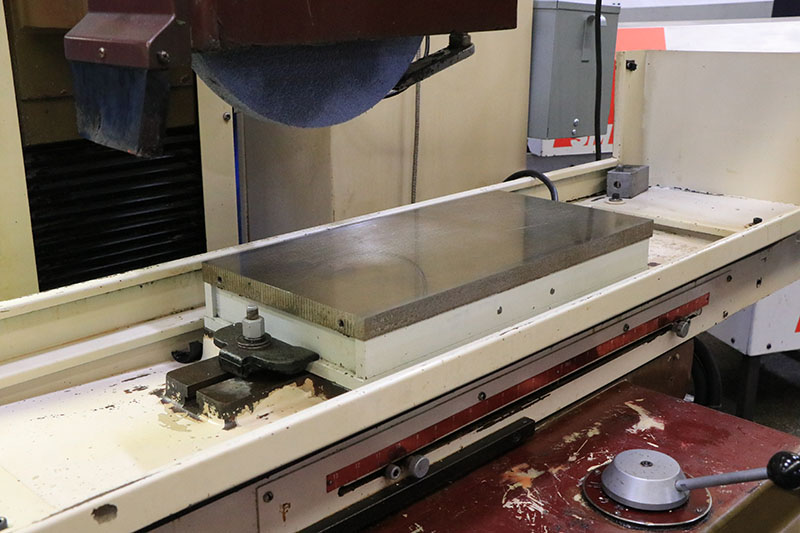

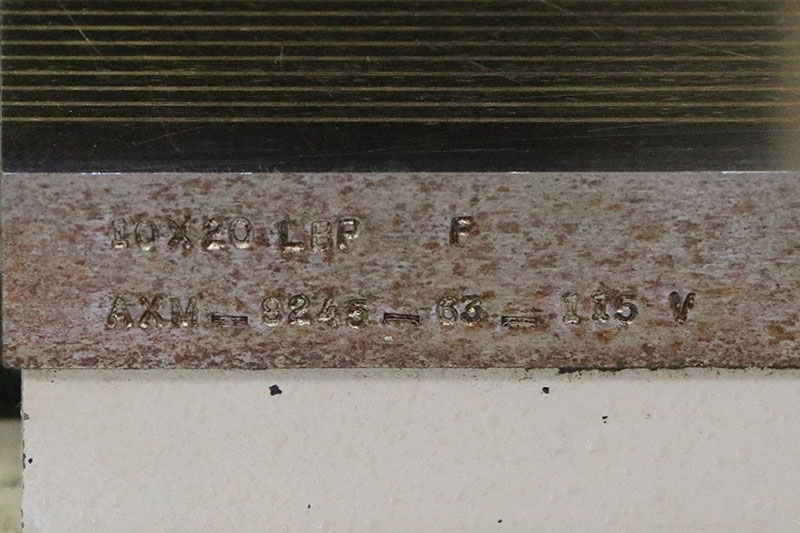

10″ x 20″ O.S. Walker “LBP” Fine-Division Electro-Magnetic Chuck with Variable Hold Neutrofier Control on the Machine Control Console

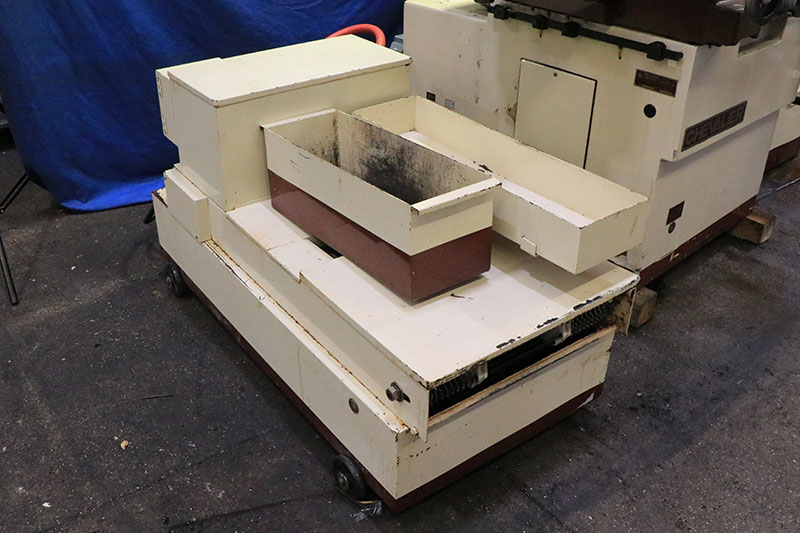

Coolant System with Paper Filtration
Work Light

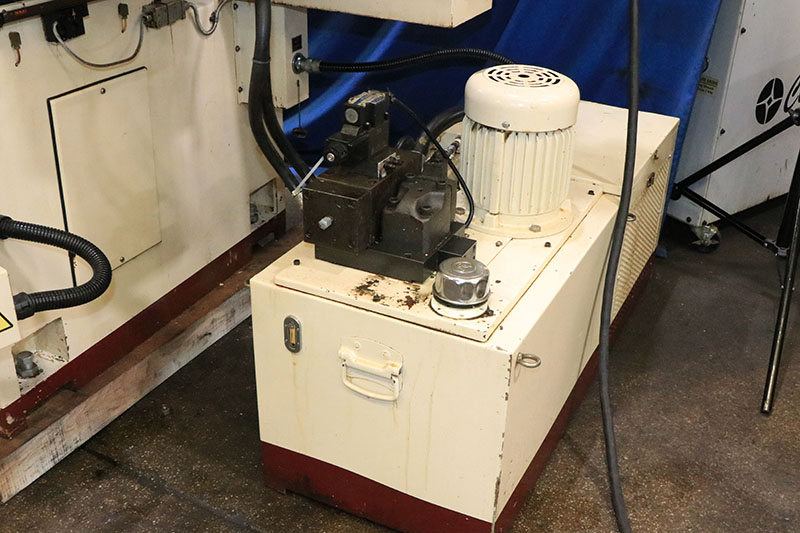

External Hydraulic System
Auto Lube System

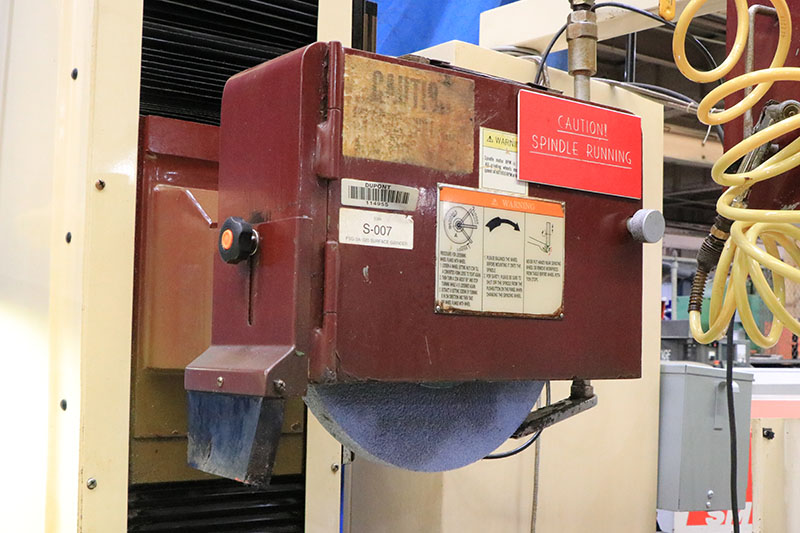

12″ Grinding Wheel
3 HP Super-Precision Direct Drive Spindle
Mechanical Specifications:
Dimensions: 85″ x 48″ x 65″ H
Weight: approx. 3,310 lbs.
FOB Harrison, NJ Warehouse
