Description

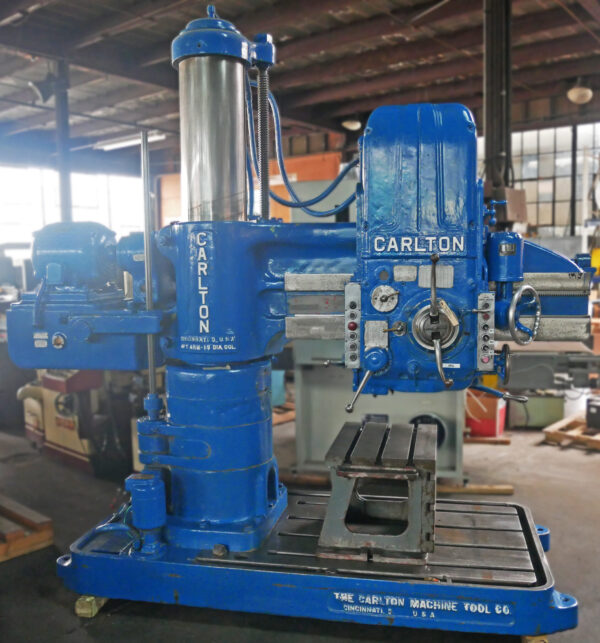

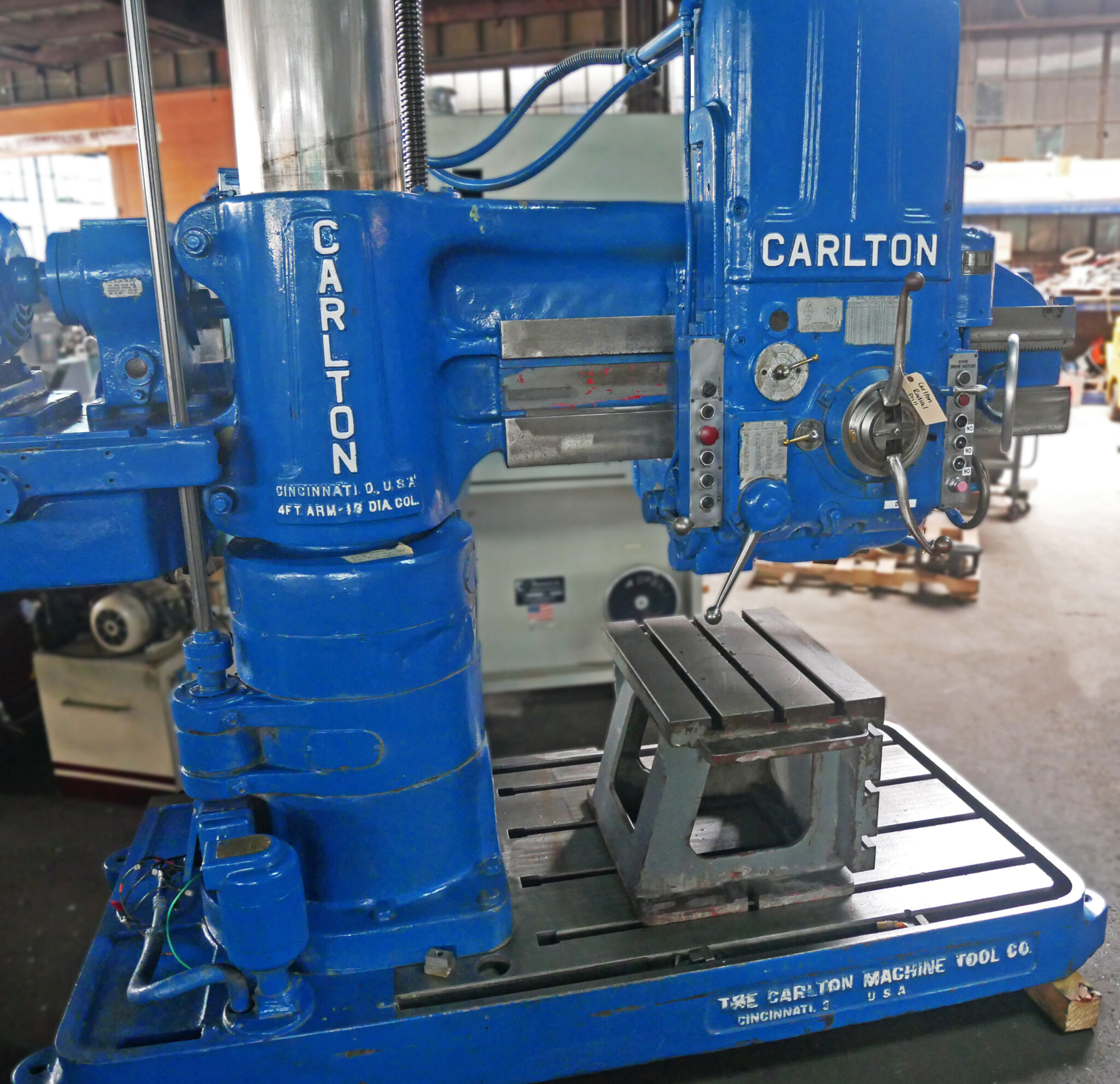

Carlton 48″ x 13″ Radial Arm Drill Press, 3A
Inventory # 9859
Model: 3A
S/N: 3A 3645
Specifications:
Arm Length: 48″
Column Diameter: 13″
Horizontal Head Travel on Arm: 36″
Vertical Arm Travel on Column: 31″
Vertical Spindle Travel in Head: 18″
Spindle Speed: 15 – 1,500 RPM (36 Speeds)
Motor: 10 HP / 220v, 440v / 3ph (Pre-Wired 440v)
Standard Features & Equipment Included:
Power Clamping
Power Carriage
Mechanical Specifications:
Weight: approx. 16,000 lbs.
FOB Our Baltimore, MD Warehouse
