Description

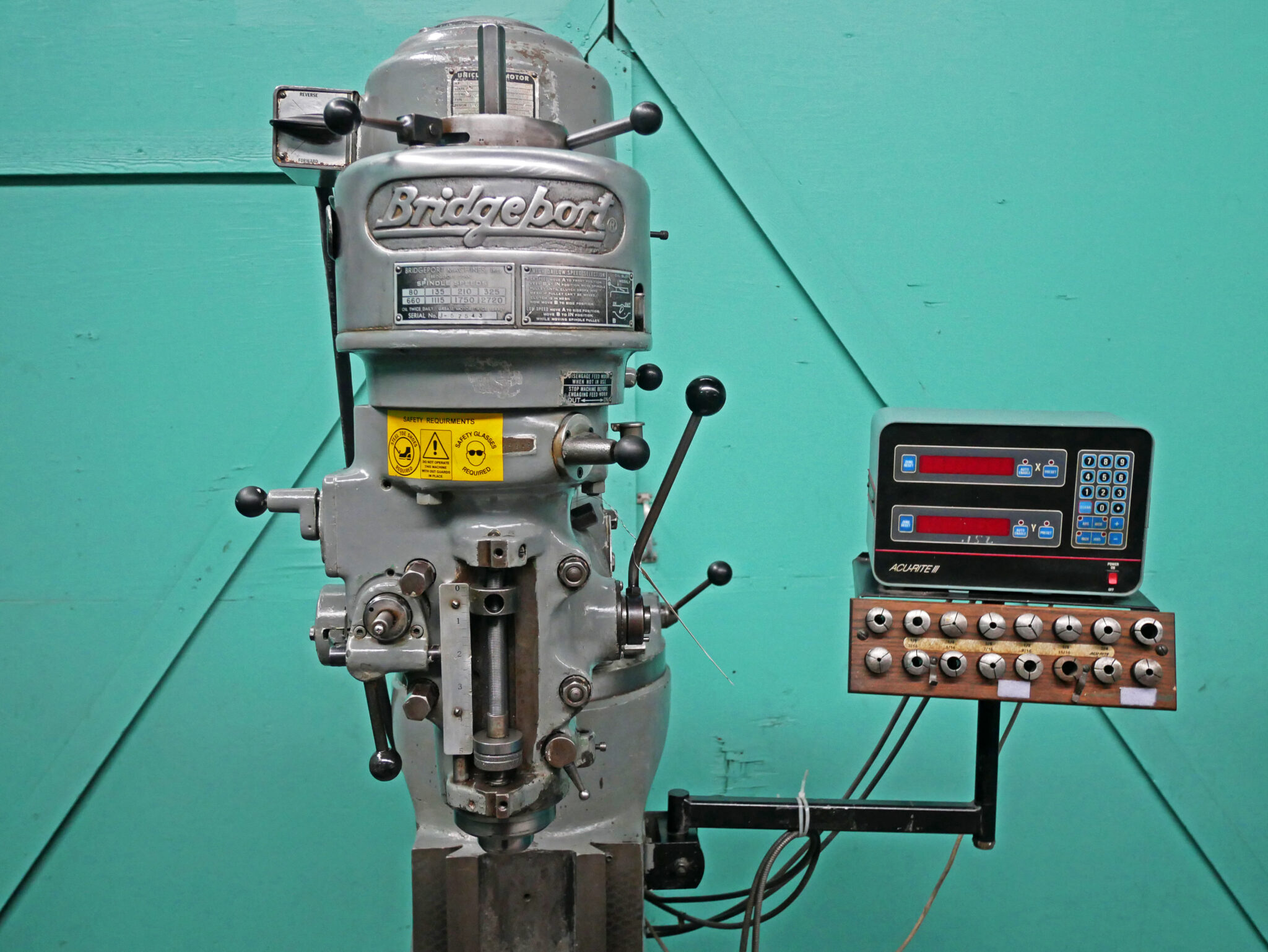

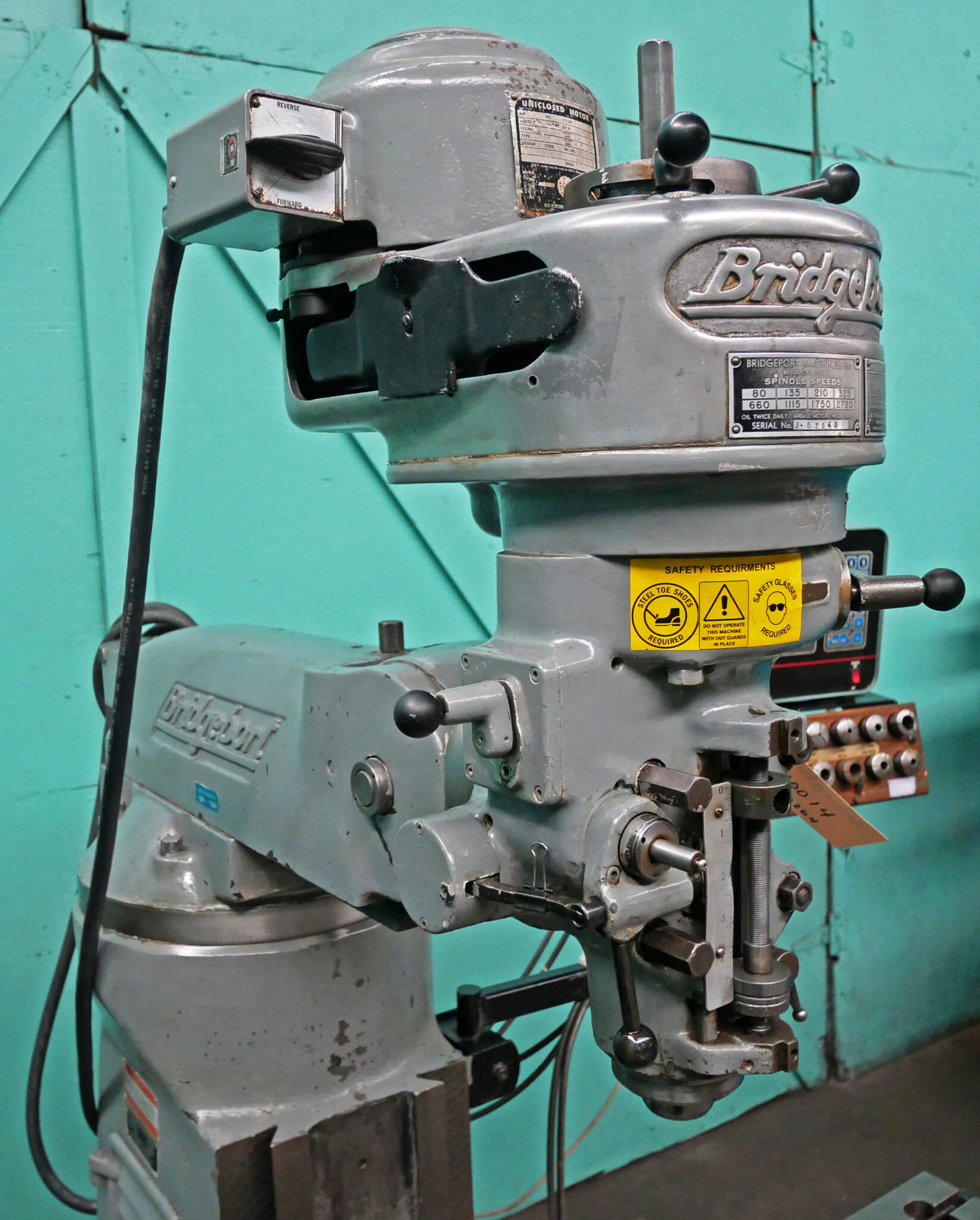

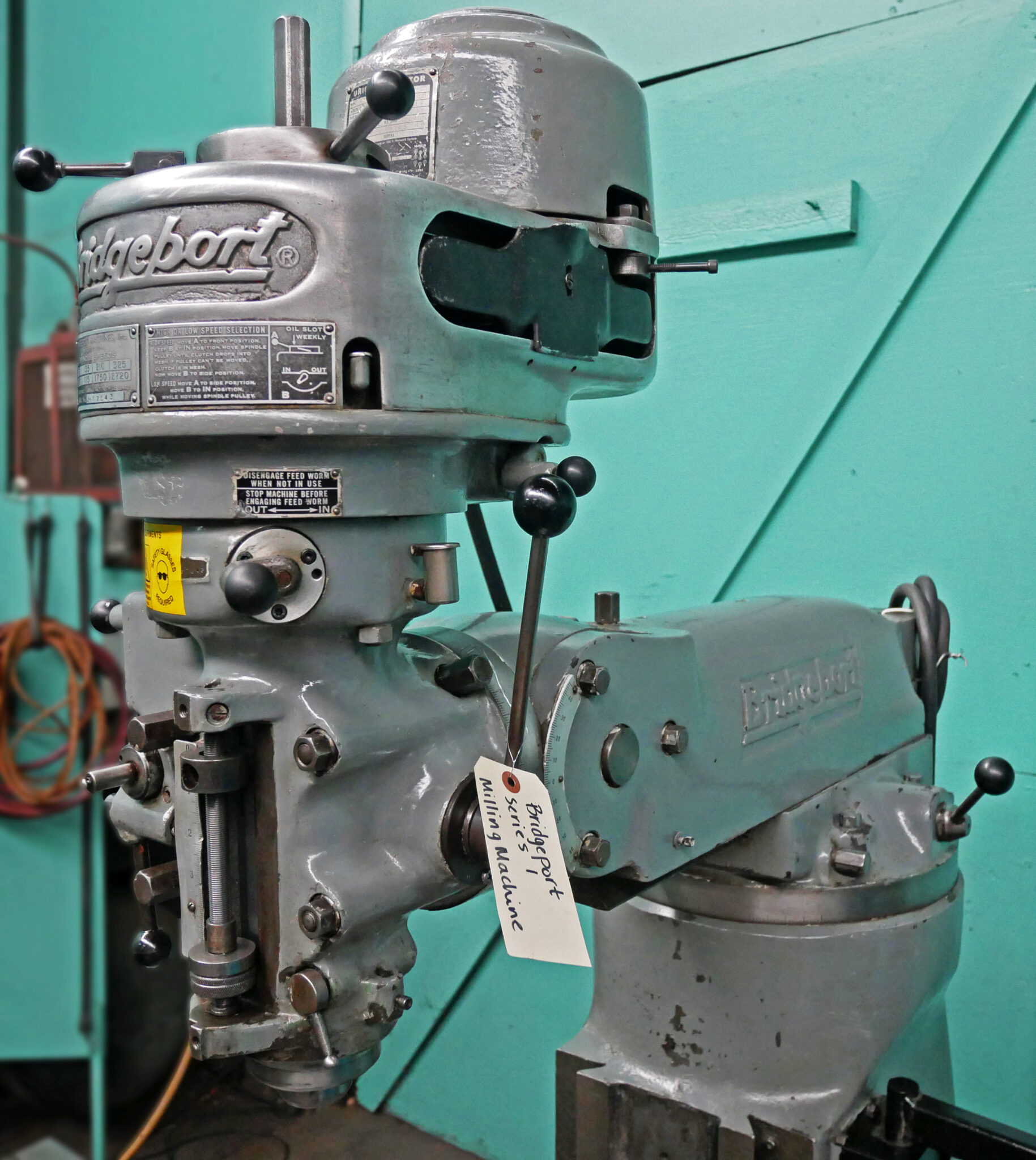

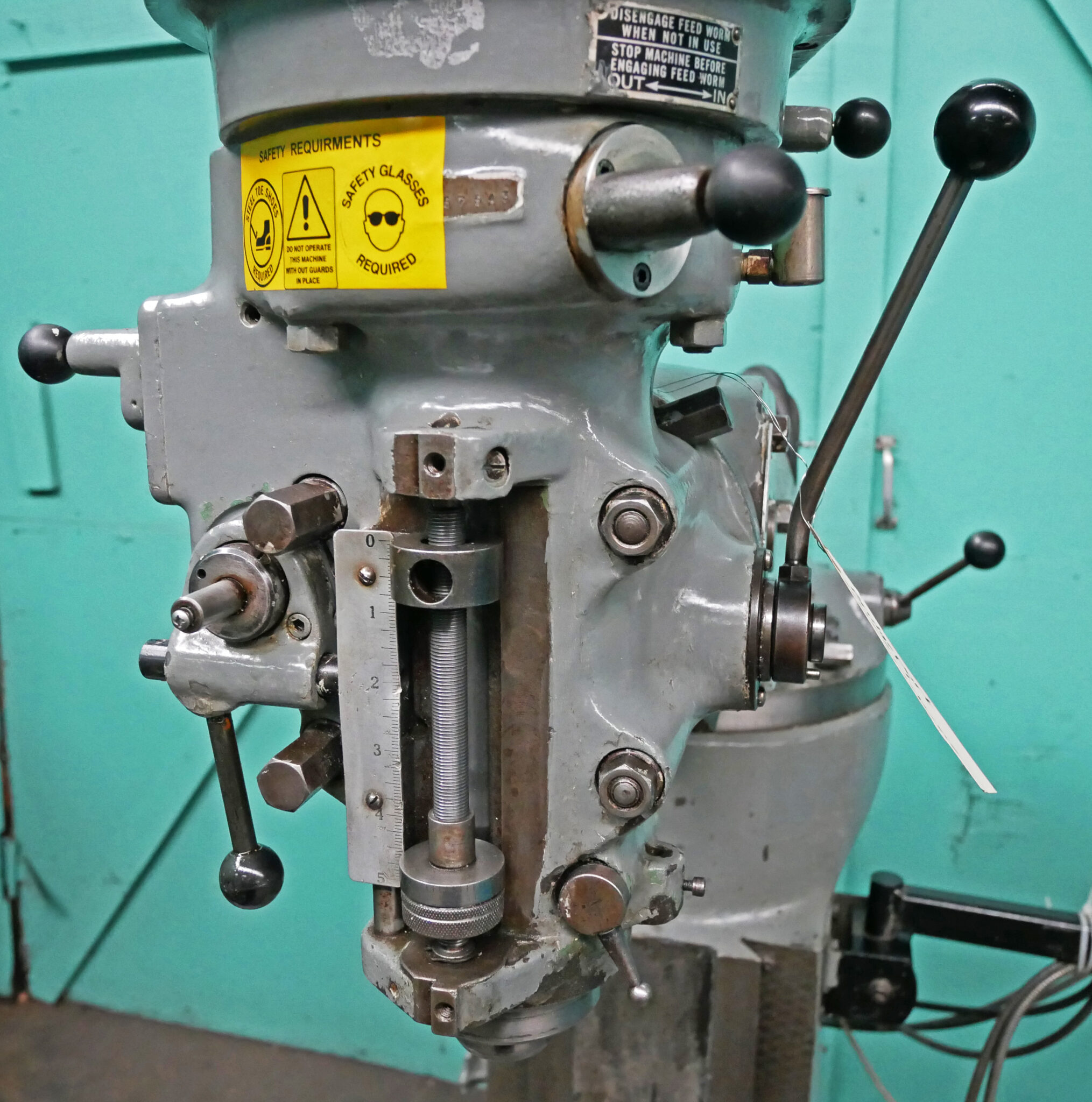

Bridgeport 9″ x 48″ 8-Speed Step-Pulley Vertical Milling Machine, Series I
Inventory # 10014-P
Model: Series I
S/N: 60264
Specifications:
Table Size: 9″ x 48″
X-Axis Travel: 30″ with Power Feed
Y-Axis Travel: 12″
Z-Axis Travel: 16″
Ram Travel: 12″
Quill Travel: 5″
Spindle: R-8
Spindle Speed: (8) 80 – 2,720 RPM, Step Pulley
Throat Distance: 6 3/4″ – 18 3/4″ Max.
Max. Weight of Workpiece: 750 lbs.
Motor: 1 HP / 230v / 3ph

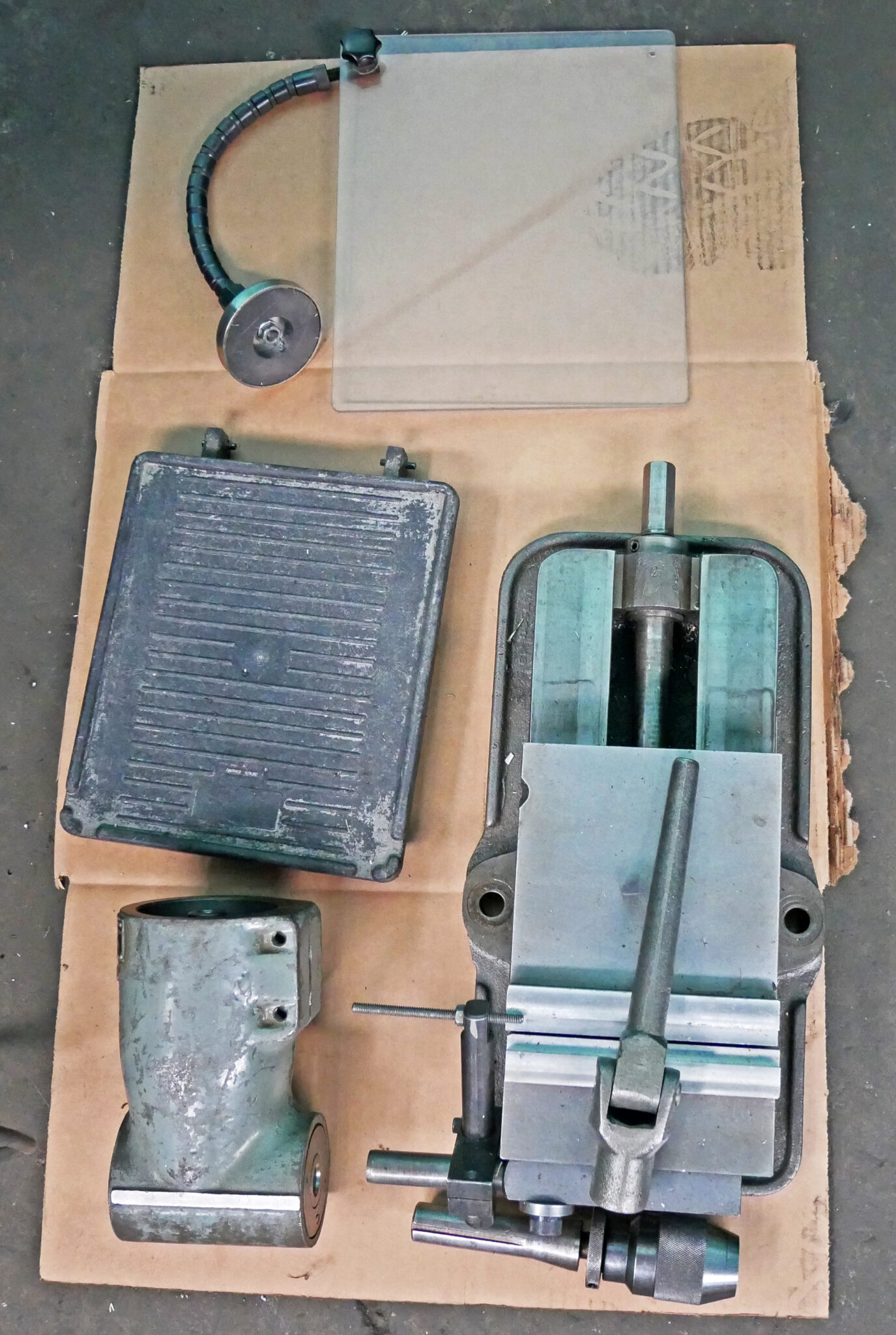

Equipment Included:

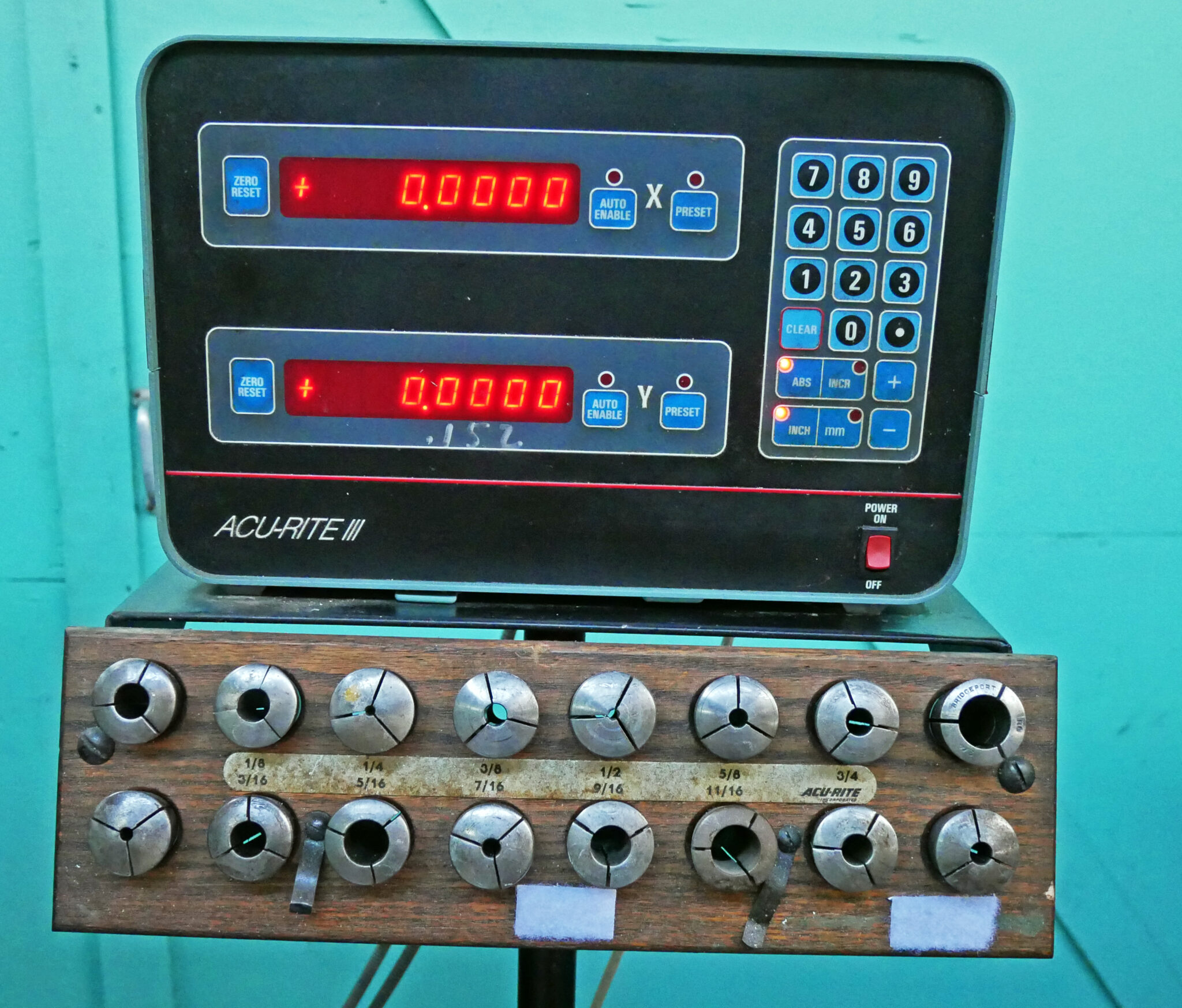

Acu-Rite III 2-Axis Digital Read Out System

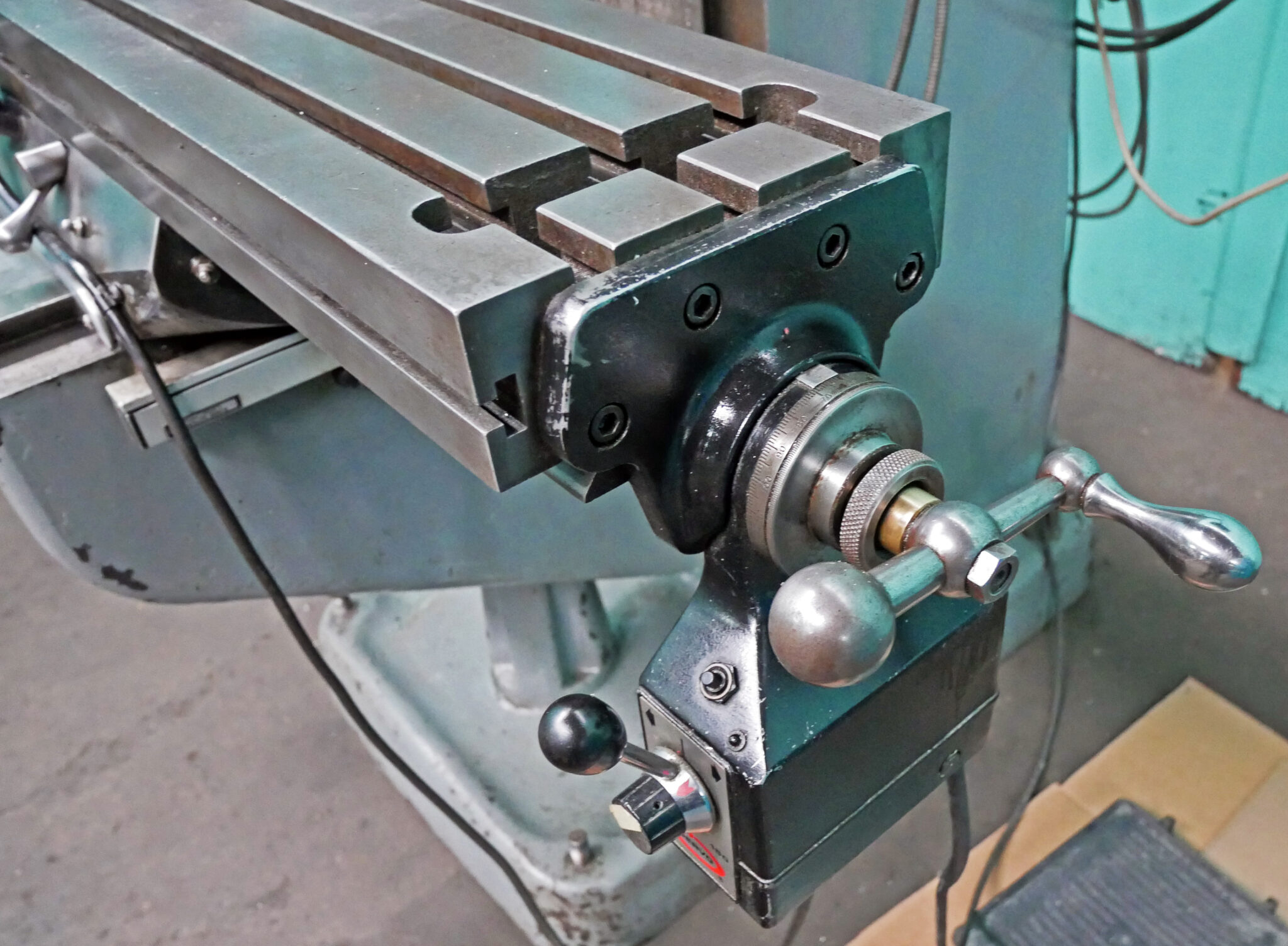

X-Axis Servo Power Feed
Miscellaneous R-8 Collets
Right Angle Head
6″ Milling Vise
Plastic Work Tray
Mechanical Specifications:
Dimensions: 84″ x 120″ x 87″ H
Weight: approx. 1,930 lbs.
FOB Our Baltimore, MD Warehouse
