Description

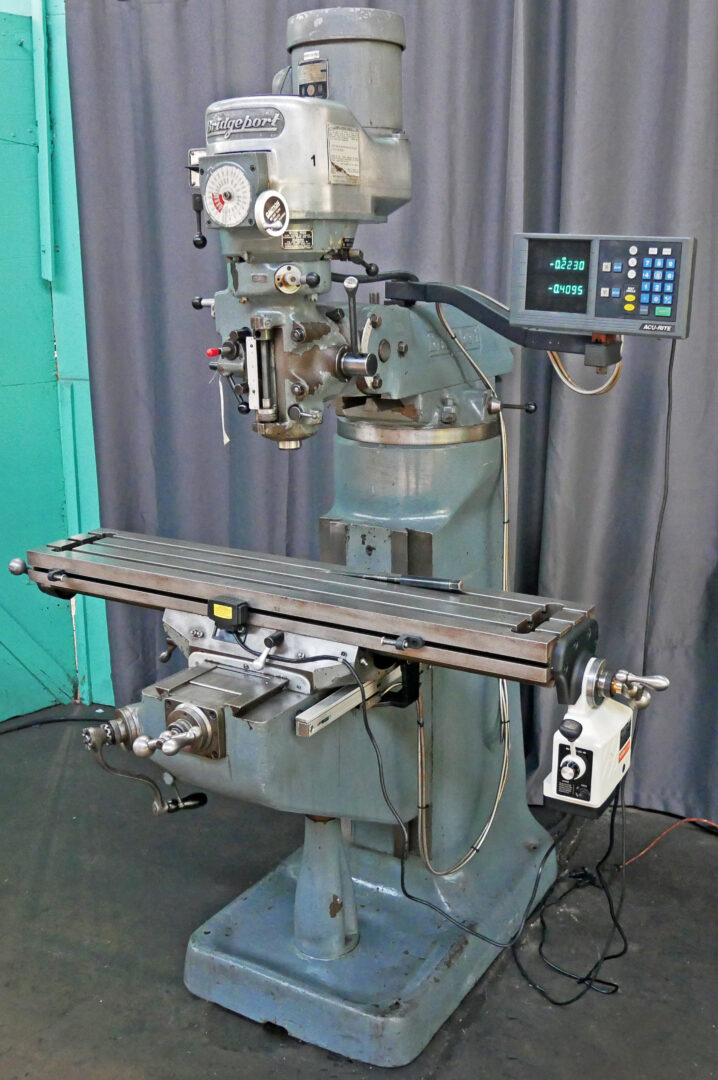

Bridgeport 9″ x 48″ Variable Speed Milling Machine, Series I
Inventory # 9940
Model: Series I

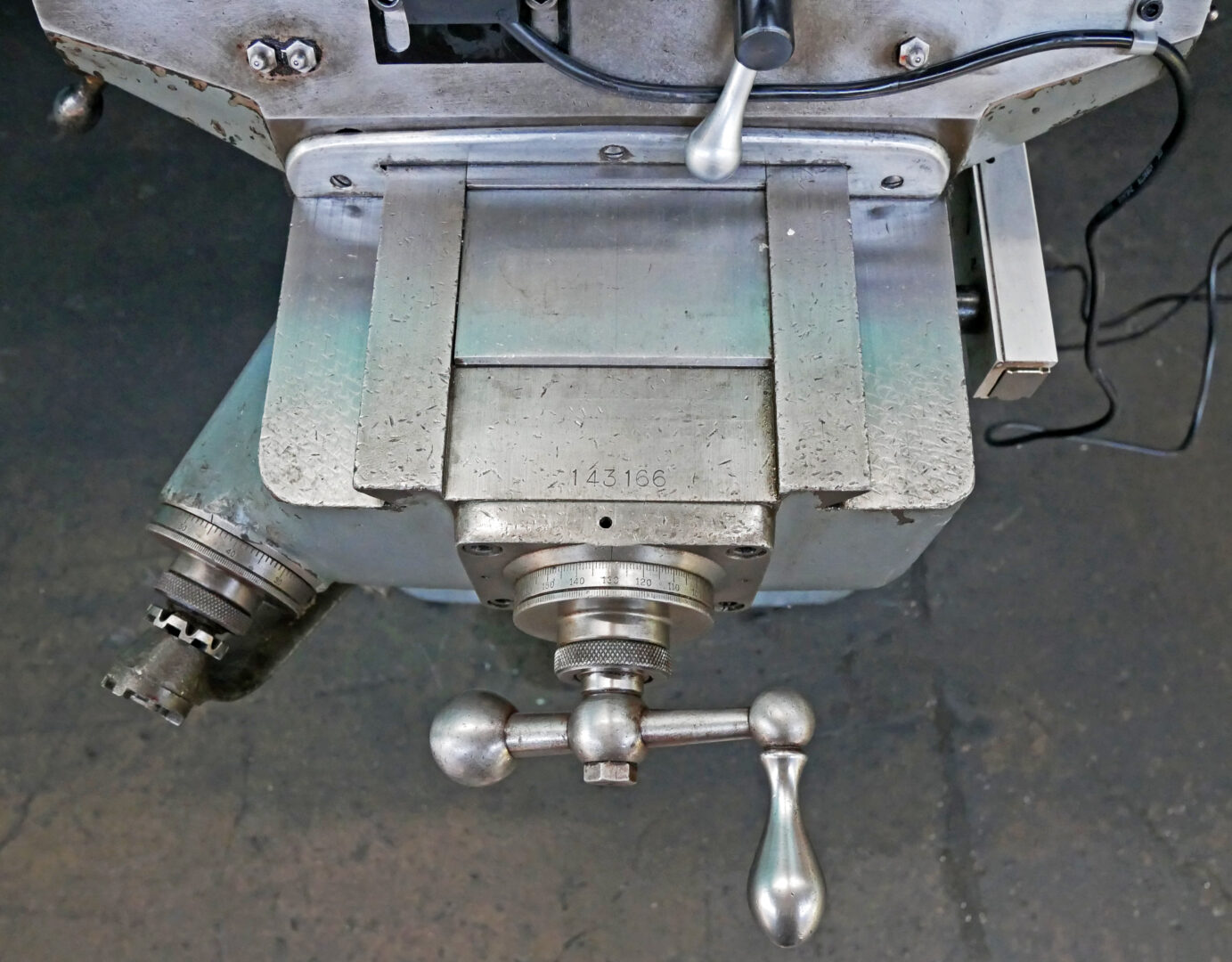

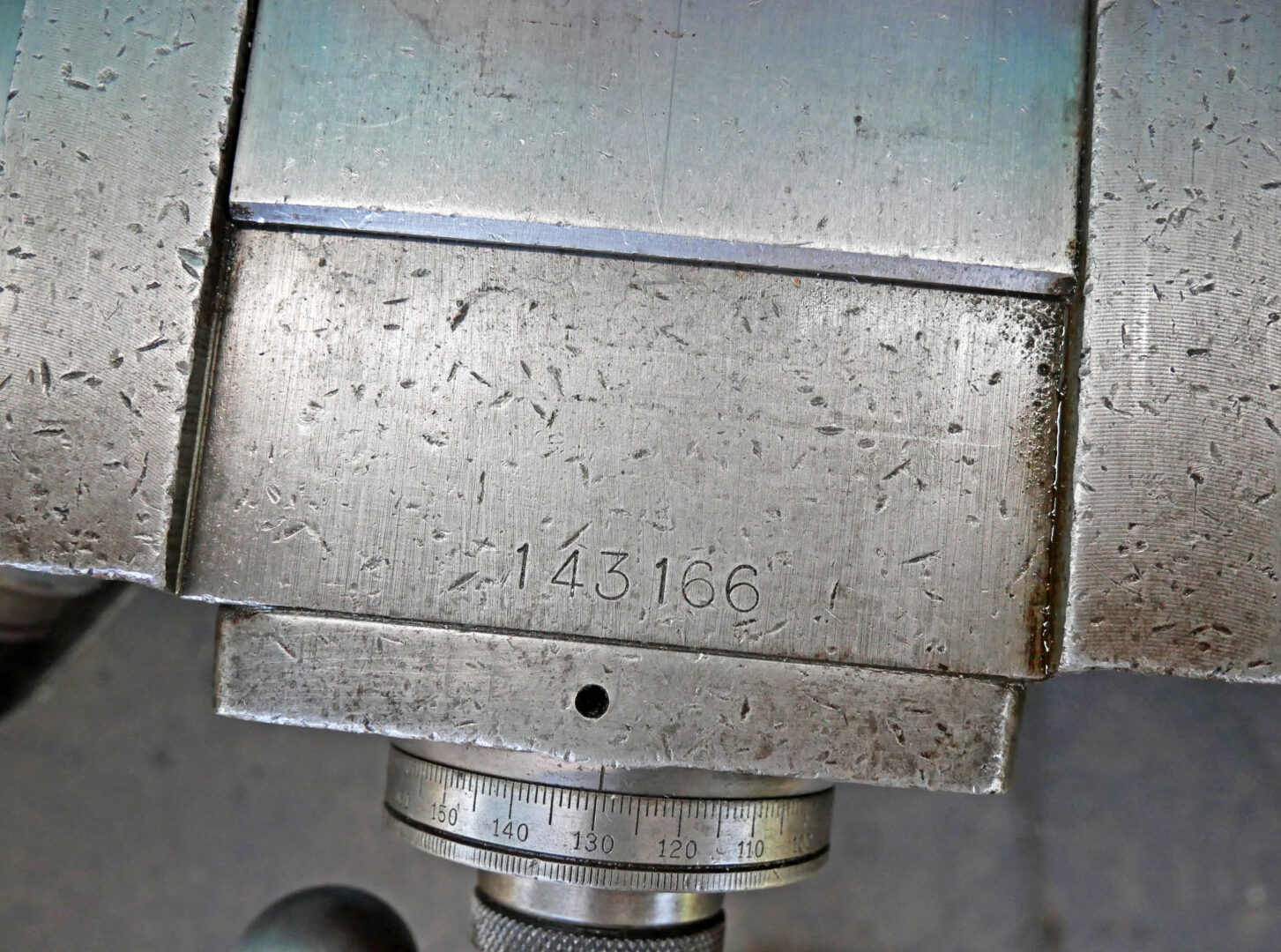

S/N: 145166
Made in USA
Specifications:

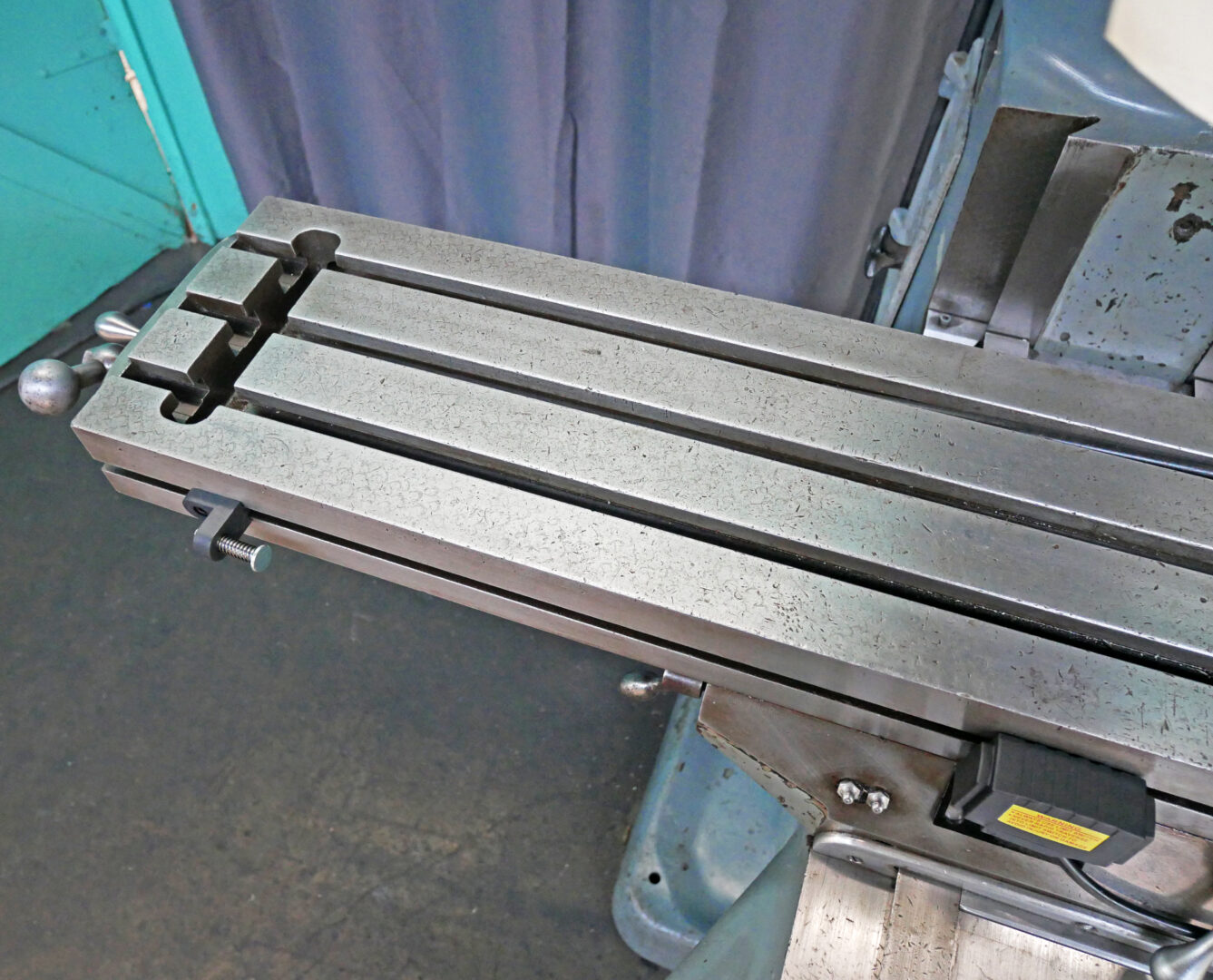

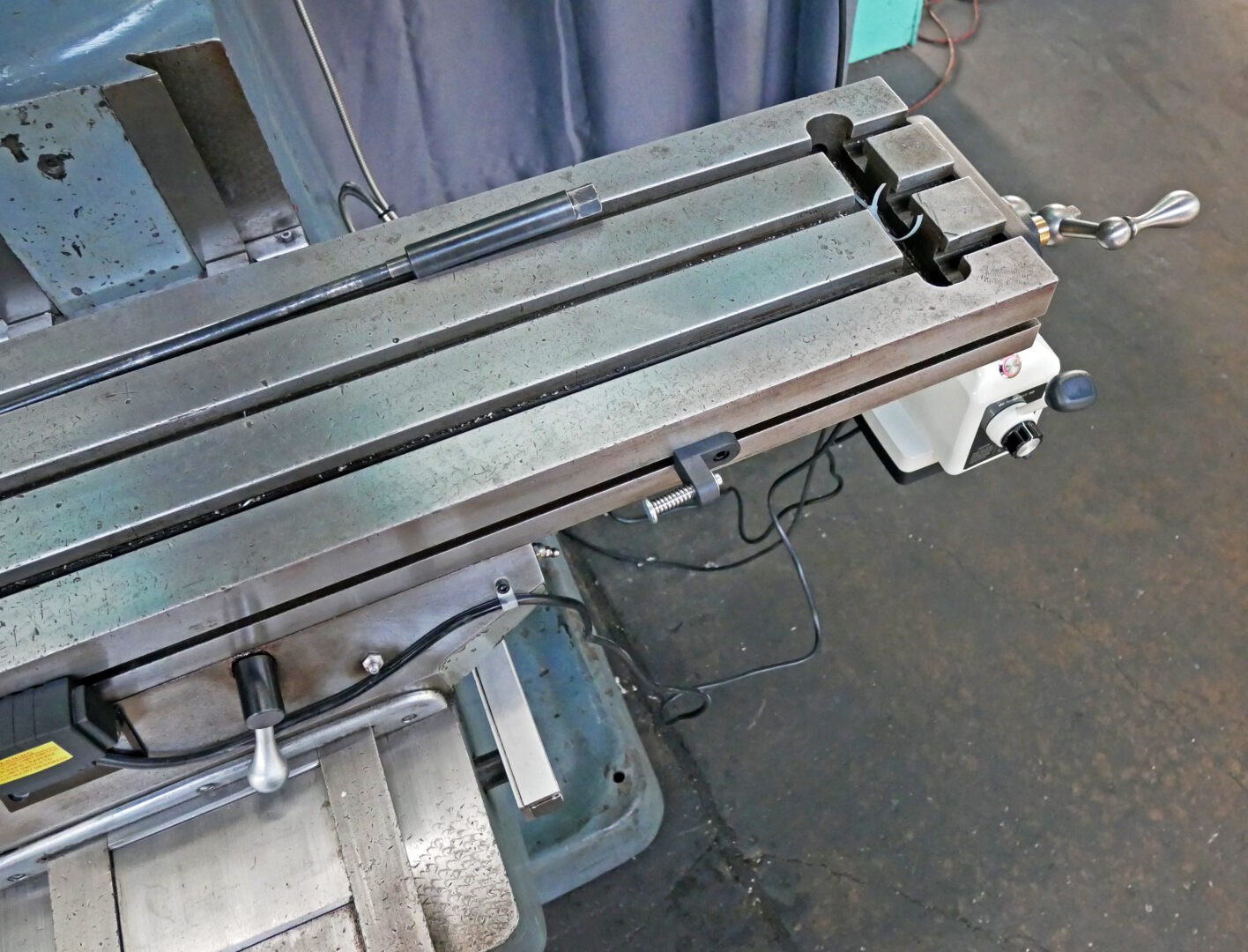

Table Size: 9″ x 48″
T-Slots: (3) 2 1/2″ Centers, 5/8″
Travel:
X-Axis: 30″
Y-Axis: 12″
Knee: 16″
Ram: 12″

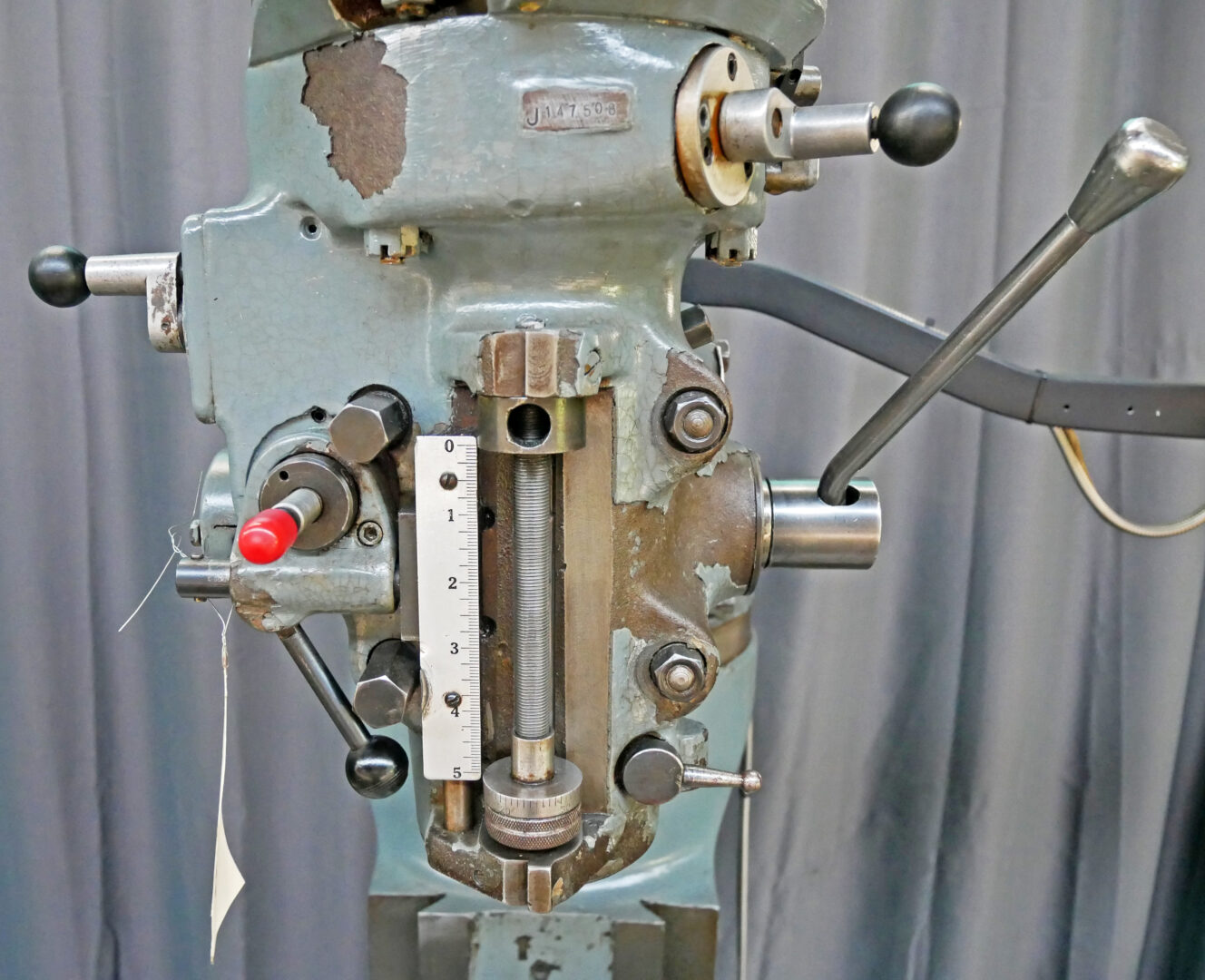

Quill: 5″

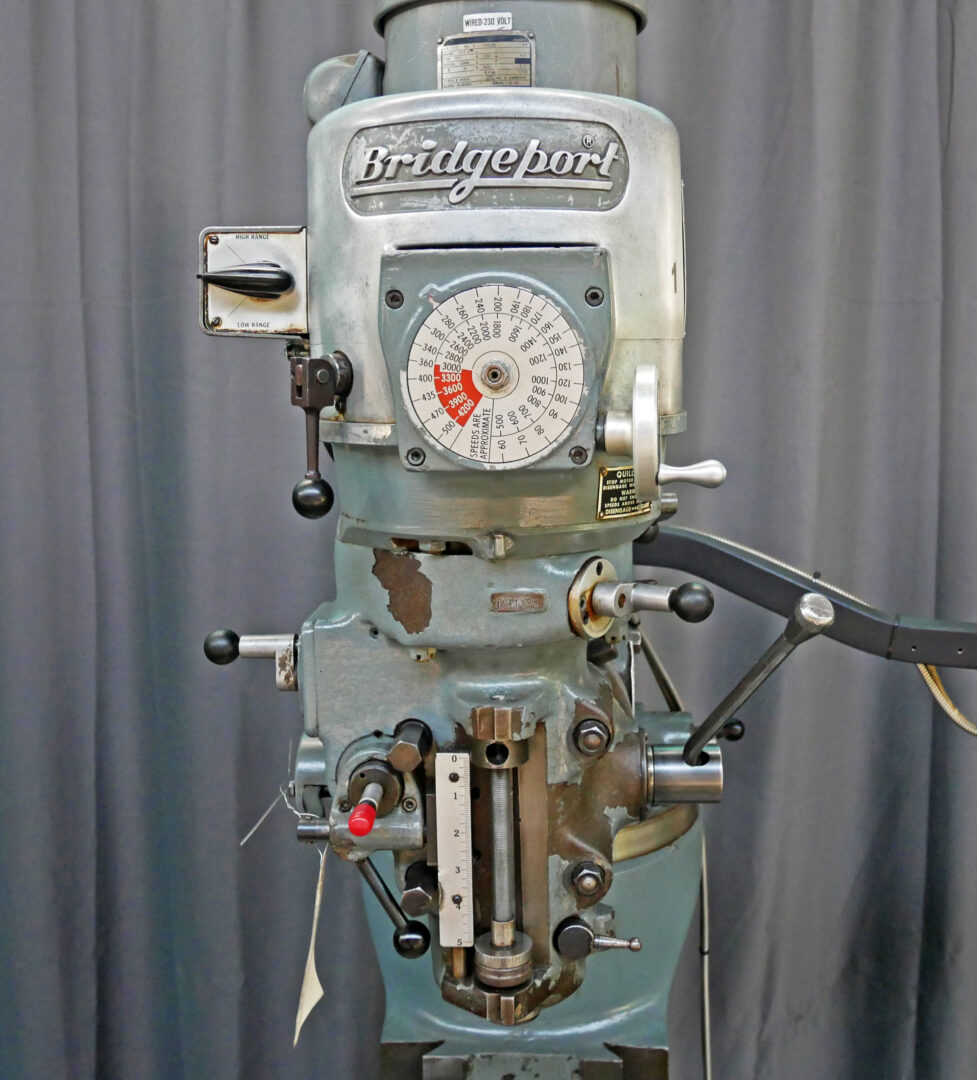

Spindle:

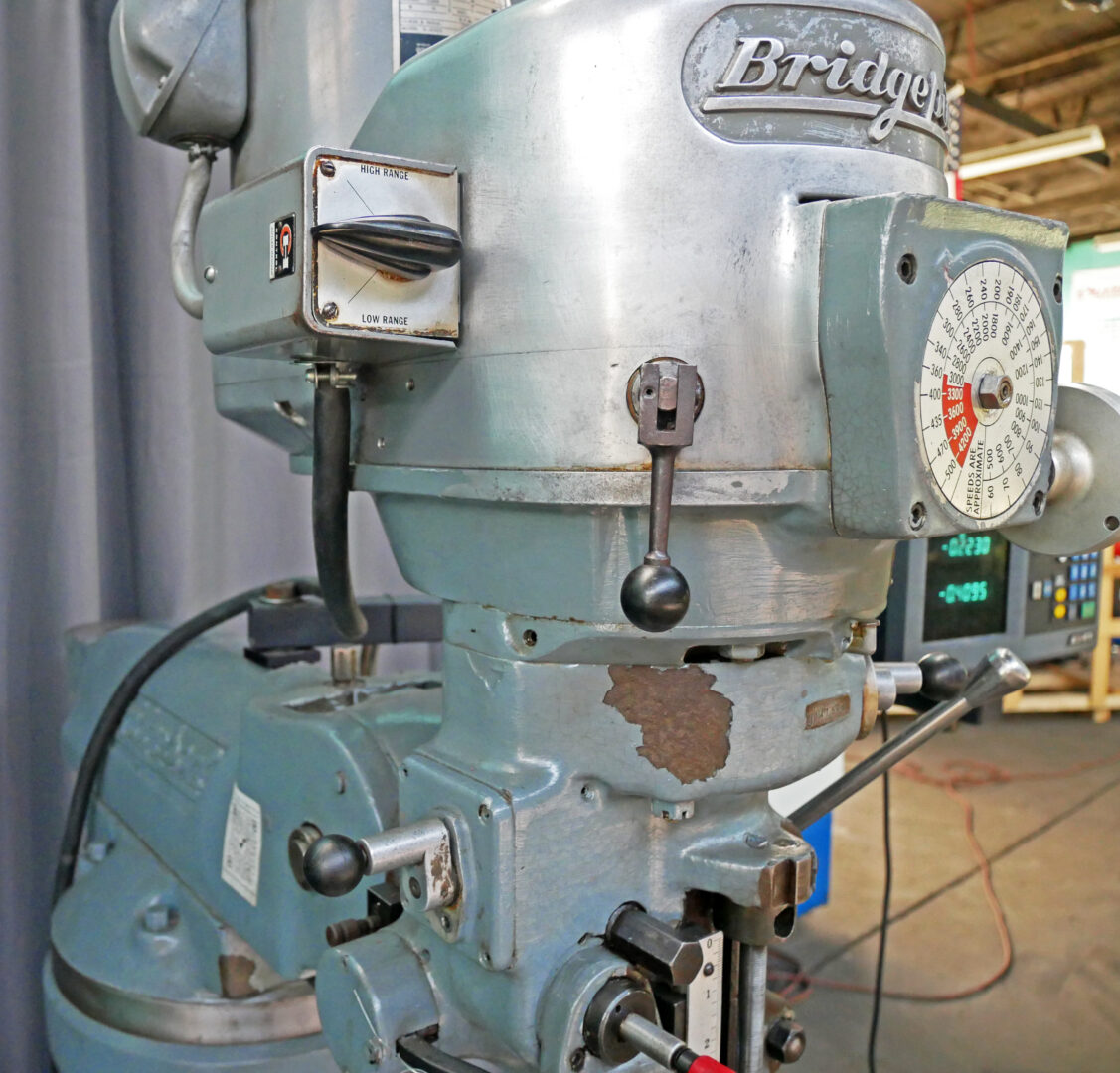

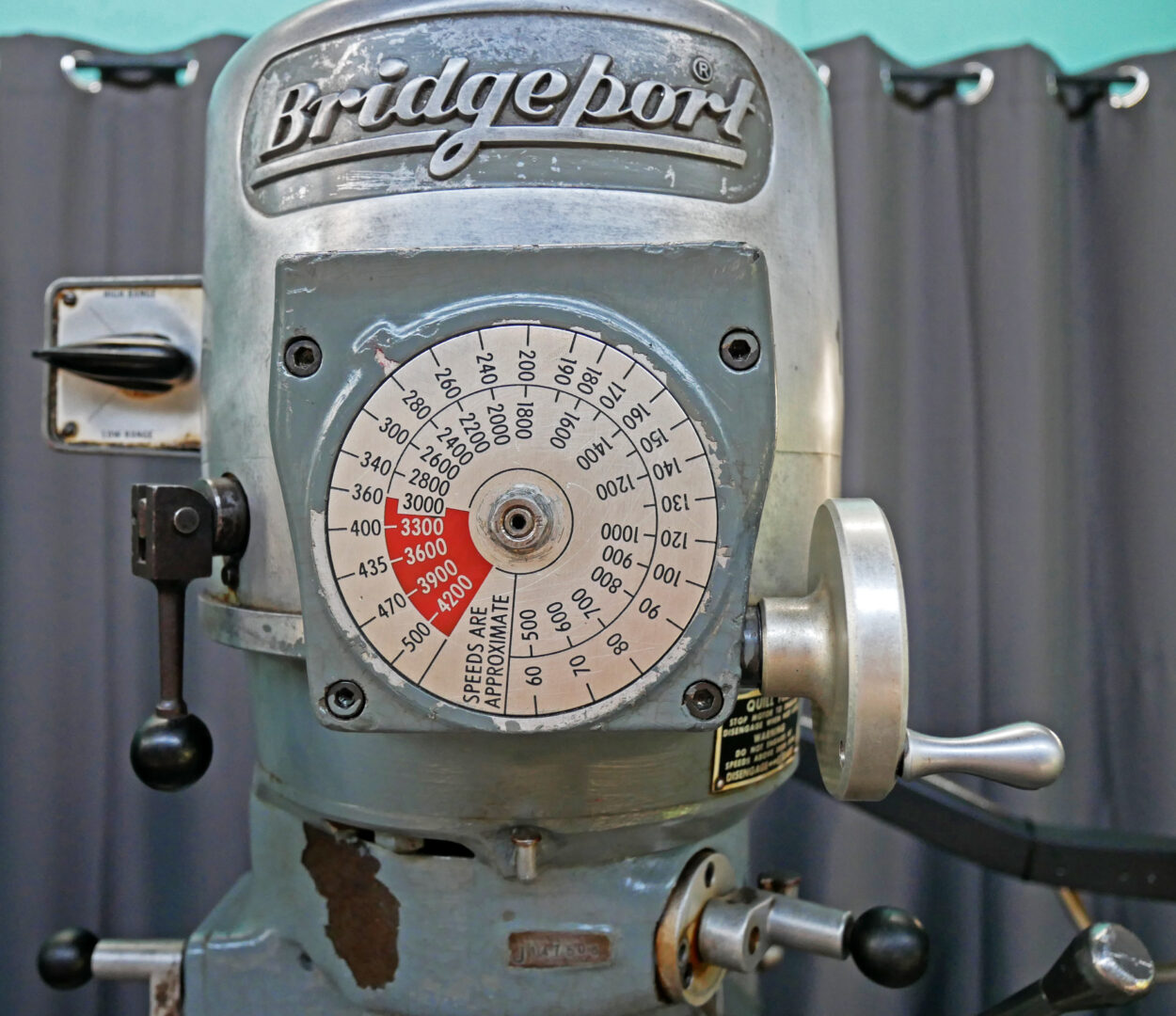

Speeds: 60 – 4,200 RPM
Spindle Type: R8

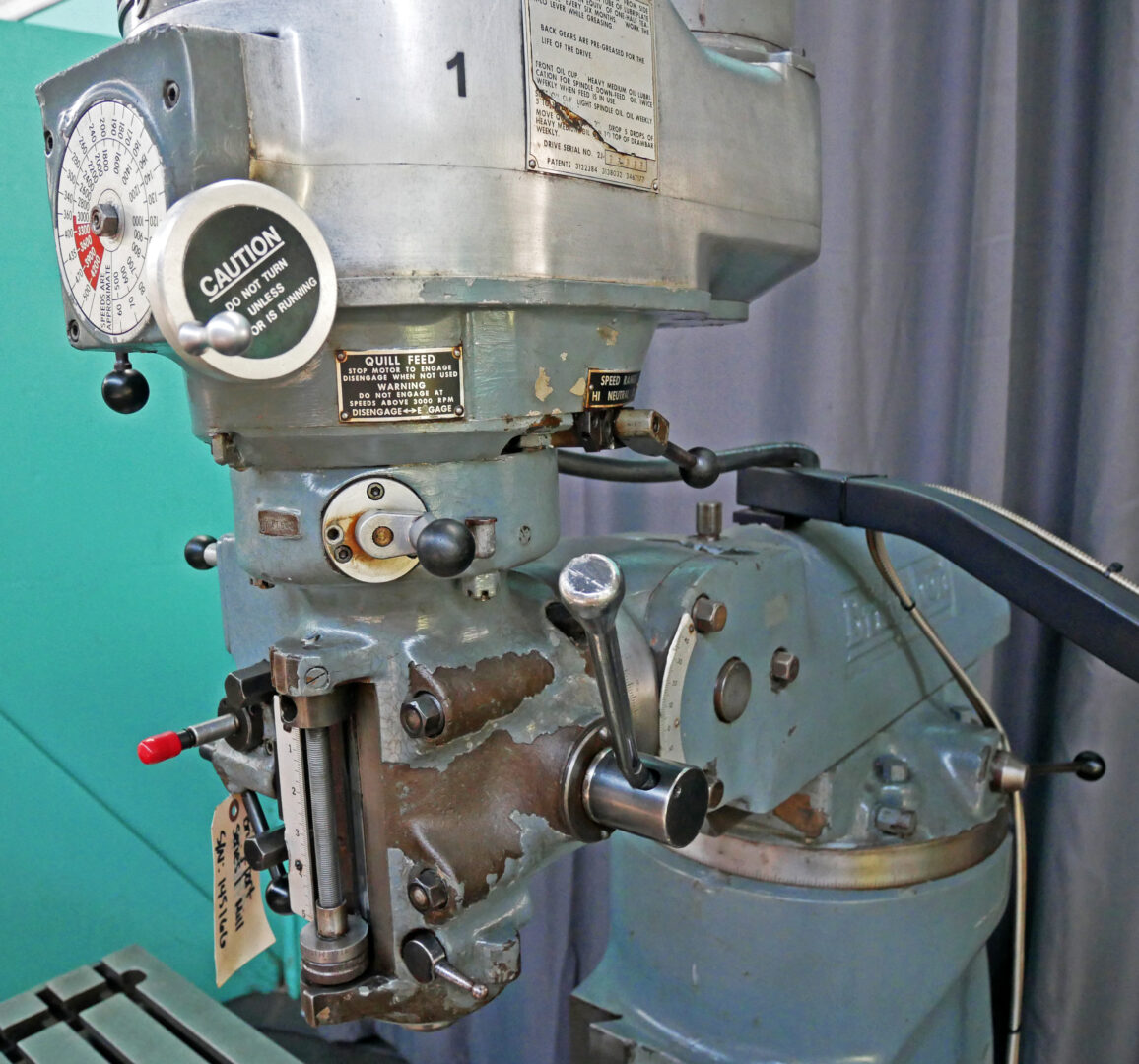

Power Feed: .0015″, .003″, .006″ (per Revolution)
Throat Distance: Min. 6 3/4″ – 18 3/4″ Max.
Max. Weight of Workpiece: 750 lbs.
Motor: 2 HP / 208v / 3ph
Equipment Included:

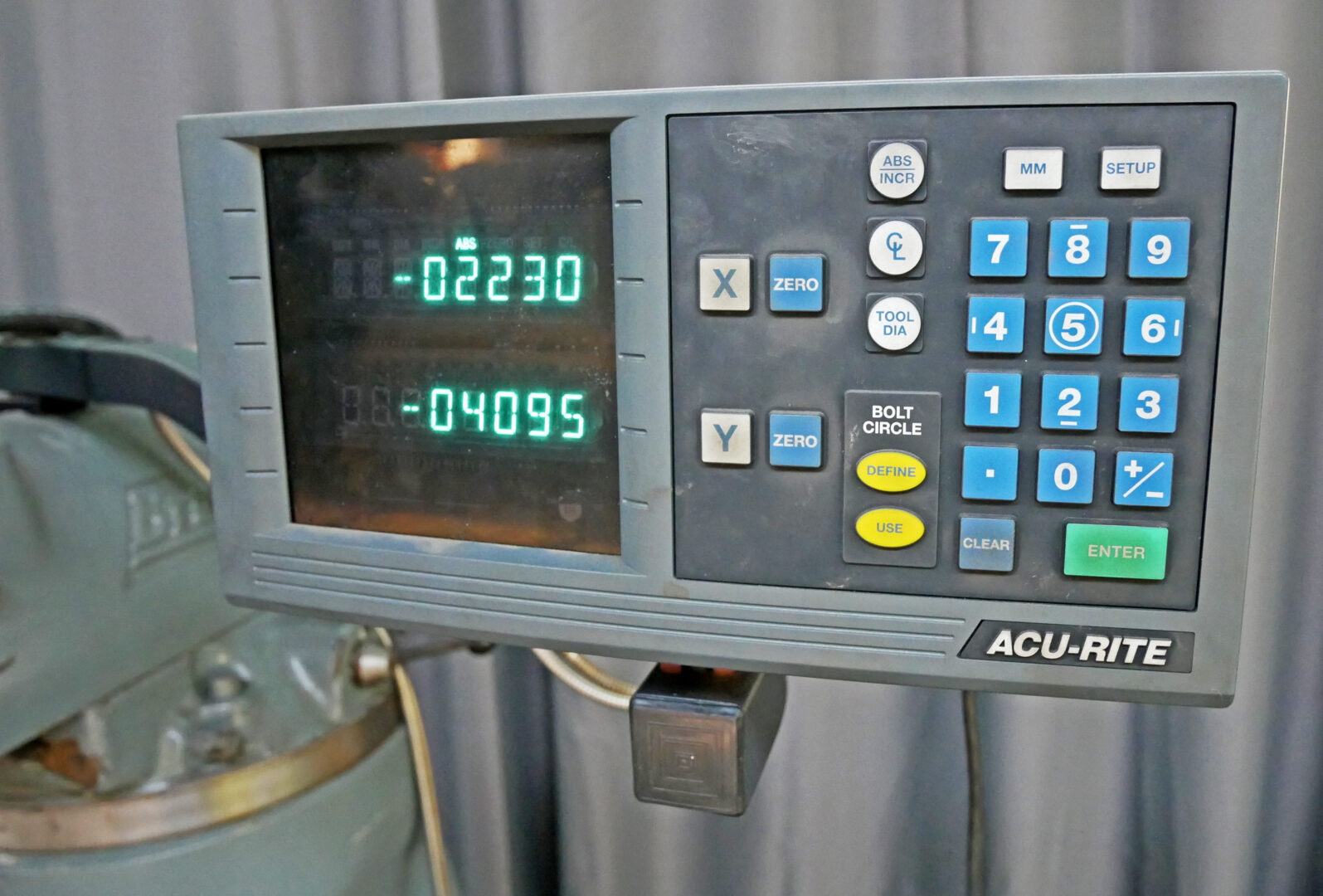

Acu-Rite 2-Axis Digital Readout

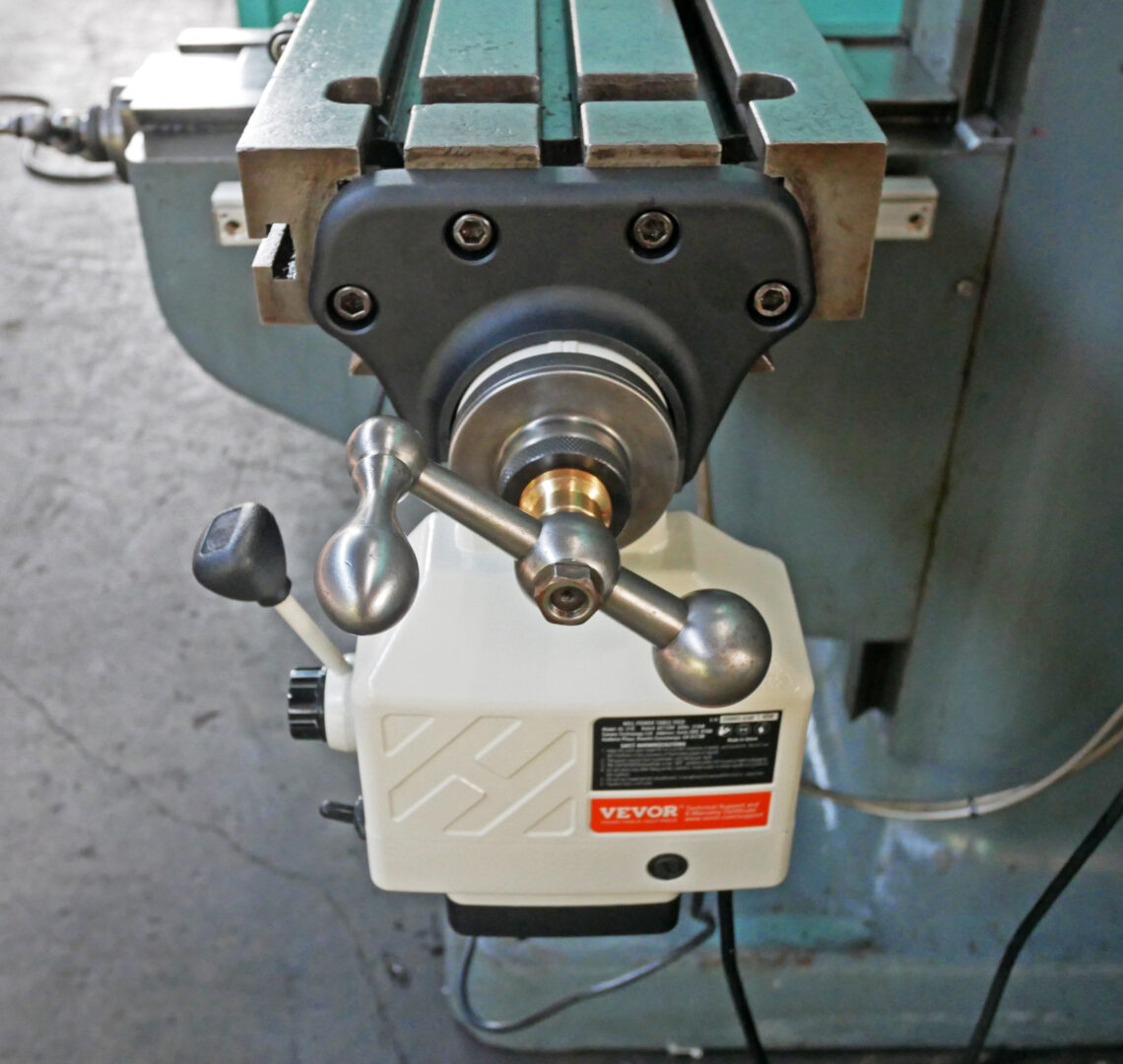

X-Axis Power Feed
Mechanical Specifications:
Dimensions: 84″ x 120″ x 87″ H
Weight: approx. 1,930 lbs.
FOB Our Baltimore, MD Warehouse
