Description

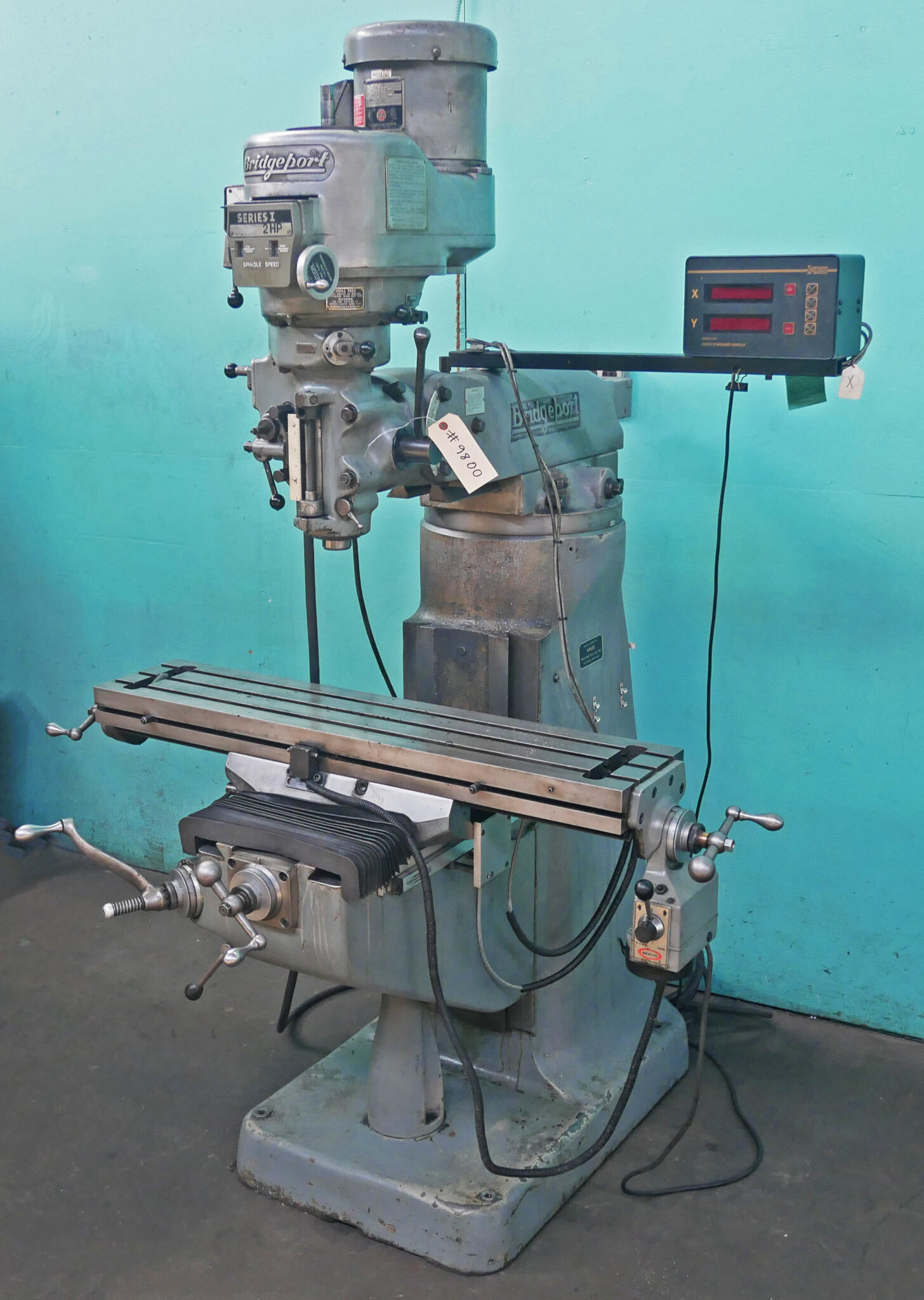

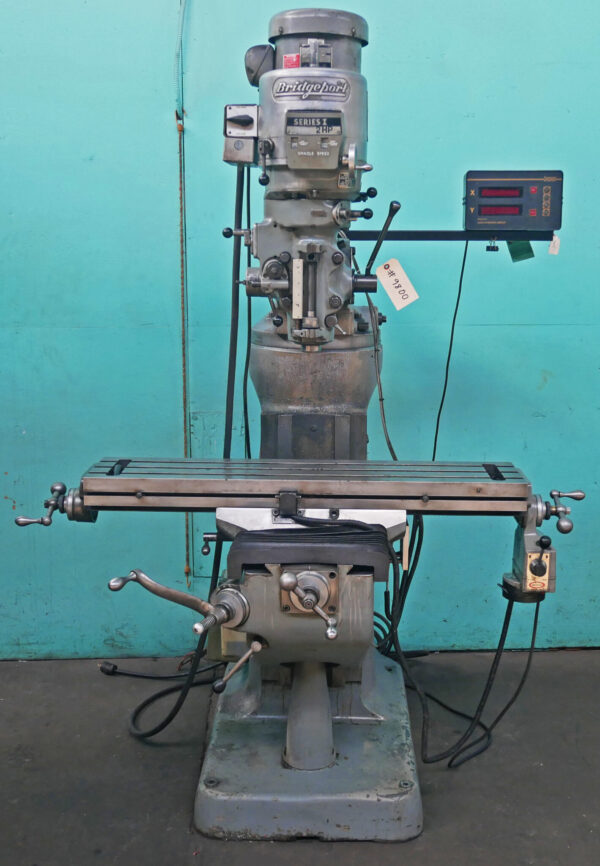

Bridgeport 9″ x 42″ Vertical Milling Machine, Series I
Inventory # 9800
Model: Series I
S/N: 200638
Specifications:

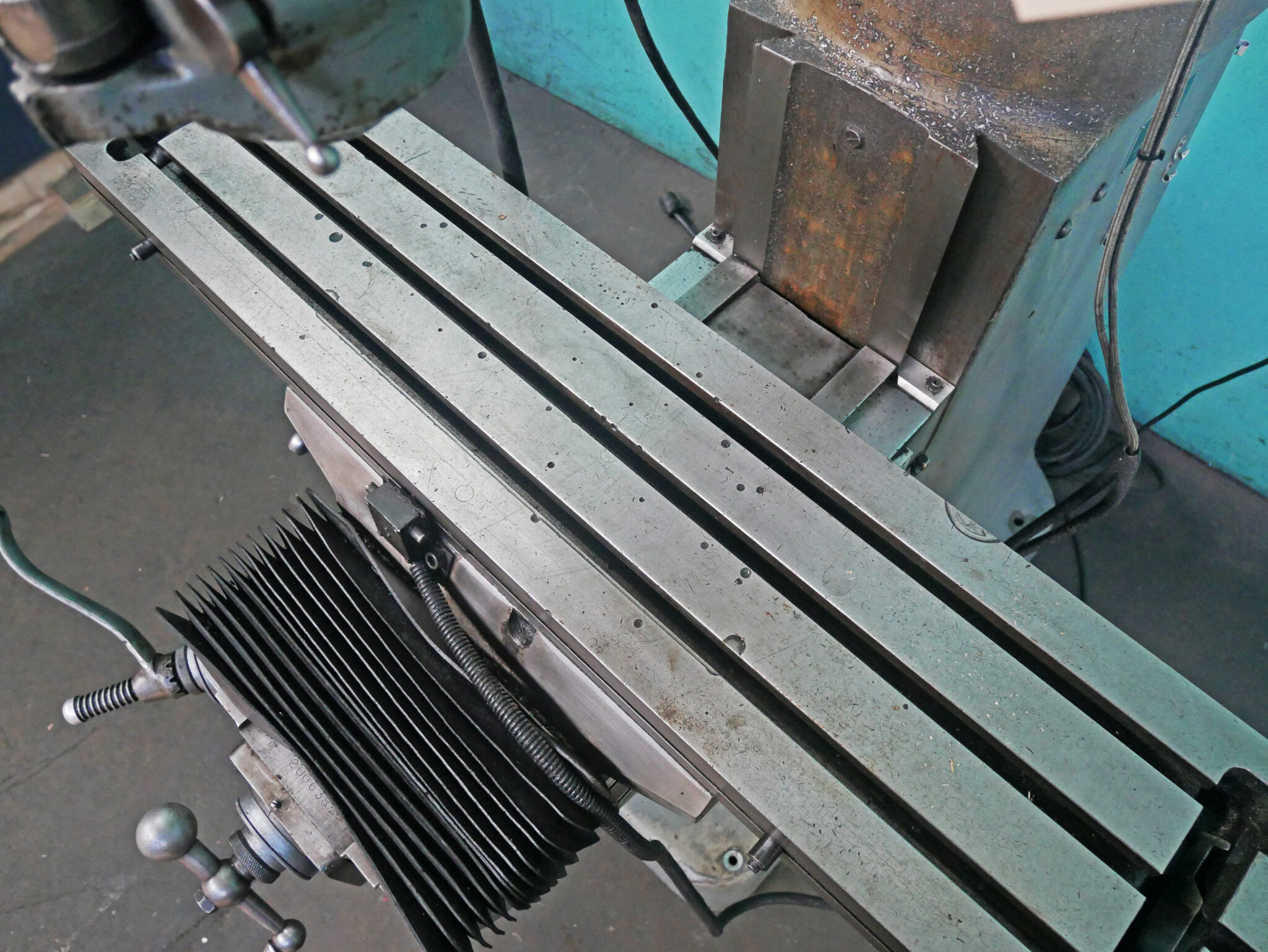

Table Size: 9″ x 42″
T-Slots: (3) 2 1/2″ Centers, 5/8″
X-Axis Travel: 30″
Y-Axis Travel: 12″
Z-Axis Travel: 16″
Ram Travel: 12″
Quill Travel: 5″
Spindle Speeds: 60 – 4,200 RPM (Variable)
Spindle: R8
Throat Distance: Min. 6 3/4″ – 18 3/4″ Max.
Max. Weight of Workpiece: 750 lbs.
Motor: 2 HP / 230v / 3ph
Equipment Included:
Sragon Gold 2-Axis Digital Readout
X-Axis Servo Power Feed
Chromed Ways
Way Covers
One Shot Lubrication
Bijur Spray Mist
Work Light
Mechanical Specifications:
Dimensions: 84″ x 120″ x 87″ H
Weight: approx. 1,930 lbs.
FOB Our Baltimore, MD Warehouse
