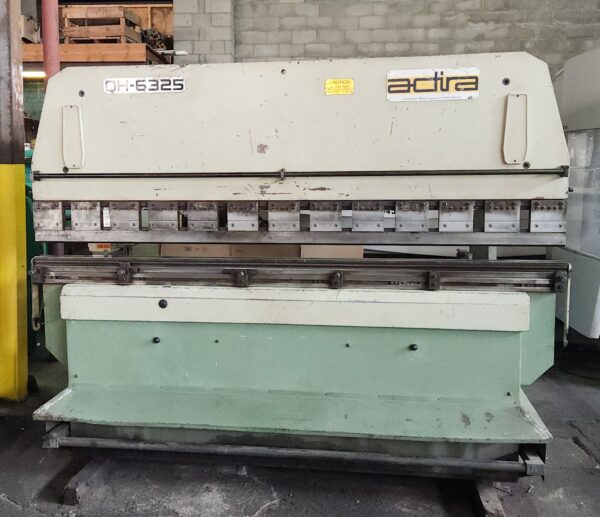

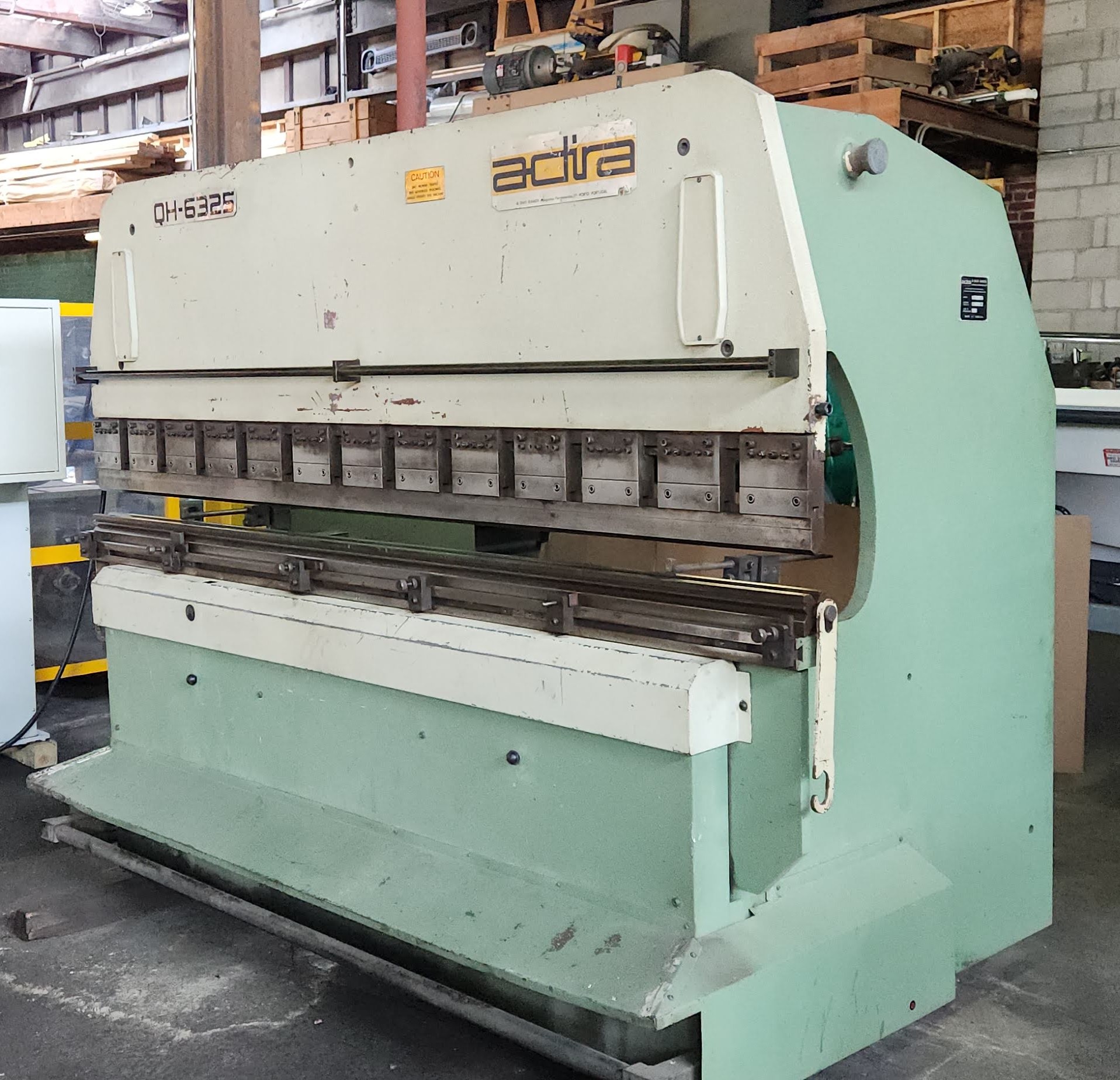

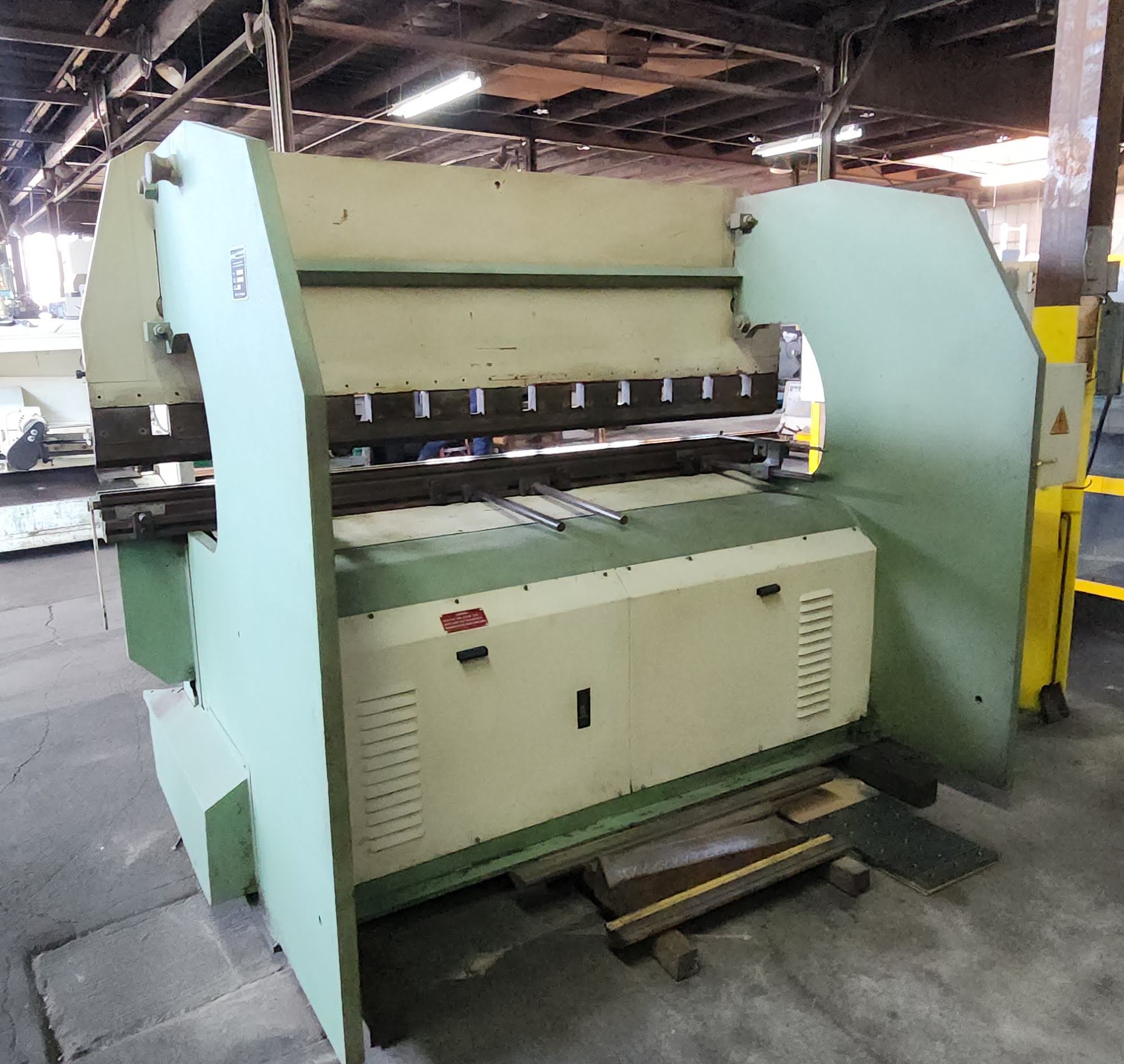

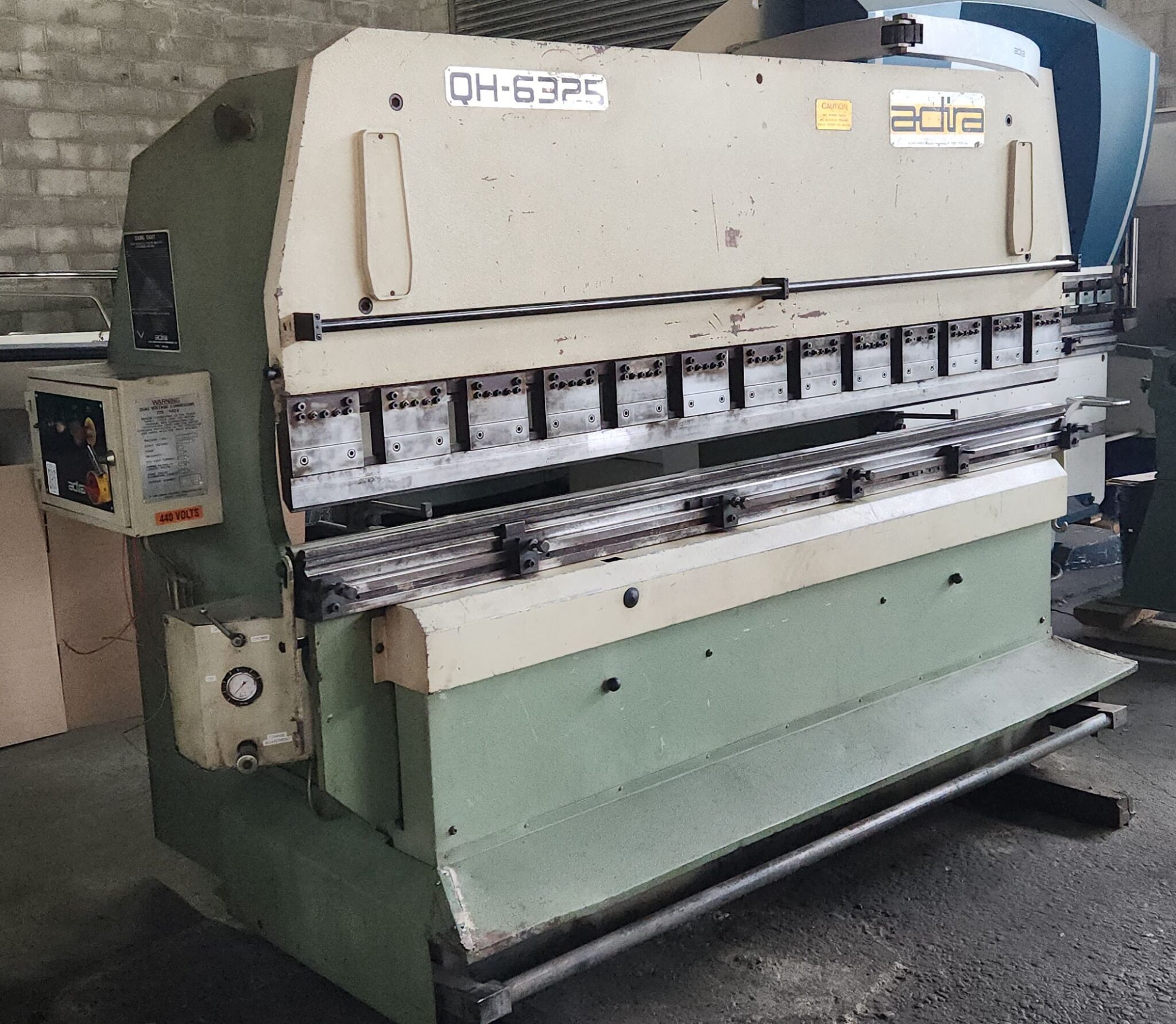

Adira 8′ x 70 Ton Hydraulic Press Brake, QH-6025
Inventory # 9766

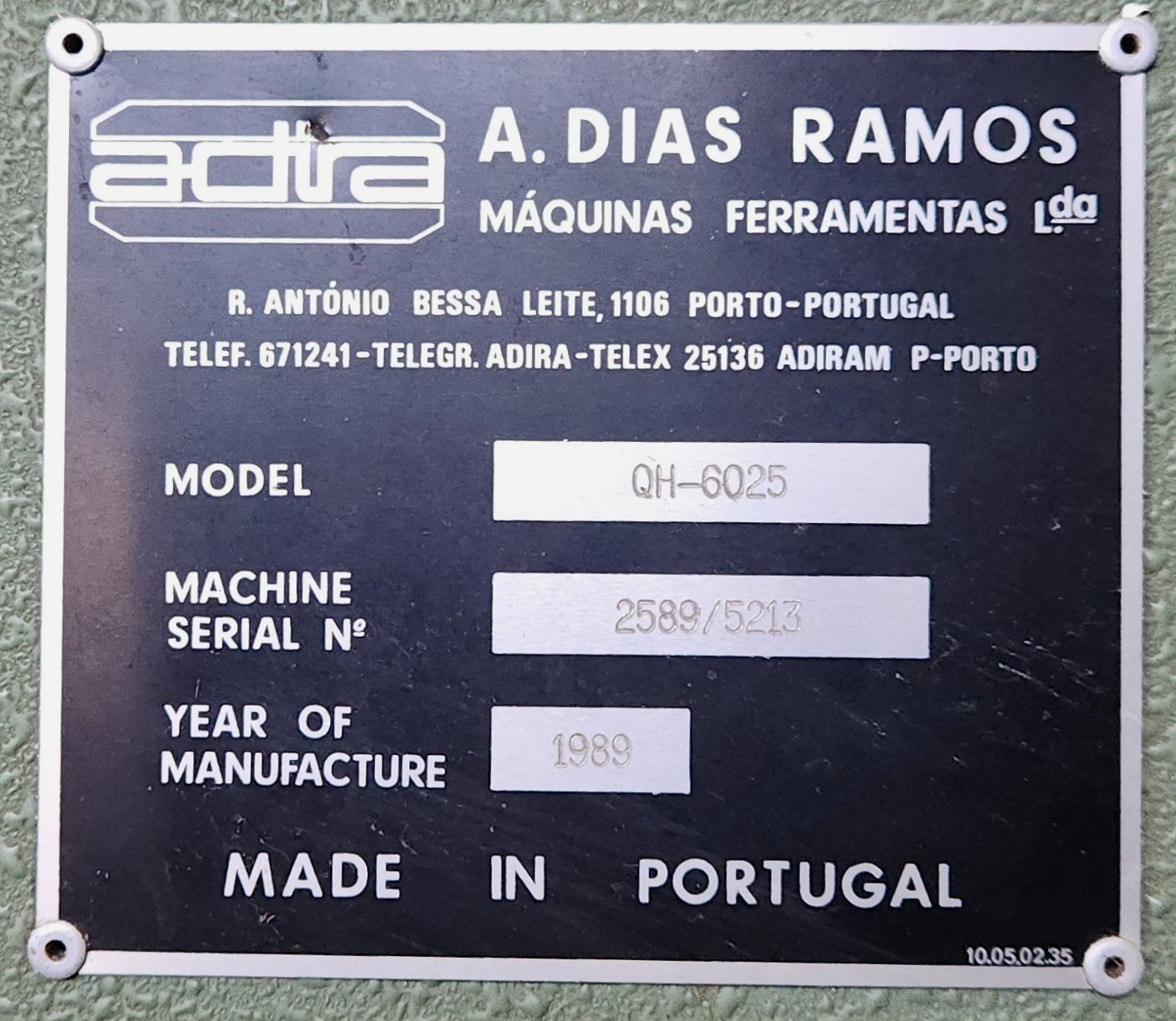

Model: QH-6025
S/N: 2589/5213
Specifications:
Capacity: 66 Tons
Working Length: 100 1/2″
Distance Between Housings: 80 1/2″
Motion Orientation: Upstroke
Throat Depth: 20″
Max. Stroke: 4″
Approach Speed: 3.30 IPS
Bending Speed: 0.40 IPS
Return Speed: 3.35 IPS
Repeatability of Ram: +/- .0004″
No. of Adjustable Punch Holders: 13

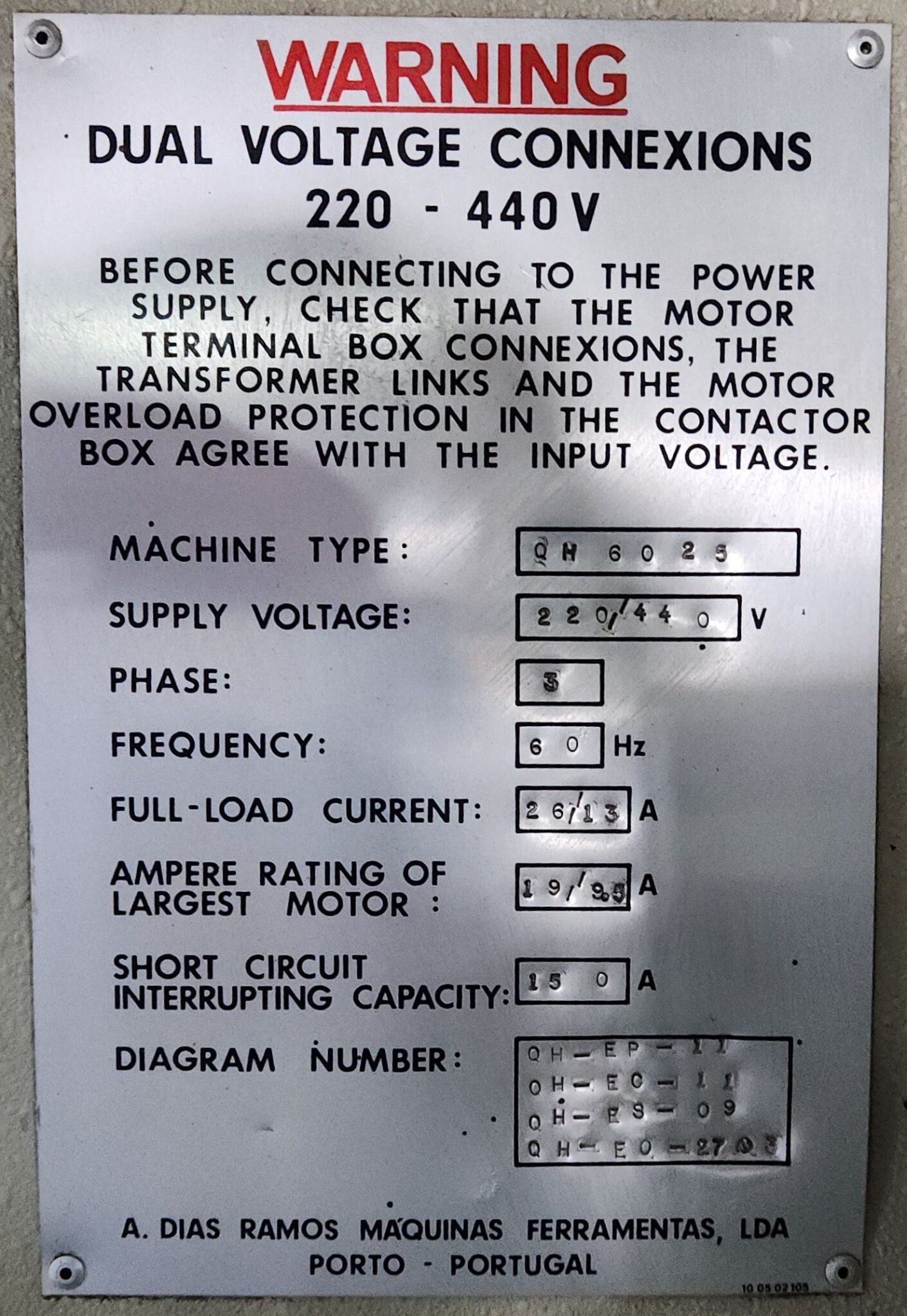

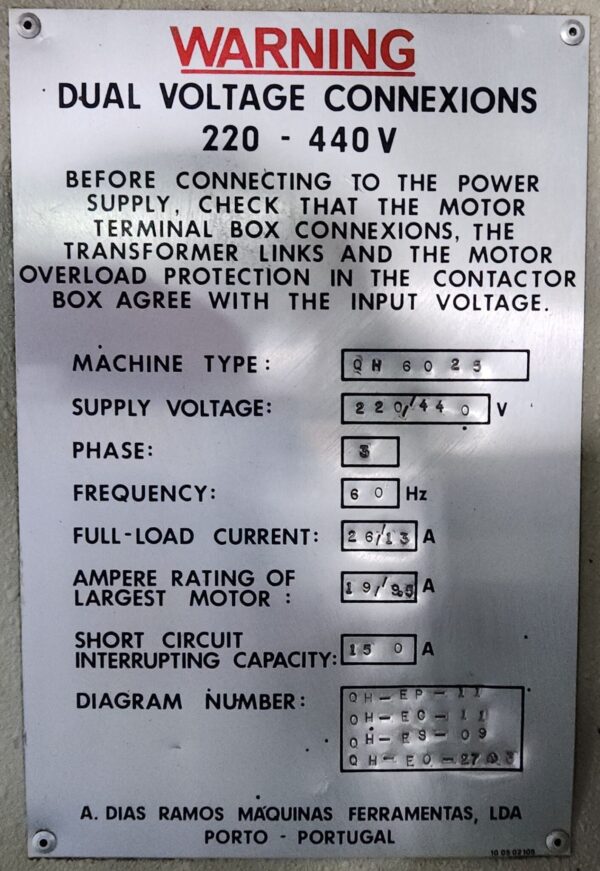

Motor: 5.9 HP / 220v, 440v / 3ph
Standard Features & Equipment Included:
Fabricated Steel Construction

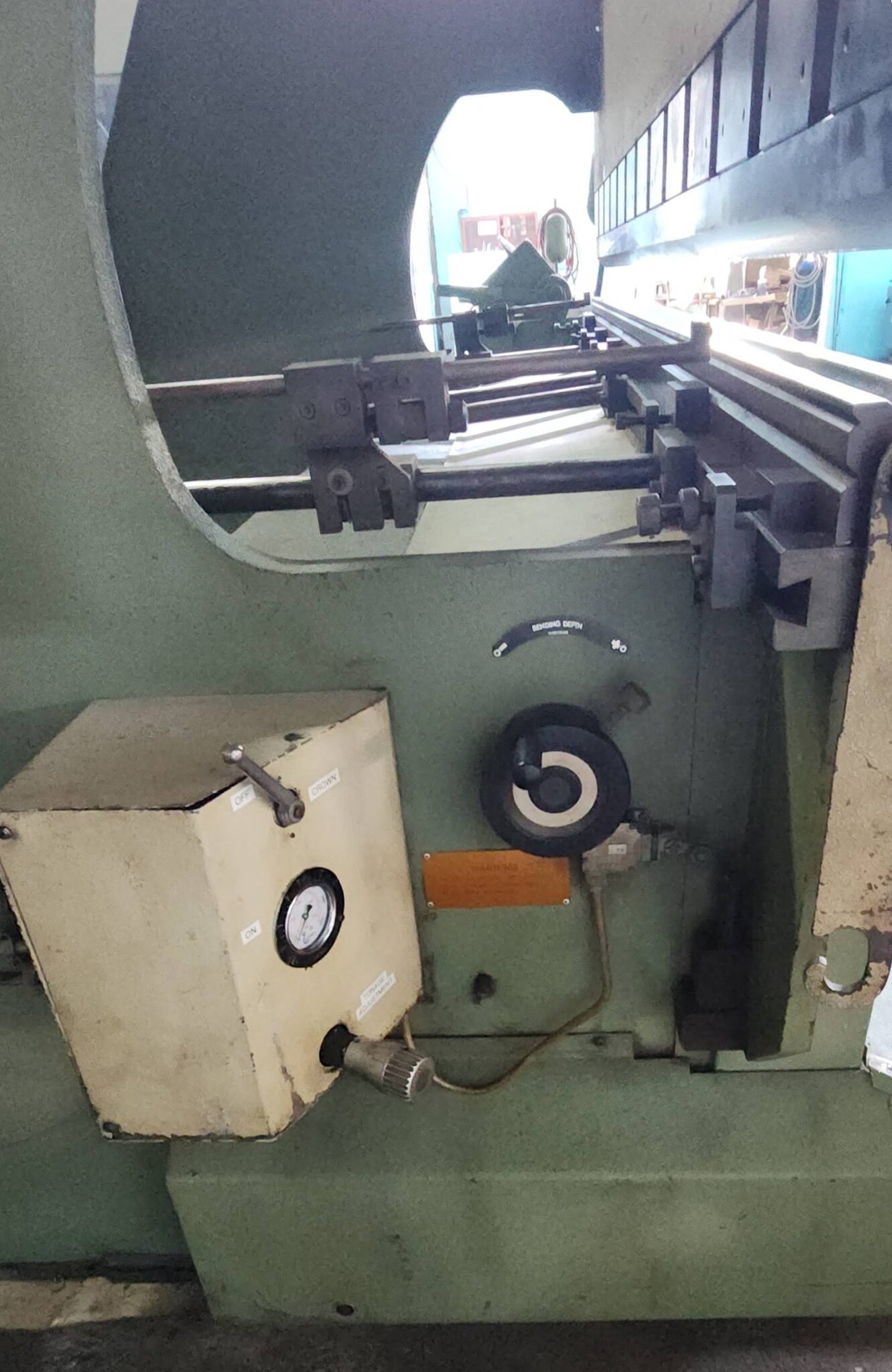

Handwheel Adjustment of Bending Angle
Mechanical Readout Counter for Bending Depth
Variable Speed Control Using Treadle Bar
Full-Length 4-Way Die and 90° Knife
Mechanical Specifications:
Weight: approx. 9,000 lbs.
FOB Our Baltimore, MD Warehouse
