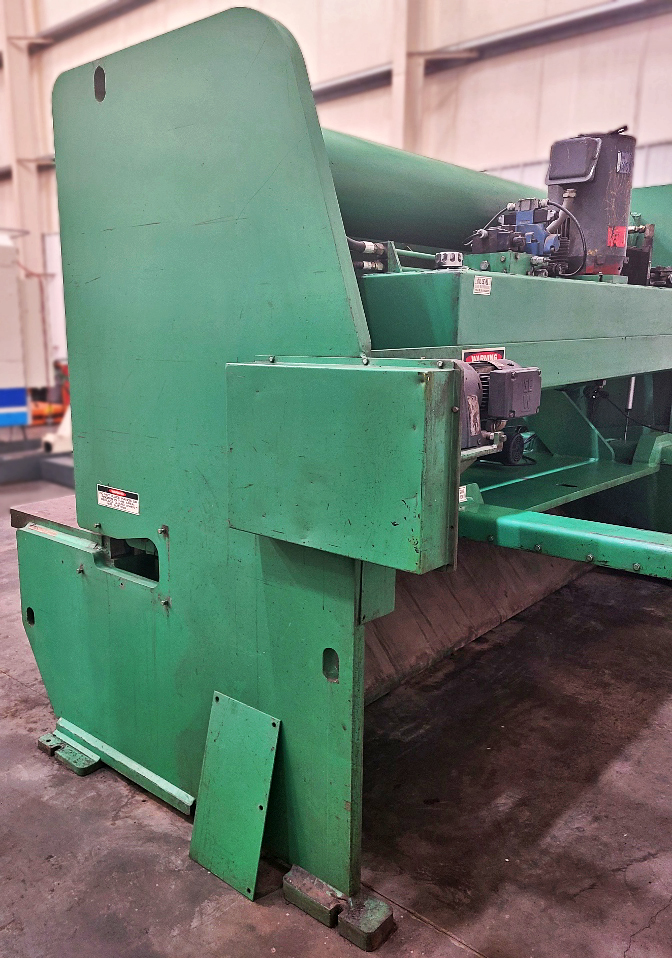

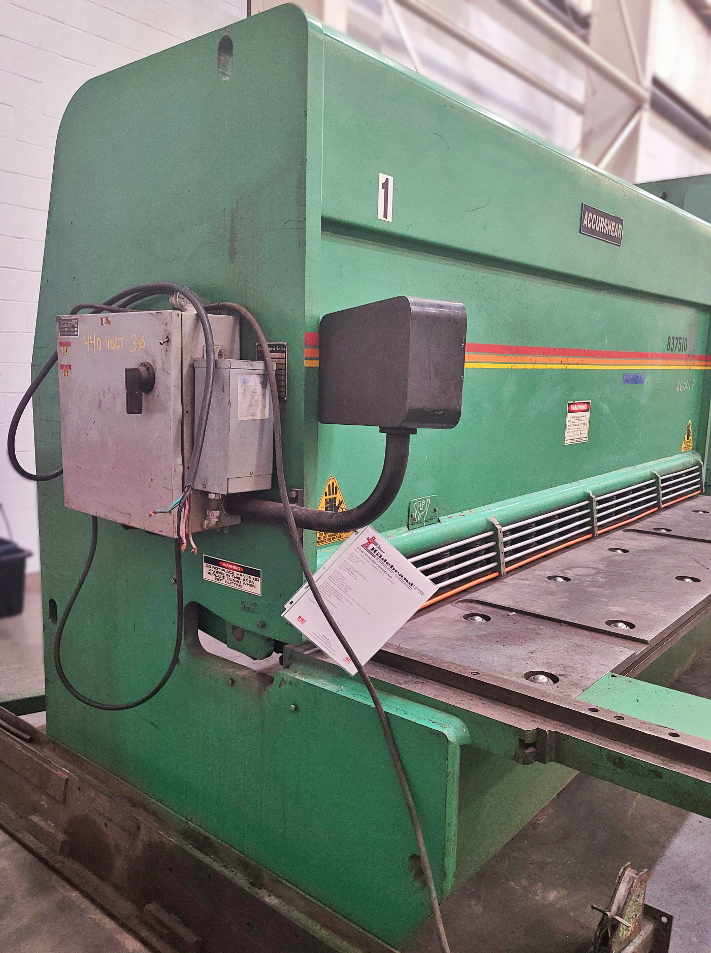

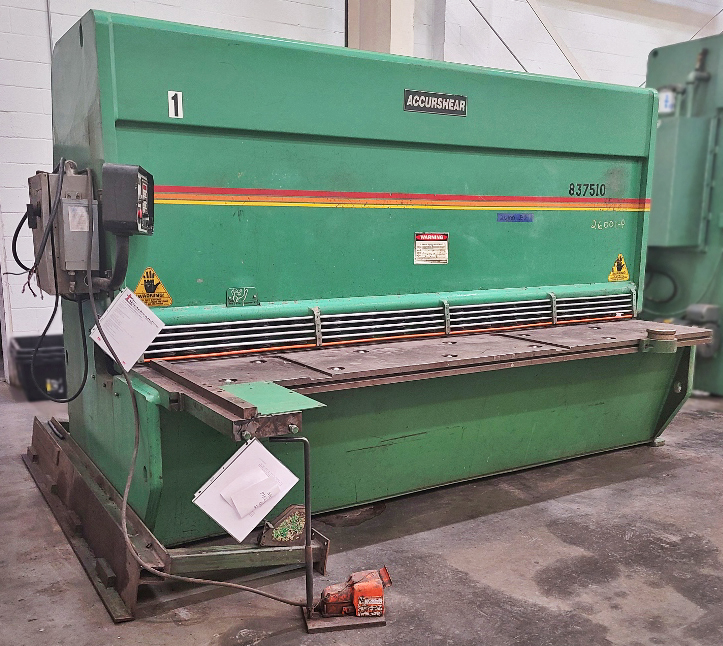

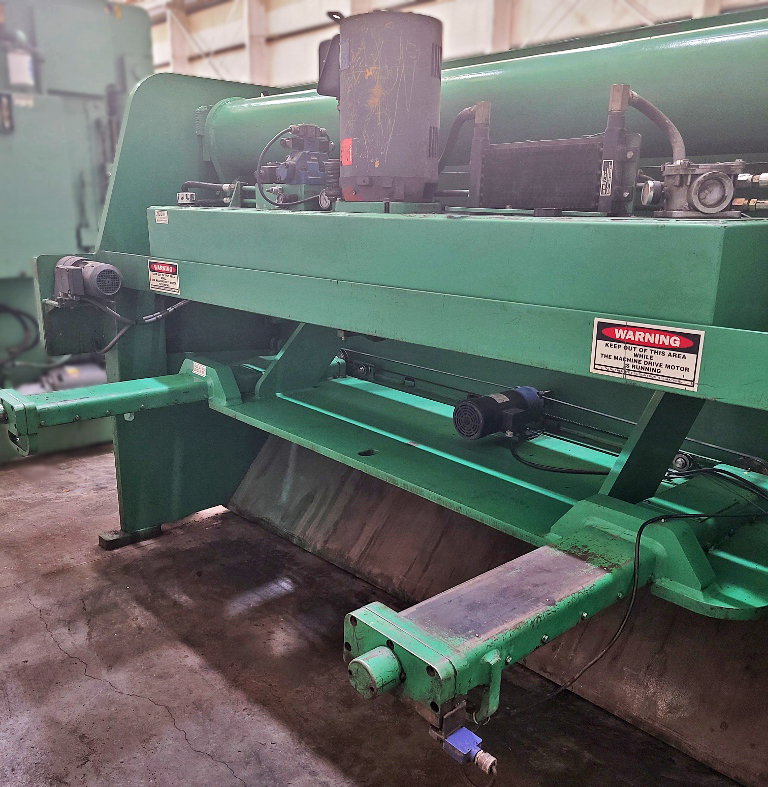

Accurshear 10′ x 3/8″ Hydraulic Shear, 837510
Inventory # 10052-P
Model: 837510
S/N: 3047 “1998”
Specifications:
Rated Max. Capacity: 3/8″ Mild Steel
Cutting Length: 120″
Number of Hold Downs: 16
Hold Down Tonnage: 16 Tons
Throat: 12″
Motor: 30 HP / 440v / 3ph
Equipment Included:

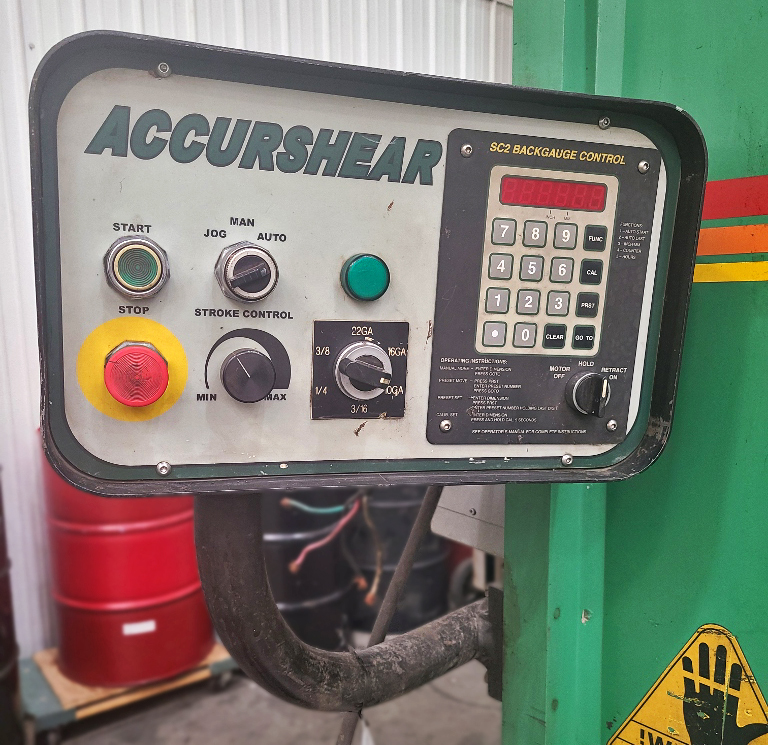

SC2 Shear Control
LED Readout in .001″ Increments
Variable Stroke Length Control
Mode Selector: Jog/Auto/Manual
Powered Blade Clearance Selector: 22 GA, 16 GA, 10 GA, 3/16″, 3/8″
4′ Squaring Arm with NON-OEM Extension Piece
48″ Optional Extended Back Gauge
Automatic Swing-Up Back Gauge Fence
Shadow Light Line
Ball Transfer in Table
4-Edge Blades
Table Mounted Protractor Attachment
Foot Pedal
Mechanical Specifications:
Dimensions: 132″ x 100″ x 91″ H
Weight: approx. 26,100 lbs.
FOB York, PA Warehouse
