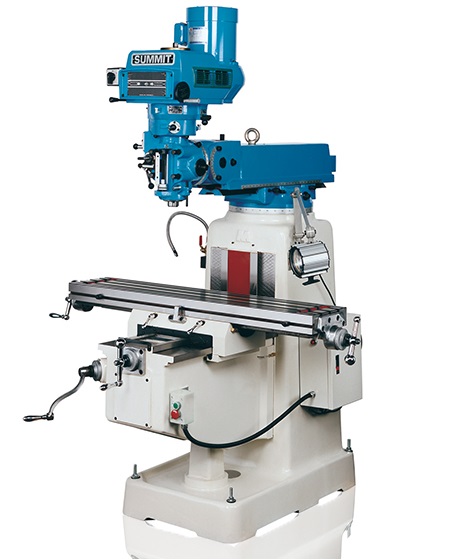

Summit 10″ x 50″ Vertical Mill, EVS-350B
Inventory # 8087
Model: EVS-350B
Description:
The rugged Summit V-Series vertical mills have been engineered and manufactured from the finest components with the operator in mind. All the controls are centralized for ease of operation in either hand or power feed mode. Movement of the head to various angles is easily obtained from the operator’s position
Specifications:
Spindle Speeds: 0 – 4,300 RPM (Variable)
Spindle Taper: R-8
Spindle Travel: 5″
Spindle Feed Range: .0015 / .003 / .006 IPR
Head Movement, Side to Side: +/- 90°
Head Movement, Front to Back: +/- 45°
Table Size: 10″ x 50″ x 3 1/8″
Table Feed, Longitudinal: 36″
Table Feed, Cross: 16″
Max. Weight of Work Piece: 850 lbs.
Rotation of Over Arm: 360°
Over Arm Adjustment: 22″
Spindle Nose to Table: 2 1/2″ – 17 1/2″
Motor: 3 HP
Standard Features:
Inverter duty, high-energy — high-efficiency motors for lower utility costs, save up to 35%
Fewer moving parts in the head for less maintenance and down time
Cogged drive belt to prevent belt slippage and extend tool life
Centrally located controls for ease of operation
Immediate response speed control (0 – full speed in 4 seconds)
Full range RPM selection. Tweak up or down to prevent chatter and prolong tool life
Electronic inverter controlled braking for reduced set-up time
“Turcite-B” inserted guideways for extended machine life
Complete electrics with low voltage controls for safer machine operation
Yaskawa compact AC inverter drive
Fan cooled electrical enclosure
Heavy “Meehanite” cast iron construction for excellent damping
Huge box ways on knee
One shot lubrication
R-8 collet set
Draw bar
Way covers
Operation and parts manual
Standard Equipment:
Built-In Coolant System
Halogen Work Light
Clamping Kit
Service Wrenches and Tool Box
Mechanical Specifications:
Weight: approx. 2,900 lbs.
Contact us for special pricing and availability
FOB Factory
