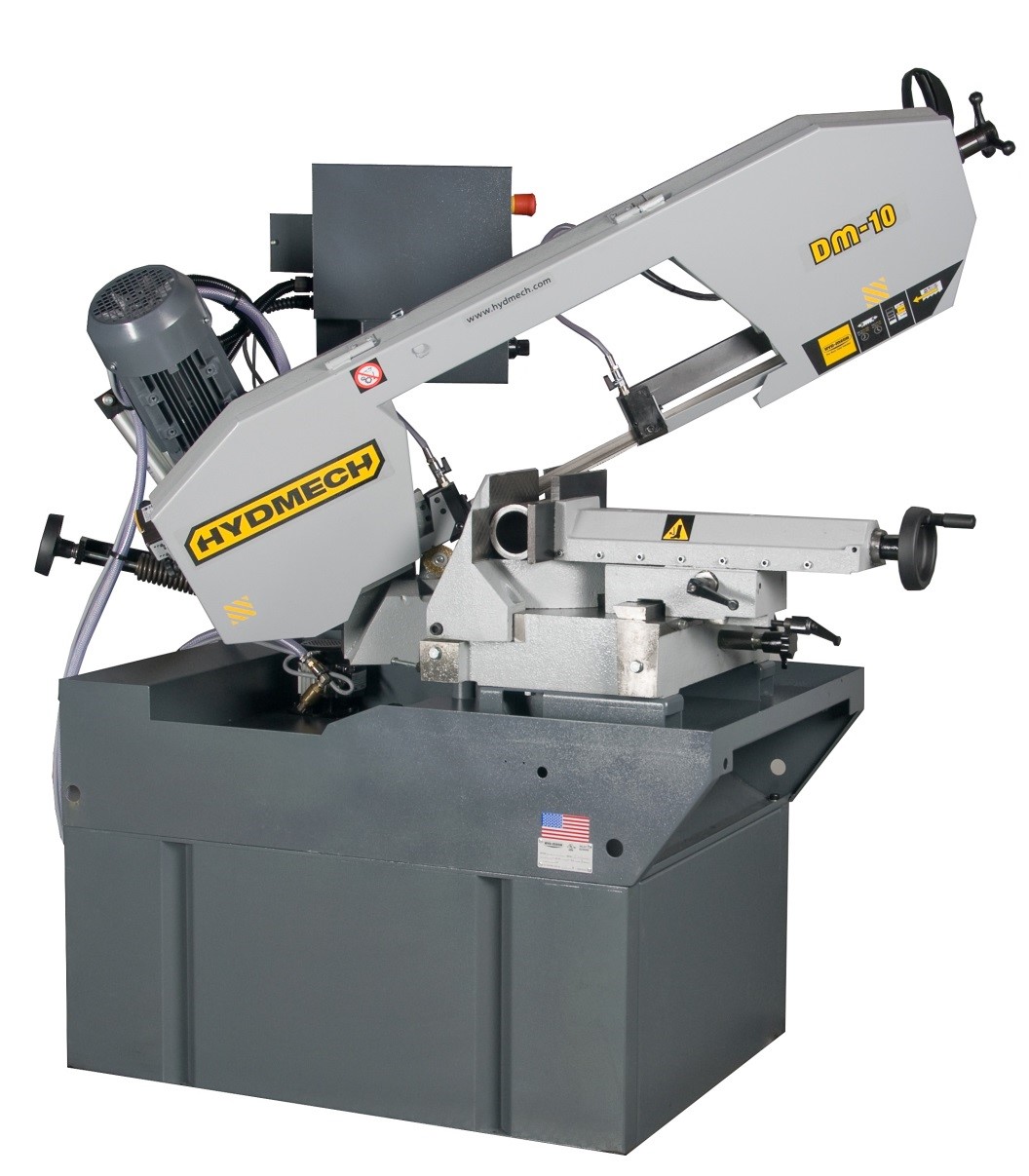

Hydmech 10″ Double Miter Horizontal Band Saw, DM-10 – New, In Stock, & Ready to Ship!
Inventory # 9474
Model: DM-10
S/N: 0000626
Specifications:
Capacity:
Rectangular:
@ 90°: 9 1/2″ x 11″
@ 45° Left: 6 1/4″ x 4 1/2″
@ 30° Right: 5″ x 4 1/2″
@ 45° Right: 8 1/4″ x 7″
Round:
@ 90°: 10″
@ 45° Left: 5 3/4″
@ 30° Right: 4″
@ 45° Right: 7 1/4″
Square:
@ 90°: 9″
@ 45° Left: 4 1/2″
@ 30° Right: 5″
@ 45° Right: 7″
Blade Size: 9′ 8″ x 1″
Blade Speed: (2) 118 – 236 SFM
Coolant Tank Capacity: 3.5 Gallons
Table Height: 34″
Motor: 2 HP / 208v / 3ph
Standard Features:
Manually operated, double miter, easy swing, and cast saw head
Quick-release cast-iron material vise with dovetail ways
Rotating table with a cut slot that moves in tandem with sawing head
Band tension indicator
Infinitely adjustable, gravity feeding, sawing head
Replaceable blade brush
Small footprint
Robust steel base
Easy-to-read angle scale
Adjustable guide arm
Pre-set, replaceable carbide guide inserts
True-direct drive – no belts or pulleys
Mechanical blade tensioning
Safety door interlocks
Flood coolant
Adjustable work-stop
Mechanical Specifications:
Dimensions: 35 1/2″ x 68″ x 65″ H
Weight: approx. 970 lbs.
FOB Our Baltimore, MD Warehouse
